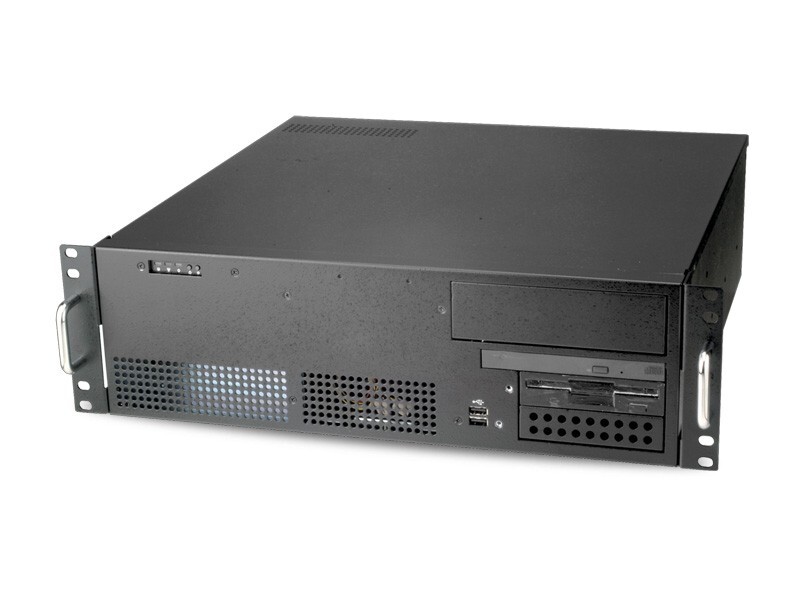

RMC-3A is designed with 17” depth to meet the requirements of Telecom, Military and Appliance Applications. Full length cards are still supported even at shortened depth. (Power, Motherboard are not included.) Chassis Only.

Key Features

• Front access dual USB ports
• Superior cooling through front air intake -
2 front fans & 2 rear fans
• 7 x full height expansion slots
• Short-depth design for space critical applications

Dimensions (W x D x H)• mm : 427 x 431.8 x 133
• inches :16.8 x 17 x 5.2Industry StandardEIA-RS310DMaterialHeavy-duty cold-rolled steelColorBlackCooling• Front : 2 x 60x25mm fans
• Rear : 2 x 60x25mm easy swap fansPower SupplyOption : 550W single PSUExpansion Slots7Front Panel• System power on/off
• System reset
• 2 x USB portsLED Indicators• Power status
• LAN activity
• Drive activitySystem BoardUp to 12”(W) x 9.6”(D) ATX compliant MBDrive Bays• External : 1 x 5.25”, 2 x 3.5”
• Internal : 2 x 3.5”
• Peripheral Drive : 1 x Slim DVD-ROMStorage Temperature0°C(32°F) ~ 50°C(122°F)Humidity5% ~ 95% non-condensingGross Weight (w/o PSU & Rail)• kgs : 12
• lbs : 26.4Package Dimension (W x D x H)• mm : 591 x 598 x 321
• inches : 23.3 x 23.5 x 12.6
