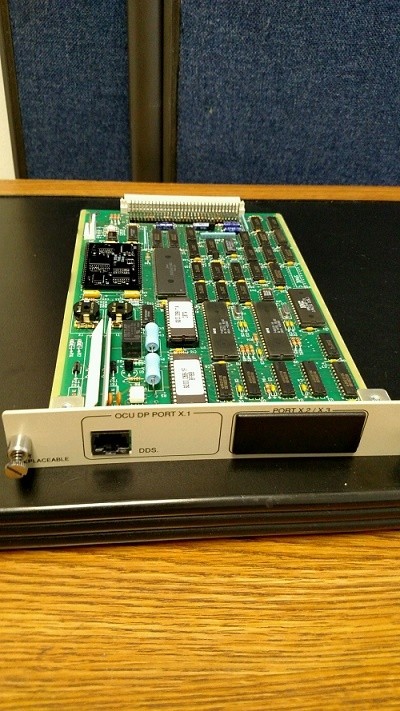

ADTRAN OCU DP OptionModule 1200068L1

Refurbished - 1 Year Warranty

The Office ChannelUnit Dataport (OCU DP) is one of the Option Modules available for use withtheADTRAN TSU 100. The OCU DP is an all-rate Office Channel UnitDataport. It provides signal conversionfrom any of the rates on thecustomer loop side to a single DS0 time slot. The OCU DP should beselectedfor use with the connection of DDS or Switched 56 DSU/CSUs orother equipment which utilizes a DDSinterface. The OCU DP provides aninterface between the T1 Multiplexer and a DSU/CSU over a 4-wireloop, up to18,000 feet in length of 26 AWG cable. This interface permits the combinationof DDS lines into asingle T1 stream.

FEATURES

• Operates using oneDS0

• 2.4, 4.8, 9.6, 19.2,38.4, 56, 64 kbps dedicated rates

• Supports Switched 56dial-up digital service

• Compatible with DDSsecondary channel services at rates ranging from 75 to 2400 bps, depending onthe primary channel rate

• 45dB range at allrates

• Transmit attenuationavailable for short loops

• OCU loopback towardTSU Network Interface (NI) (front panel, remote, inband)

• Sealing currentreversal to initiate loopback at the CSU (front panel, remote, inband)PRT/LCL offerirectional loopback toward the TSU Network Interface (NI) and theDSU/CSU

• Zero codesuppression

• Quality monitor/autoline disconnect

• Latching Loopbackenable/disable

• Selectablehardware/software algorithms for Switched-56 operation

• InterfaceConnector-RJ48C
