********Listing For One Each Item Only ********HPE PN/869854-B21
SKU#869854-B21
TAA SKU#878213-B21

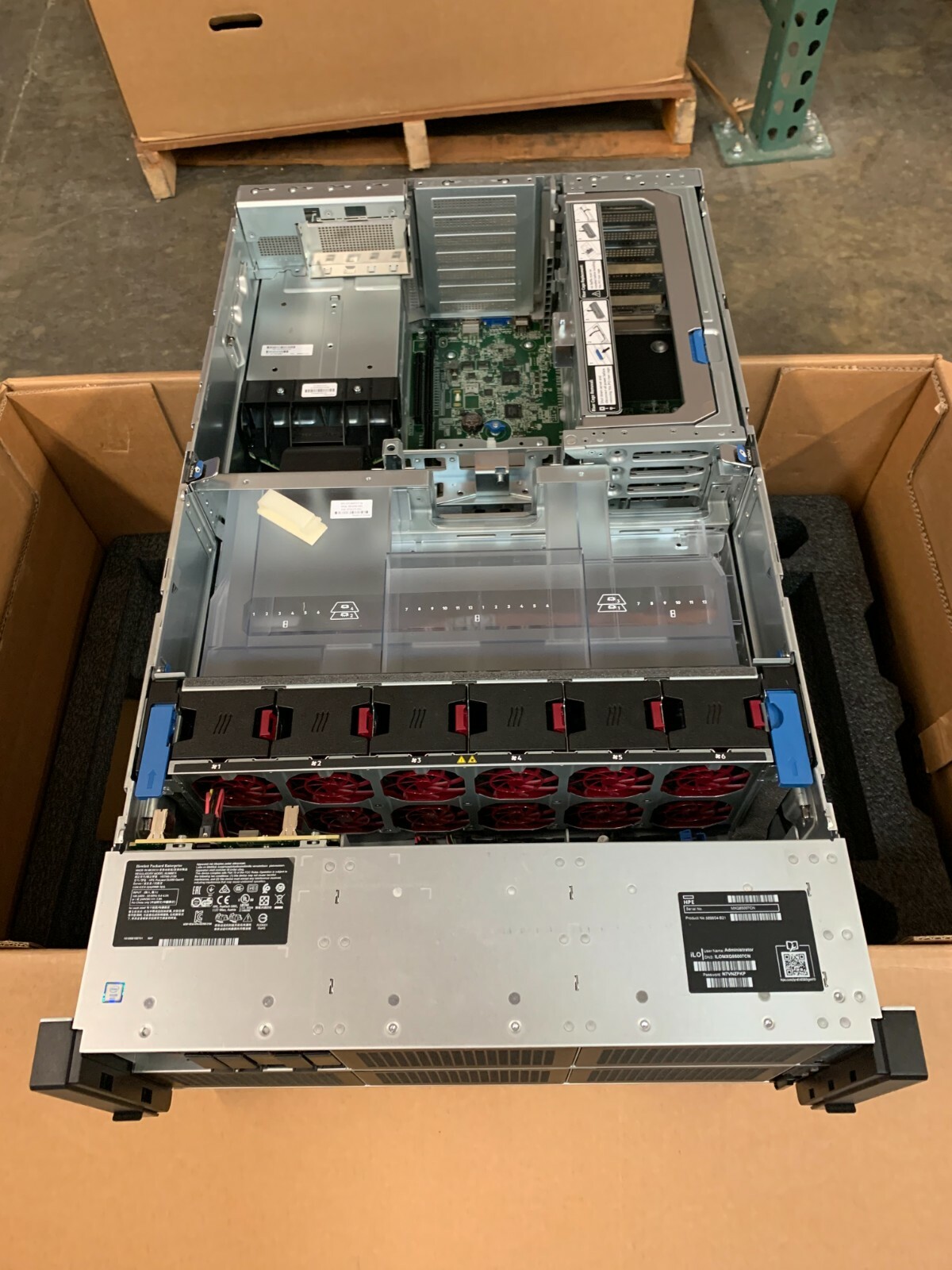

869854-B21 878213-B21 HPE ProLiant DL580 Gen10 8SFF 2.5"Configure-to-order CTOServer
HPE ProLiant DL580 Gen10 8SFF Configure-to-order CTO Server

Server description

HPE ProLiant DL580 Gen10 8SFF Configure-to-order Server

SKU Number

869854-B21

TAA SKU

878213-B21

Chipset

Intel® C621 Chipset

Processor

4U Server Chassis with 2 processor slots available; 4 processor configuration would require optional HPE

ProLiant HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21)

NOTE:If2ndgeneration Intel® Xeon® Scalable processors are being used (82xx, 62xx or 52xx series) the 4 processor configuration would require optional HPE DL5x0 Gen10 CPU Version 2 Mezzanine Board Kit (P07991-B21)

DIMM Slots

24 DIMM slots for RDIMM, LRDIMM DDR4 Memory;(6 DIMM slots per processor can be used for NVDIMMs or can be used for HPE Persistent Memory)

48 DIMM configuration would require optional HPE ProLiant HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21) and 4 processors

NOTE:If 2ndgeneration Intel® Xeon® Scalable processors are being used (82xx, 62xx or 52xx series) the 48 DIMM configuration would require optional HPE DL5x0 Gen10 CPU Version 2 Mezzanine Board Kit (P07991-B21)

Network Controller

None. FlexibleLOM slot (various options can be chosen for networking; NIC cards also available via expansion slots)

Storage Controller

HPE Smart Array S100i

NOTE:HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled. For enabling, please select HPE FIO Enable Smart Array SW RAID (784308-B21).

PCIe

None. Must order a primary riser (16 PCIe 3.0 slots are available if all processors are chosen and the primary, secondary and tertiary Riser Kits have been installed)

Drive Cage - included

8 SFF in Box 1, no drives

Fans

hot plug fans, (n+1) redundant

Management

HPE iLO Standard with Intelligent Provisioning and (Standard); HPE OneView Standard (requires download) and HPE iLO Advanced (require additional licenses), HPE OneView Advanced (require additional licenses)

microSD Slots

1 microSD card slot (internal)

TPM Connector

1 Trusted Platform Module (TPM) connector

UEFI

BIOS Legacy mode (field configurable) or Unified Extensible Firmware Interface (UEFI) mode (default)

USB

7 USB ports (2 USB 2.0 and 5 USB 3.0), Optional 2 front available via universal media kit upgrade

Video Ports

2 video ports (1 front optional via the Universal Media Kit upgrade option, 1 rear)

Rails

HPE DL580 Gen10 4U Rail Kit with CMA

NOTE:Trade Agreement Act (TAA) and means that these SKUs are manufactured in countries that are part of the global trade act. This provides greater security assurance that these servers come from countries that signed the agreement act. This is particularly important to HPE customers in our federal sector and other verticals that have concerns about the country of origin for our solutions.

NOTE:TAA chassis are only orderable in North America and Canada.

NOTE:PCIe slot availability is dependent on the number of processors and riser kits installed. Please refer to the "Expansion slots" section for more details.

NOTE:For the DL580 Gen10, the number of processors can be one, two, three or four installed. For three or four processors, theNOTE:DL5x0 Gen10 CPU Mezzanine BoardKit(872222-B21)is required if1stgeneration Intel® Xeon® Scalable processors are being used.

NOTE:For four processors, the HPE DL5x0 Gen10 CPU Version 2 Mezzanine Board Kit (P07991-B21) is required if 2nd generation Intel® Xeon® Scalable processors are being used.

NOTE:This applies to CTO configurations, field upgrades may differ depending on field configuration.

Condition: Refurb in HPE BOX with 30 days warranty .
Note:Lead time may take 4 weeks. please check us detail lead time before purchasing if have rush order.
NOTE:Pictures may or may not be actual item, if need actual pictures or have any other question please send us a message .
