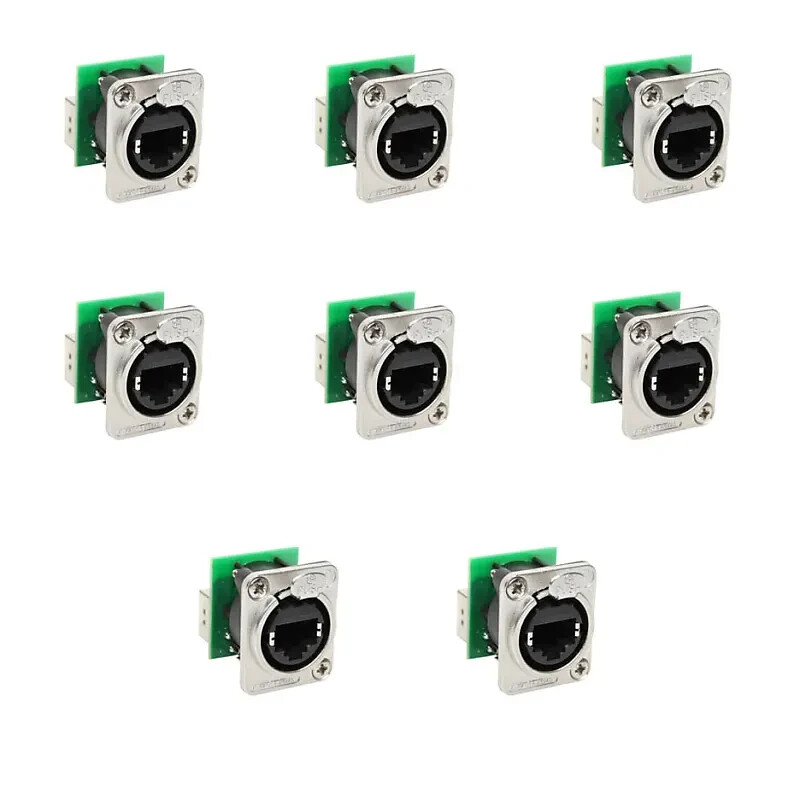

This listing is for 8 New Neutrik NE8FDP Ethercon Pass-Through Panel Mount Connectors

• Accommodates NE8MC or any standard RJ45 plug
• Approved latch lock system
• Mountable from the front or rear of the panel
• Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard

NE8FDP

RJ45 feedthrough receptacle, D-shape metal flange with the latch lock. Mounting screws included.

The etherCON Series is a ruggadized and lockable RJ45 connector system, optimized for proaudio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

NE8FDP Specifications:

• Gender: Female
• Contact Resistance: < 10 mΩ (inner)
• Dielectric Strength: 1 kVdc
• Insulation Resistance: > 0.5 GΩ
• Rated Voltage: 50 V
• Panel Thickness: Max = 4 mm
• Wiring: Feedthrough
• Mounting Direction: Front & Rear
• Chassis Shape: D
• Shell: Zinc Diecast
• Shell plating: Nickel
