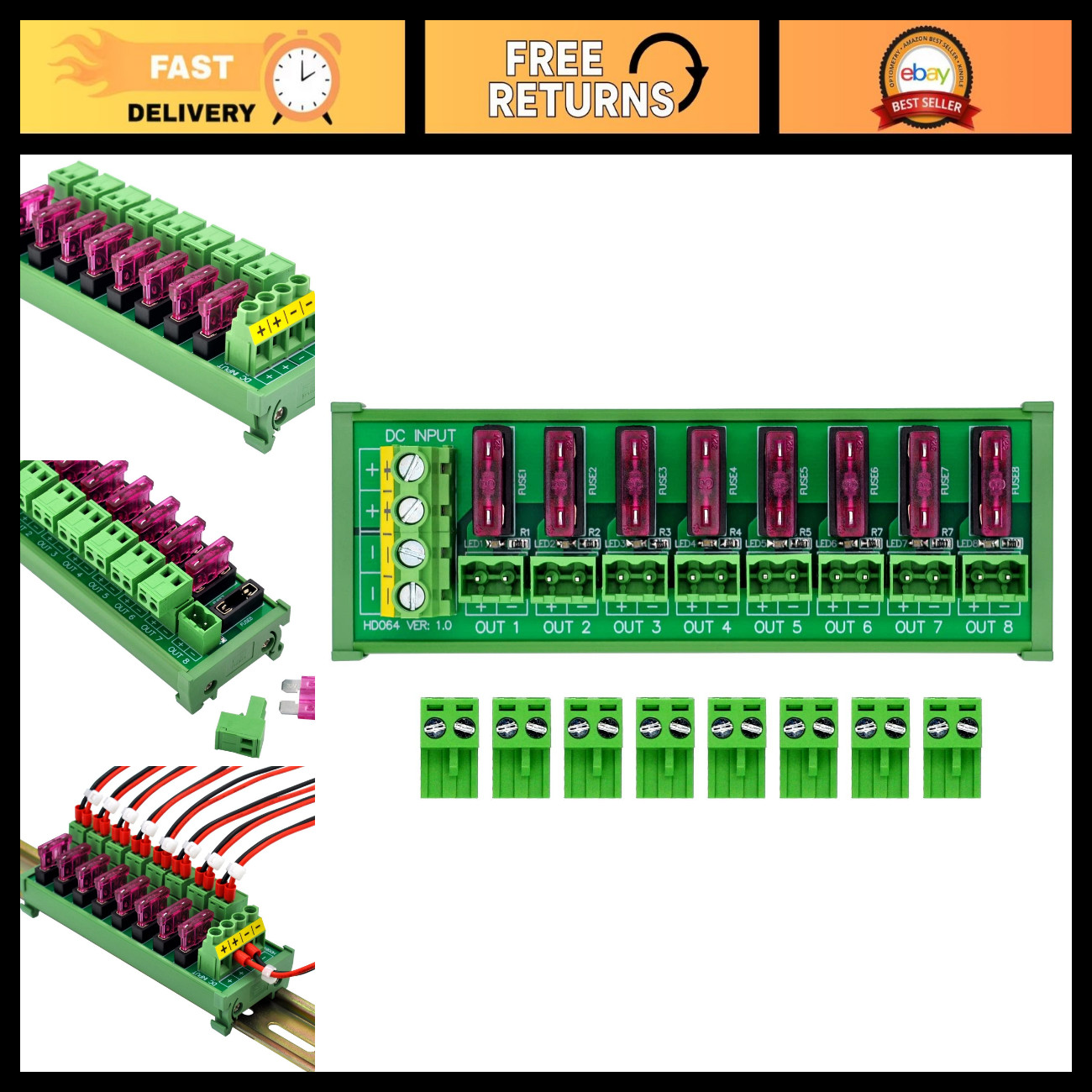

8 Channel DIN Rail Mount Terminal Block Power Distribution Fuse Module 5-32V
Price: US $56.99
High-Performance Power Distribution Terminal Block
Experience reliable power management with our advanced terminal block designed for efficiency and safety. Below are the key features and benefits:
Key Features:
Operating Voltage: DC 5 to 32V
Maximum Total Input/Output Current: 20 Amp
Input Specifications:
Maximum current of 20 Amp per position
Double positions for + and - polarity terminal, enabling power supply expansion to connect to other modules
Pin pitch: 7.62mm (0.3")
Compatible wire size: 26 - 10 AWG
Stripping length: 8mm
Metric M3 slotted screw for secure connections
Output Specifications:
8 position pluggable top wiring terminal blocks
Maximum current of 3 Amp per position (supports up to 10 Amp, but factory pre-installed fuse value is 3 Amp; change fuse for higher output)
Pin pitch: 5.08mm (0.2")
Compatible wire size: 28 - 12 AWG
Stripping length: 7mm
Metric M2.5 slotted screw for easy installation
Safety Features:
Pluggable fuse holder compatible with medium blade ATO / ATC fuses
Each output channel includes a green LED indicator that turns off when the fuse is blown or removed
