6AN Fuel Line Kit, Transmission Cooler Line Kit for 4L60E 4L65E, AN6 Nylon Braided Fuel Line Hose Fitting Kit CPE 15FTDescription Nominal Wall Thickness 0.125 inches Unit Count 1.0 Count Maximum Pressure 750 Pound per Square Inch Material Cpe Rubber Material Type Cpe Rubber Item Weight 1.15 Kilograms Item Length 15 Feet Outside Diameter 0.56 Inches Product Dimensions 180"L x 0.56"W Item Dimensions L x W 180"L x 0.56"W

• The 6an braided fuel line kit can be compatible with 4L60E 4L65E Transmisson cooler.
• The Hose ID: 0.31". Hose OD: 0.56".Length: 15 Feet.Minimum bending radius:63.5mm.
• The hose Maximum Working Pressure: 750psi. Bursting Pressure: 2250psi. Temperature Range: -22°F to 248°F.

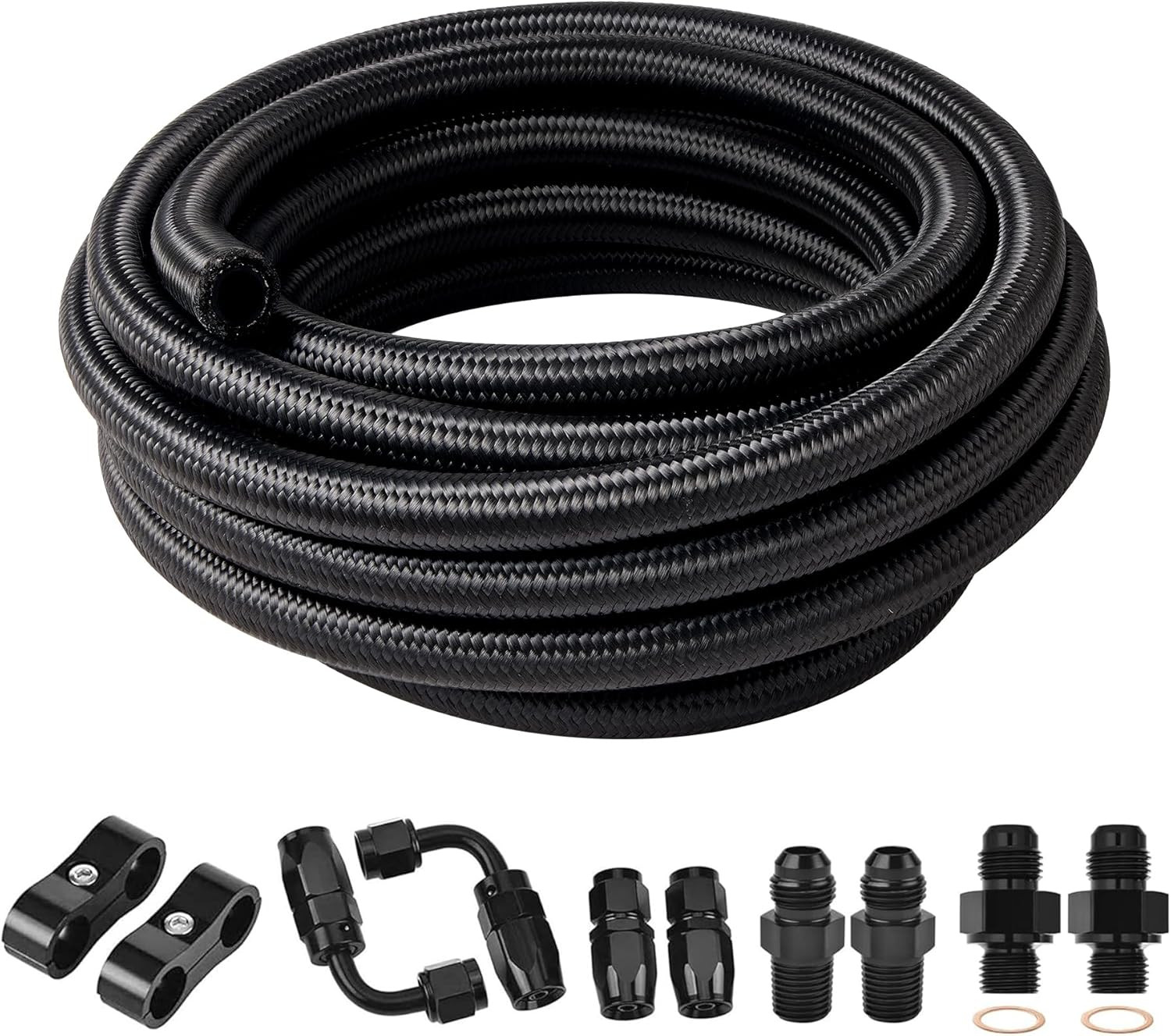

• Package includes: 4pcs 6an swivel hose ends (2pcs straight, 2pcs 90degree),2pcs 6an hose separator clamp, 2pcs 6AN to 1/4"NPT fittings, 2pcs 6AN (9/16-18 UNF) Male Flare to 1/4"-18 NPSM and 6an braided fuel line (Length: 15 Feet).
• The hose is made of CPE rubber inner, with a layer of 304 steel wire and nylon outer braid; the hose adapters are made of high-performance aluminum alloy.

Product description The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. hero-video Merchant Video 1 Feature 2 Package Includes CPE Fuel Line Compare 6AN Size 3/8" NO Compatible with E85 NO 750PSI Working Pressure 300PSI 2250PSI Burst Pressure 1160PSI -22°F to 248°F Temperature Range -40°F to 257°F 63.5mm Min Bending Radius 100mm 6AN Size 6AN NO Compatible with E85 YES 750PSI Working Pressure 1500PSI 2250PSI Burst Pressure 4500PSI -22°F to 248°F Temperature Range -76°F to 446°F 63.5mm Min Bending Radius 88.9mm

1. NBR Fuel Line
2. PTFE Fuel Line

1. Marine Fuel Hose

   Conforms to USCG Type A1-15 SAE J1527. Widely used for supplying fuel to motors in boats or marine.

2. Transmission Oil Cooler Hose

   Conforms to SAE J1532. Provides a safe, heat and oil resistant connecting between oil cooler and transmission or engine.

3. NBR Rubber Fuel Hose Line

   Conforms to SAE 30R7. Widely used as a fuel line, emission control line, fuel return line, etc.

4. Fuel Injection Hose

   Conforms to SAE 30R9. Wildly used in fuel line, return line, fuel pump, EFI, LS swap, etc.

5. Swivel Hose End Fitting

   The swivel fitting is working with nylon braided and stainless steelfuel hose.
