For quick testing of 6502 & W65C02 CPUs circuit5urgeon

Top Service Fast shipping Highest quality 6502 and W65C02 CPU "NOP" Tester

The6502 CPU is used in a number ofvintage computers and games consolesincluding the Acorn BBC Micro, Apple I & II, Commodore 64, PET, Atari, Nintendo, and many more. Due to its popularity, there are numerous fake CPUs on the market, as well as, of course, genuinely faulty devices.

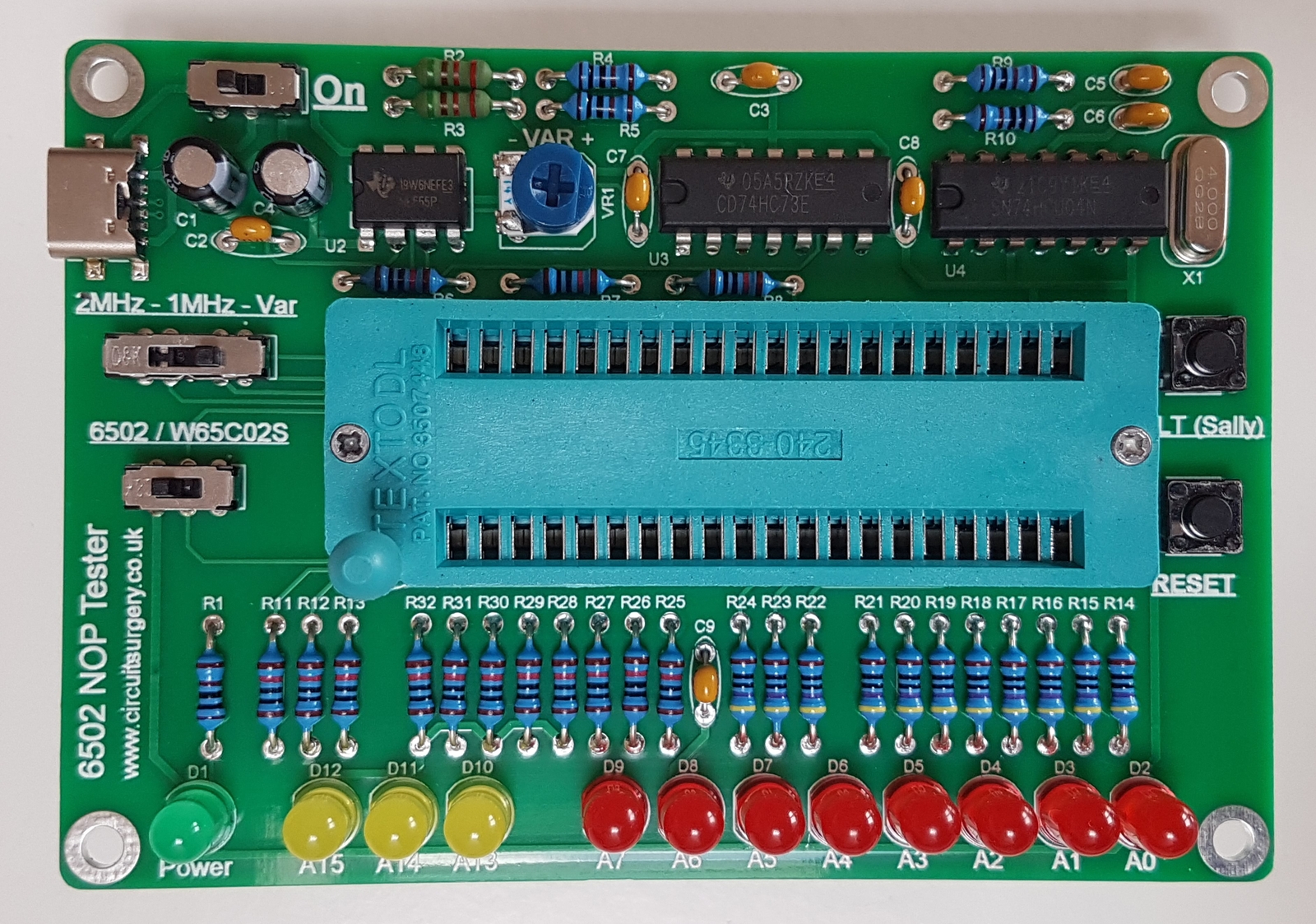

This tester allows you toperforma quick test of a 6502 CPUto determine if the chip is likely to be good or is faulty or fake.

It does this by presenting a permanent "NOP" (No Operation) instruction on the data pins, so that when a good device under test is powered up or reset, it will step through all the 64k addresses in sequence and the progress is displayed by the the CPU under test at 1MHz, 2MHz, or a slower, more visible, speed, switch selectable

The slow speed can be varied by means of the on-board potentiometer

Switch selection of 6502 or W65C02 CPU variants

"Halt" button to test for "Sally" variant

"Reset" button to start the CPU without having to switch the tester off/on

LED's display the status of most of the address lines

ZIF (Zero Insertion Force) socket for the CPU to be tested

USB-C socket for connecting power to the tester from any USB power adapter

Power On/Off indicator LED

Fully through-hole technology (except the USB-C socket)

Mounting holes enabling the tester to be fitted into a case or on feet

Full details via a downloadable PDF document

Note that this tester provides an indication that the device is faulty or fake, or is likely to be good. Due to the complexity of the CPUs, it does not guarantee that the device is working perfectly. Shipping/Tracking Numbers:
