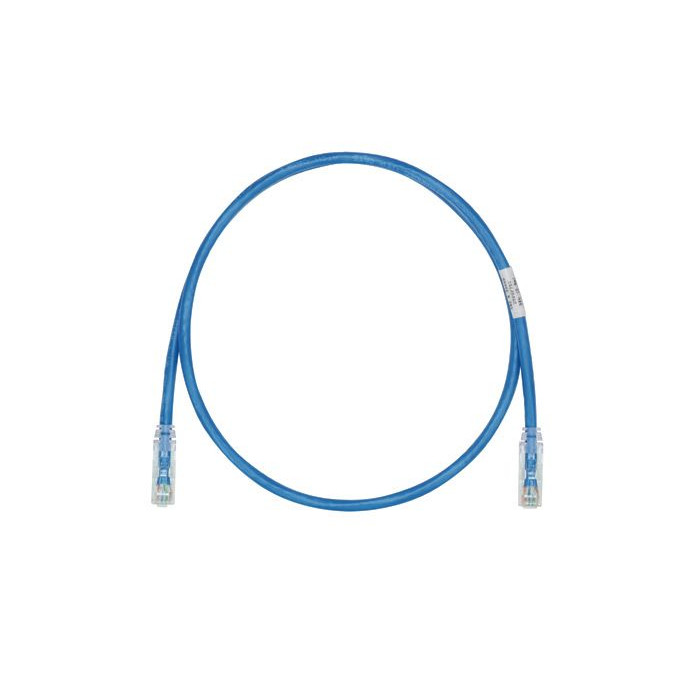

5ft Panduit NK6PC5BUY 24 AWG Copper Cat 6 UTP Patch Cord Blue Click Thumbnails to EnlargeDESCRIPTION
• Panduit NK6PC5BUY | NetKey Cat 6 24 AWG UTP Patch Cord, 5 ft, Blue.
• The NetKey Cat 6 UTP Patch Cord is constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with enhanced performance modular plugs. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cords slender strain relief boot provides easy access in high-density applications. The patch cord is 5 feet in length and blue.
FEATURES
• 100% performance tested, Patented tangle free latch, Slender strain relief boot, Identification and Variety of color and lengths available.
APPLICATIONS
• Used in all work area outlets and patch panels; wired to be compatible with both T568A and T568B wiring schemes. Suitable for Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet); 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM ; Token Ring 4/16; and Voice over internet protocol (VoIP).
PRODUCT SPECIFICATIONSProduct Type Patch Cord
Conductor Gauge (AWG) 24Performance Level Category 6Conductor Type StrandedCable Construction U/UTPPatch Cord Type UnshieldedPlug Housing Material
PolycarbonateJacket Material
PVCConnector 1,2 Type Modular Plug
Overall Length (ft.) 5Nominal Cable Outside Diameter (In.) 0.235Wiring Scheme T568BMaximum Operating Temperature (°F) 140Minimum Operating Temperature (°F) 14Maximum Storage Temperature (°F)
158Boot ColorClearColor
BlueFlammability Rating CMStandards Met Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E channel requirements; Meets ANSI/TIA-568.2-D and ISO 11801 Category 6 component requirements; complies with ANSI/TIA-1096-A; Meets IEC 60603-7; Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886); CE Compliant; RoHS CompliantIEC Variant 60603-7PoE Compatibility PoE/PoE+/PoE++Plug Type 8 PositionShipping
***Free shipping on most orders.
Need the wire fast? Ask about our expedited shipping to get it to you on time. Signature required for all deliveries. Please note 's delivery dates are only estimates actual delivery dates may be faster or longer, please message us for exact delivery times.***
Payment & Returns
***All returns must be made within 30 days from the date of purchase or they will not be accepted. Nassau National Cable does not cover re-delivery fees, extraneous shipping expenses or change of address fees after shipping***
About Nassau National Cable
(disclaimer: these images of wire in no way reflect the product being sold and are for aesthetic purposes only)
We have been in business for over 60 years and are family owned and operated. We have been on the inc 5000 in 2014, 2015, and 2016 as one of the fastest growing privately owned companies. We look forward to serving you.
Some of our customers are shown below:
