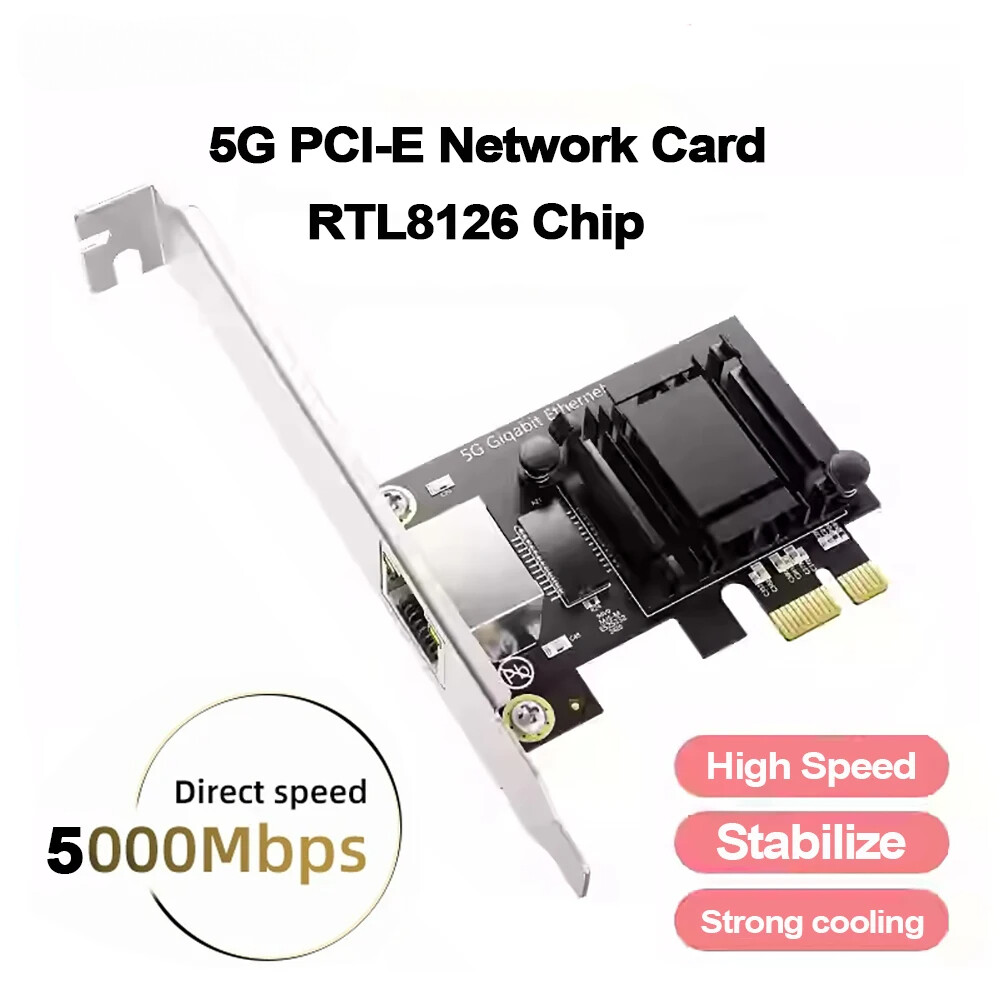

Store Categories Store Categories TXA307 5G PCIe To RJ45 Network Card RTL8126 Chip Gigabit Ethernet PCI Express 1G/5Gbps
Product Description
computer and provides Multi-Gigabit Ethernet access to your network at five speeds: 5Gbps, 2.5bps, 1G, 100Mbps and 10Mbps. 2, The 5Gbase-T solution provides additional bandwidth using your existing ethernet infrastructure to help reduce the cost cabling upgrades. The card enables you to connect to 5Gbase-T and NBASE-T equipment at network speeds of 10Mbps, 100Mbps, 1Gbps, 2.5Gbps and 5Gbps over your CAT5e cabling (up to 100M depending on the network configuration) 3, The Realtek RTL8126 chipset, compliant with IEEE 802.3az and IEEE 802.3u supports the PCIe 3.1 interface. It provides up to a 500% increase in data rate and requires no changes to existing cable infrastructure.
Features • Multi-Gigabit Ethernet connectivity with four network speeds: 5G, 2.5G, 1G, 100Mbps, 10Mbps • Compatible with both 5GBASE-T and NBASE-T specifications • Support 5Gbps network speed on CAT5e and CAT6a cabling • Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az and IEEE 802.3bz standards • Supports IEEE 802.1Q VLAN tagging, and IEEE 802.3x Fully Duplex Flow Control • Supports IEEE 802.1ad Double VLAN • Full and half duplex support • PXE network boot support • Transmit/Receive on-chip buffer support • Jumbo frame supports up to 16Kbytes • Wake-on-LAN (WOL) support • Complies with Microsoft and Linux platforms
Specifications Hardware: Bus Type : PCI Express 3.1 (8 GT/s) Bus Width : x1 lane PCI Express, operable in x4, x8 and x16 slots Card Type : Standard Chipset ID : Realtek – RTL8126 Industry Standards : IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz Interface : 1x RJ45 Power Consumption : Gbps – 1.8W Special Notes / Requirements : PCI Express enabled computer with an available PCI Express x1 slot Gen 2.0 or higher (x4, x8, x16) Software : Windows® 10, 11, Linux kernel up to 6.4 Physical Characteristics : Product Height : 120 mm Product Length : 84 mm Product Width : 22 mm Indicators : LED Indicators : 1 – Link (Green), 1 – Act (Orange) Environmental Humidity : 20~80% RH Operating Temperature : 5°C to 50°C (41°F to 122°F) Storage Temperature : -25°C to 70°C (-13°F to 158°F) Included in Package : 1 – Single Port 5Gbps PCIe Network Card
