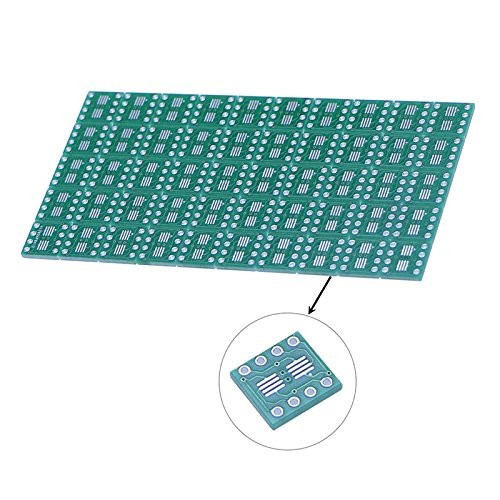

50pcs 8 Pin Double Side Prototype PCB Printed Adapter Board

• Dual-Side Compatible Layout for Maximum Flexibility: The front side supports wide-body SOIC / SOP-8 packages, and the reverse side fits narrow-body SO, MSOP and TSSOP-8 chips. This 2-in-1 adapter PCB works with multiple 8-pin SMD packages, helping cut inventory and procurement costs
• Standard 2.54 mm (0.1 inch) Pitch: Pre-drilled through holes perfectly fit breadboards, prototype perfboards and standard 8-pin DIP IC sockets. Solder your SMD IC onto the pads, then plug the adapter directly into test circuits or dev boards without extra wiring
• Compact & Robust Build: Each PCB measures 10.92 x 10.16 mm (L x W) with 1.6 mm thickness. Solid FR4 substrate withstands frequent plugging and unplugging
• Compatibility Check Tip: Confirm pin pitch, chip body width and pad dimension before soldering to prevent mismounting and rework when testing different 8-pin SMD ICs
• Bulk Pack of 50 Pieces: Includes 50 adapter boards, perfect for prototype development, student projects and mass module assembly. Precise hole positioning and stable manufacturing quality consistent electrical connections

Double sided PCB board
Suitable for experiment, electronic designing and DIY, etc. Thickness:1.6mm
Front: pin distance about 1.27mm/0.05"
Back: pin distance about 0.65mm/0.03"
Two sides' pin hole distance: 7.62mm/0.3"
Board size: length is 10.92mm/0.43", width is 10.16mm/0.4"
Main color: green
When confirming that the number of pins is sufficient, a quick confirmation is only necessary to check the size of pin pitch, chip and pad width
The detail size please pay attention to the picture Package include: 50 pcs adapter PCB board
