Description:

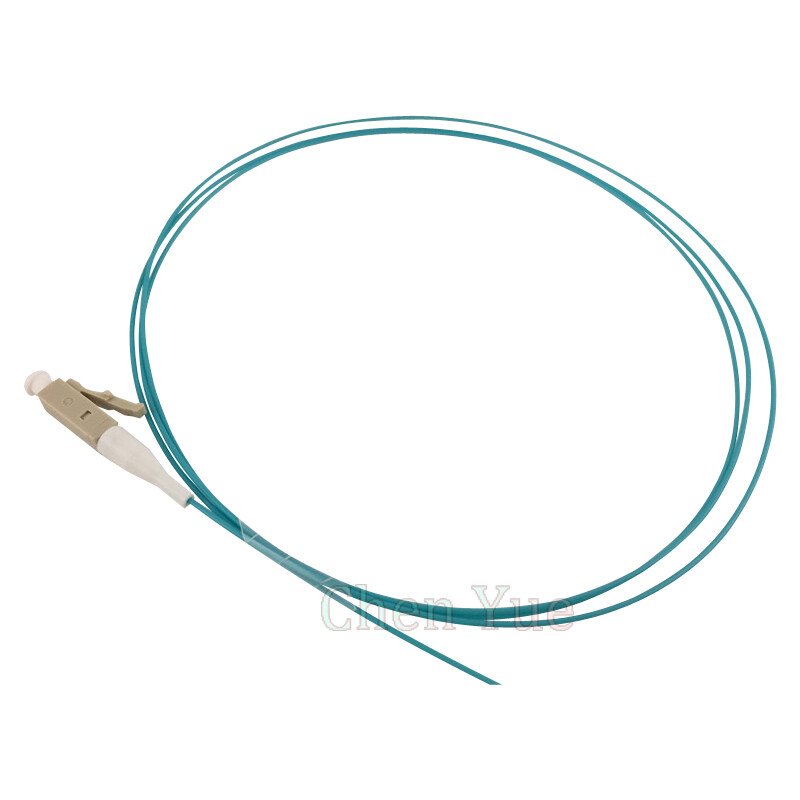

Fiber Optic Patch Cord is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Features
1.Price-Competitive
2.Low Insertion Loss & PDL
3.Factory-terminated and Tested
4.Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber
5.Connector Options: style="box-sizing: content-box; margin: 0pt; padding: 0pt; border: 0px; font-variant-numeric: inherit; font-variant-east-asian: inherit; font-stretch: inherit; font-size: 12px; line-height: inherit; font-family: Arial, Helvetica, sans-senif; vertical-align: baseline; color: rgb(51, 51, 51); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">6.Polishing Options: PC/UPC/APC
7.Feature Connector with Ceramic Ferrules
Applications
1.Access Network
2.Telecom/CATV Systems
3.FTTx
Specifications
Parameters
Standard Fiber Cable Assemblies
Fiber Type
SM(G.652/G.657A)
MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials
LSZH/OFNR/PVC
Connector Type
Ferrule Materials
Ceramic
Testing Wavelengths
1310±30/1550±30nm
850±30/1300±30nm
Insertion Losss(dB)
TIA/EIA-455-107
≤ 0.25dB
(PC/UPC/APC)
≤ 0.3dB
(PC/UPC)
Return Loss(dB)
TIA/EIA-455-107
≥50dB(PC/UPC)
≥60dB(APC)
≥40dB(PC/UPC)
Exchangeability
≤ 0.2dB
Cable Assemblies
Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)
-10~ + 70
Storage Temperature (° C)
-40 ~ +85
Package
1unit/bag
*All values specified are with connectors.
