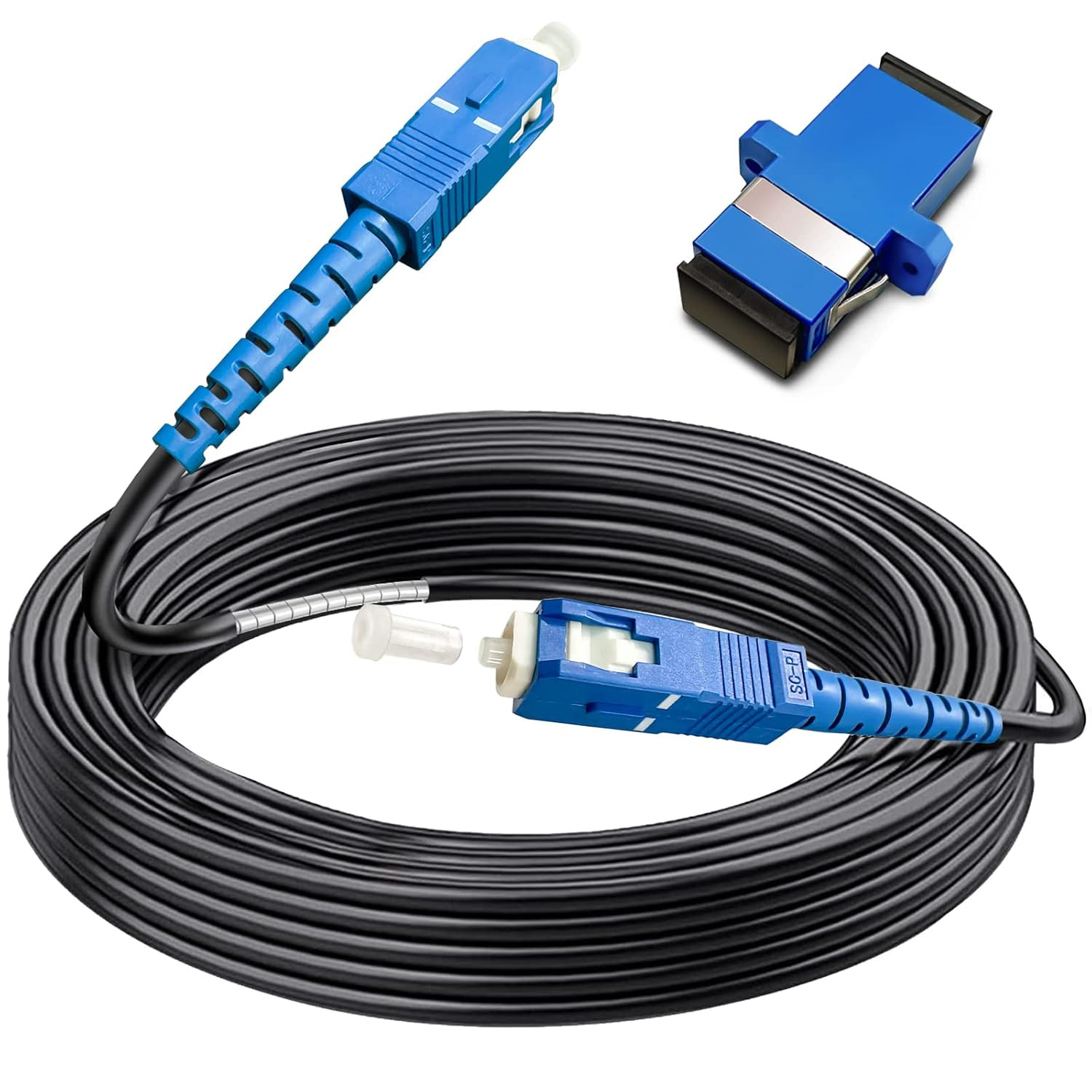

Product description 9/125 Single Mode SC UPC to SC UPC Armored Fiber Optic Cable Specifications Connector Type SC to SC Polish Type UPC to UPC Fiber Mode OS2 9/125μm Fiber Count Simplex Fiber Grade G.657.A2 (Compatible with G.652.D) Cable Diameter 3.0mm Cable Jacket LSZH with low-friction characteristic Jacket Color Black Fiber Cords Structure Single Armored, Stainless Steel Tube Tensile Load 120/225N (Long/Short Term) Insertion Loss ≤0.15dB Return Loss ≥55dB Min. Bend Radius (Fiber Core) 7.5mm Min. Bend Radius (Fiber Cable) 10/5D (Dynamic/Static) Operating Temperature -25~70°C Storage Temperature -25~70°C Unique end-face baking technology
The unique end-face baking technology allows the jumper to maintain a dry end-face for an extended period in even the harshest climate conditions, preventing the formation of moisture that could affect data transmission.
G657.A2 - Bend Intensive Fiber
Bangun Optical Fiber cable use G657A2 fiber which is a powerful solution for access networks where frequent bending and joining of cables and hardware miniaturization is observed.
Compared with traditional PVC cable, LSZH Jacket is more healthy and safe
Bangun Fiber Optic Patch Cable adpoted 3.0mm LSZH Jacket that is environment flame retardant, anti-corrosion, pull-resistant, low-smoke, halogen-free and immune to electrical interference.
Bangun products are extensively applicable to telecom operators, fiber optic engineering, CCTV, broadband networks, FTTH, data center in more than 80 countries worldwide.
Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.6 out of 5 stars 171 4.7 out of 5 stars 1,695 4.7 out of 5 stars 242 4.3 out of 5 stars 32 4.7 out of 5 stars 79 4.6 out of 5 stars 68 Price $6.99$6.99 $7.99$7.99 $19.99$19.99 — no data $10.99$10.99 $15.99$15.99 Fiber Count Simplex Simplex Simplex Simplex Simplex Simplex Fiber Grade Corning G.657.A2 Corning G.657.A2 Corning G.657.A2 Corning G.657.A2 Corning G.657.A2 Corning G.657.A2 Jacket LSZH Armored LSZH Armored LSZH PVC Armored LSZH Armored LSZH Cable Diameter 3.0mm 3.0mm 3.0mm 0.9mm 3.0mm 3.0mm Insertion Loss ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB Low Friction Coating no data no data ✓ no data no data ✓ Length 1-30m 1-30m 1-10 Kilometers 1-30m 1-30m 10-30m Add to Cart Add to Cart Customer Reviews 3.8 out of 5 stars 173 4.6 out of 5 stars 41 4.6 out of 5 stars 5 3.4 out of 5 stars 84 Price $149.99$149.99 — no data $29.99$29.99 $176.39$176.39 Fiber Count Duplex / 2 Fibers Duplex / 2 Fibers Duplex / 2 Fibers Duplex / 2 Fibers Fiber Type Corning G.657.A2 Corning G.657.A2 Corning OM3 Corning OM3 Jacket Armored LSZH, Black Armored LSZH, White LSZH, Aqua HDPE Cable Diameter 3.0mm 3.0mm 3.0mm 3.0mm Insertion Loss ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB Low Friction Coating ✓ no data no data no data Length 1-10 Kilometers 1-30m 0.2-25m 15-300m Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.3 out of 5 stars 20 4.2 out of 5 stars 7 5.0 out of 5 stars 2 — — — Price $18.99$18.99 $12.99$12.99 $49.99$49.99 $49.99$49.99 $99.99$99.99 $59.99$59.99 Fiber Count 12 6 6 6 12 12 Fiber Mode 9/125 μm 9/125 μm 50/125 μm 50/125 μm 50/125 μm 9/125 μm Cable Diameter 0.9 mm 0.9 mm 0.9 mm 0.9 mm 0.9 mm 0.9 mm Minimum Bend Radius 7.5mm 7.5mm 7.5mm 7.5mm 7.5mm 7.5mm Insertion Loss ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB ≤0.15dB Cable Types Color-Coded Color-Coded Color-Coded Bunch Bunch Bunch
- Low Friction SC/UPC-SC/UPC singlemode SIMPLEX fiber optic patch cable: Bangun OS2 fiber patch cable body is made of Ultra Low Friction flame retardant LSZH jacket (Coefficient of Friction μ
