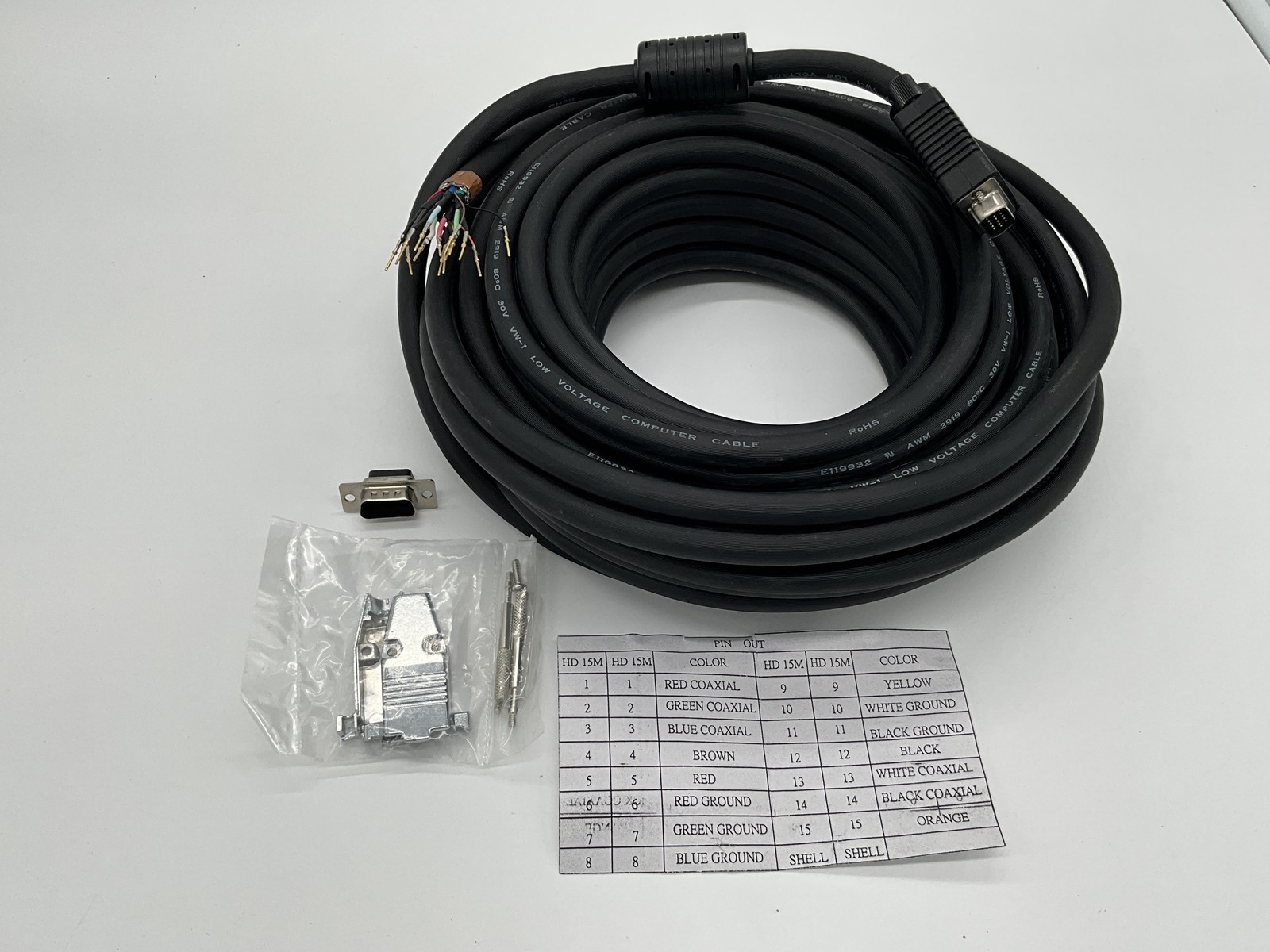

Premium 50ft VGA Conduit Cable
Super VGA 50ft M-M. Video Cable Used to Attach Hi-Resolution Monitors.
Removed HDDB15 End Allows installation in Conduit or through Small openings.Connectors Pins are already Installed on Cable.
Easily Push into Connector Housing Making a Permanent Installation.
No secondary Signal loss via additional connectors in the cable.
This design is superior to those that use an additional connector 1ft down the cable.
Premium Sheilding for Industrial Applications.
Includes Wiring Guide and Metal Hood.
Engineered for Professional Video Application. This cable is designed for best color saturation and, Black level, and Picture Detail in Mind.5 Mini Coax 75 Ohm Cable with UL2919 Specs.
Pin 9 is wired through for special applications.
Minimum Hole Size for feedthrough is 1/2 Inch Conduit.
HDDB15-M Pin Color1 Red Coax2 Green Coax3 Blue Coax4 Brown5 Red6 Red Ground7 Green Ground8 Blue Ground9 Yellow10 White Ground11 Black Ground12 Black13 White Coax14 Black Coax15 OrangeShell ShellCable Diameter is 9mm
