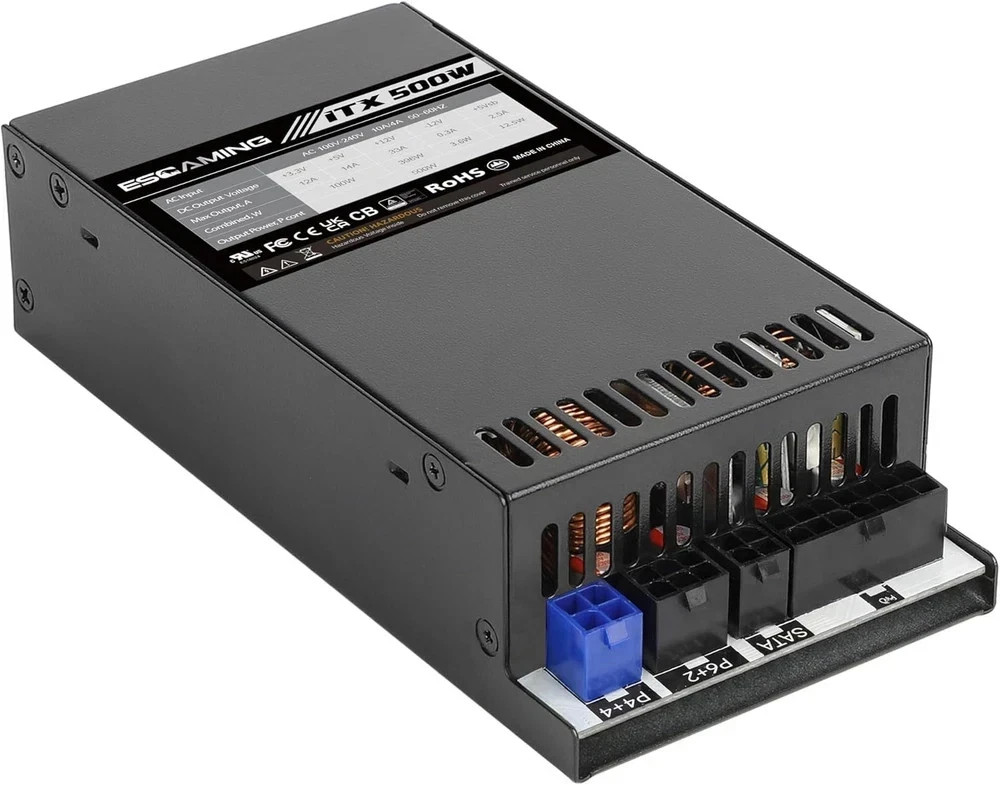

500W 1U/Flex Atx/Mini ITX Power Supply, 80+ Bronze Certified Fully Modular Active PFC Full Range 90-264V PSU, Suitable for Mini Server NAS HTPC Rackmount PSUDescriptionPower Supply DesignFull ModularWarranty Description24 MonthsMfr Part NumberITX500Cooling MethodAirItem Dimensions6.3 x 2.87 x 1.38 inchesWattage500 wattsCompatible DevicesMini ITX/Flex ATXConnector Type Used on CableEPS, PCI ExpressConnector TypeEPS, PCI ExpressMinimum Input Voltage90 Volts (AC)Model Number1U500Model Name1U500Output Wattage500 WattsItem dimensions L x W x H6.3 x 2.87 x 1.38 inchesForm Factor1USystem Bus Connector Type20+4 PinMaximum Input Voltage264 Volts (AC)Size500W

• 【80 Plus Bronze】Achieves up to 85% efficiency at typical loads, reduce energy waste and heat output while ensuring reliable 24/7 server operation.
• 【Fully Modular】1U features a fully modular cable system for simplified installtion, improved airflow, and clutter-free cable management in compact 1U chassis.
• 【Connectors】1 x 20+4pin Motherboard, 1 x 8pin CPU 12V(P4+4), 2x 6+2 PCIE, 2 x SATA, 2 x 4pin PATA
• 【Active PFC】APFC Full Range 90-264V, improved power stability, refuces electrical interference, and delivers cleaner and more consistent output.
• 【IMPORTANT】 The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on.

Product descriptionESGAMING offers most reliable, efficient and most desirable design for high-end PC builders. It incorporates flat cables and up to 85% overall efficiency.

• 1X 500W 1U Power Supply
• 1 x AC Power Cord (1.5m)
• 1x Cable Pack (Included all the necessary cables)
• 4 x Screws

ESGAMING ITX-APFC 500W 80+ Bronze

The ESGAMING power supply is available in 500W and built to deliver 80 PLUS Bronze efficiency. The series features a hydraulic bearing fan and other premium components to help deliver a continuous and stable 24/7 power with an ambient temperature, while near silent operation and reliable performance.

• 80 Plus Bronze Efficiency
• Low Noise FDB Fan
• High Temperature Resilience
• Hardware Protection
• Flat & Flexible Cables
• OVP, UVP, OCP, OPP, SCP, and Dual OTP Protections

Fully Modular Cable Design

FLAT Type Cable

• 14 PIN TO 20+4 Pin x 1 (Length : 380mm)
• 4 PIN TO CPU P8(4+4 )Pin x 1 (Length : 380mm)
• 6 PIN TO PCI-E : P8(6+2)+P8(6+2) x 1 (Length : 380mm)
• 4 PIN TO SATA+SATA+PATA+PATA x 1 (Length : 380+150+150mm)

ABOUT Flex ITX 500W POWER SUPPLY

• Stable Output: offers your system more reliable and stable output voltages,ensuring reliable 24/7 server operation.
• High-Efficiency: 80 Plus Bronze certified, with 85% efficiency or higher under typical loads
• Noise reduction fan: Ultra Quiet Hydraulic Bearing Fan with inaudible noise.
• Excellent Heat Dissipation: Honeycomb ventilation design combines with the fan function for better heat dissipation
• Fixed Cabling: Provides all the necessary cables required for a standard pc gaming case.
• Full Protection: including OVP/UVP/OPP/SCP/OCP/OTP
