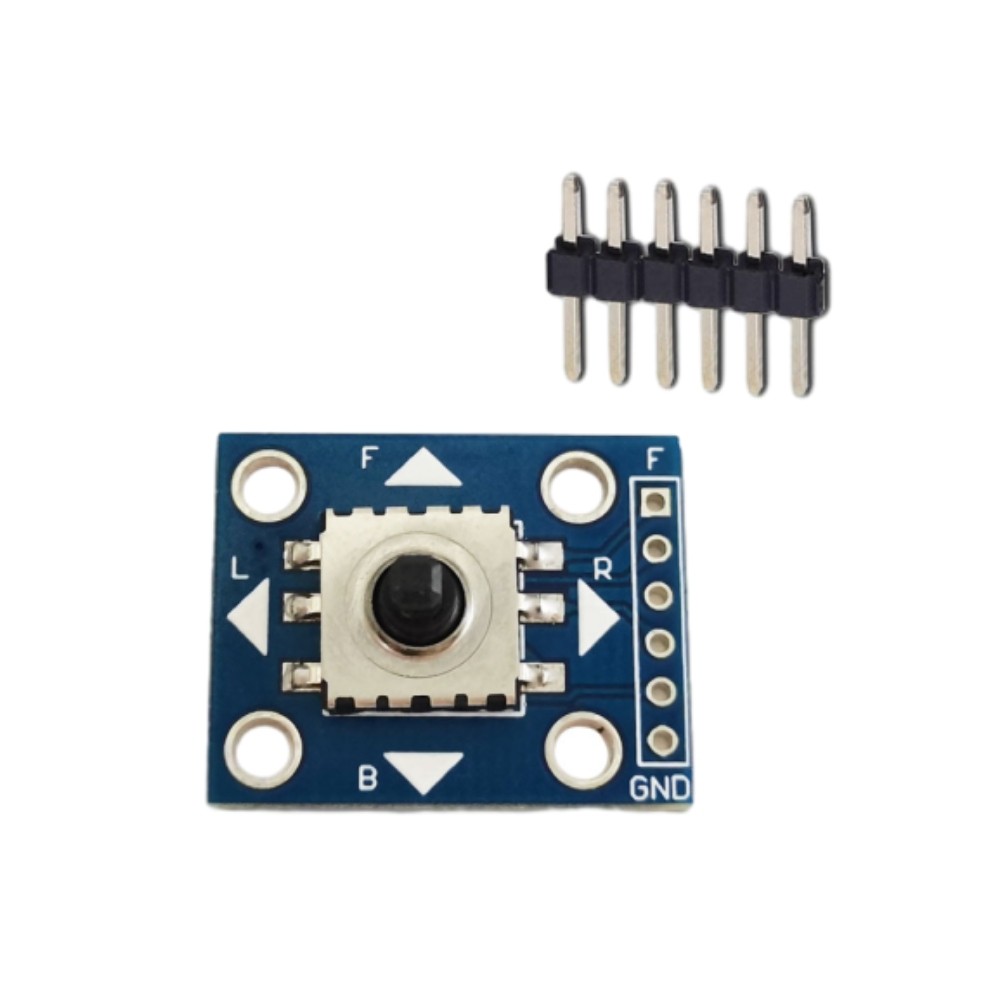

5-way Switch Module 5D Rocker Microcontroller Independent Key Switch

The five-way switch module can realize the control of the five I0 ports of the single chip microcomputer by moving up, down, left, right and in the middle, which has the advantages of simple operation and stable function

Size: Weld the pin, use Dupont wire to connect the GND port with the GND of the single chip computer or other modules;

2. Connect the | feet of the bow in five directions with the | feet of the corresponding single piece IO port lead;

3. When the key is pushed, the corresponding IO port will be short-connected with GND so that the level state of the IO port is set to 0. Therefore, the single-chip computer is set to the offerirectional IO port mode, and the level state is 0 when the key is pressed and 1 when the key is not pressed.

Note:

1. Due to the light and screen difference, the item's color may be slightly different from the pictures.

2. Please allow 1mm-1cm differences due to manual measurement.

Package Included:

1x5-way Switch Module
