Designed by UK Chartered Engineer: Patented Omni-Directional GNSS/5G LTE MIMO AntennaOptimal for Vehicle Applications: High-Gain Performance, 4x4 MIMO Structure, and Stable Omnidirectional Design of Cubic Antennas

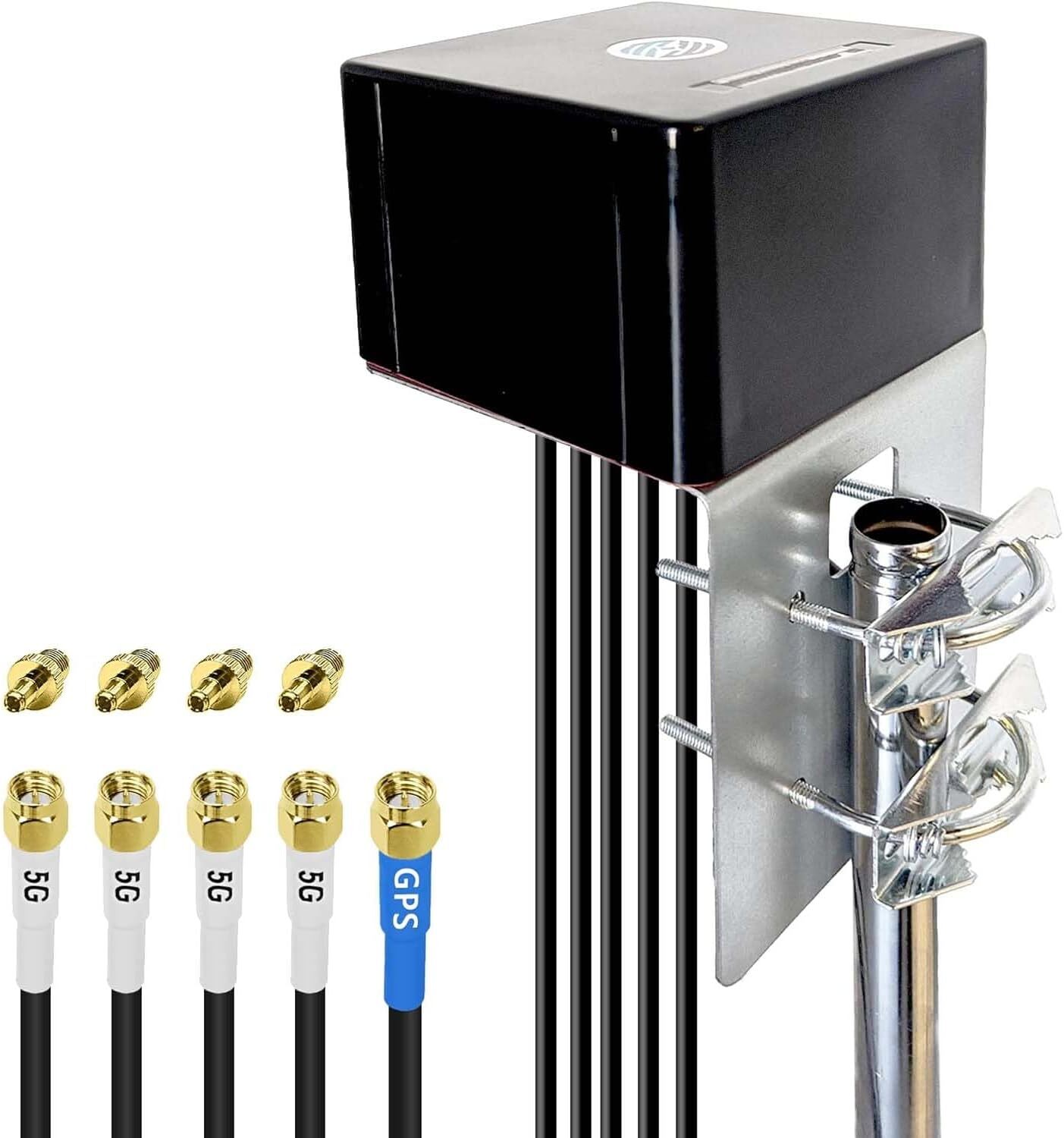

Maswell Cubic-4C1GN is a 5-in-1 high-performance MIMO combination antenna. The antenna provides four cellular antennas and one GNSS (GPS/GLONASS/Beidou/Gaileo) antenna. Radiation patterns of all radiating elements provide a balance between omnidirectionality, pattern diversity and good radiation capabilities at the required heights Good balance. This is an important criterion for antennas designed specifically for the transportation and marine markets. Ideal for commercial/industrial vehicles, ships, urban, agricultural and rural 5G, coverage enhancement systems, a wide range of network equipment for industrial and commercial uses, while maintaining future-proof capabilities over wide frequency bands.
600-8000MHz Ultra-Wideband For All Cellular and WiFi Bands
The 4X4 cellular MIMO antennas provide ultra-wideband performance from 600 to 8000 MHz, enabling use across different carriers and technologies and preparing cellular technologies for 5G applications up to 6 GHz as well as Wi-Fi applications up to 7.125 GHz.
The radiation patterns of all Maswell Cubic radiating elements provide a good balance between omnidirectionality, pattern diversity and good radiation capability at the required height, with an average gain of not less than 5 dBi, while remaining future-proof over a wide frequency band Ability.
Installation is simple, but please note the following tips
After connecting the antenna, enable the router’s external antenna mode
Find a location with the best signal, at least 3 feet away from the antenna when testing.
Do not extend the coaxial cable more than 5 meters. It is recommended to use LMR195 equivalent cable with 50 ohm impedance.
Do not use a Y-cable to connect 2 antenna leads to 1 modem port.
If the interface is outdoors, roll up waterproof tape.
Highlights
- 4X4 MIMO Design Improved signal quality and data throughput
- LMR195 equivalent cable is better than RG58
- omni antenna easy to install
- Maximize signal quality (SINR, RSRQ) and signal strength (RSSI, RSRP, bars)
SpecificationsFrequency Range600-8000 MHzAntenna TypeOmnidirectional External AntennaImprove signal and throughputYes (MIMO Antenna)Improve signal barsNo (4-6dBi)PolarizationCross LMR195 equivalent cable (SMA-Male)Operating Temperature-40°C to +85°CIngress ProtectionIP67Radome MaterialASA (UV-stabilized)Relative HumidityUp to 95%Vibration10 to 55Hz with 1.5mm amplitude for 2 hours
