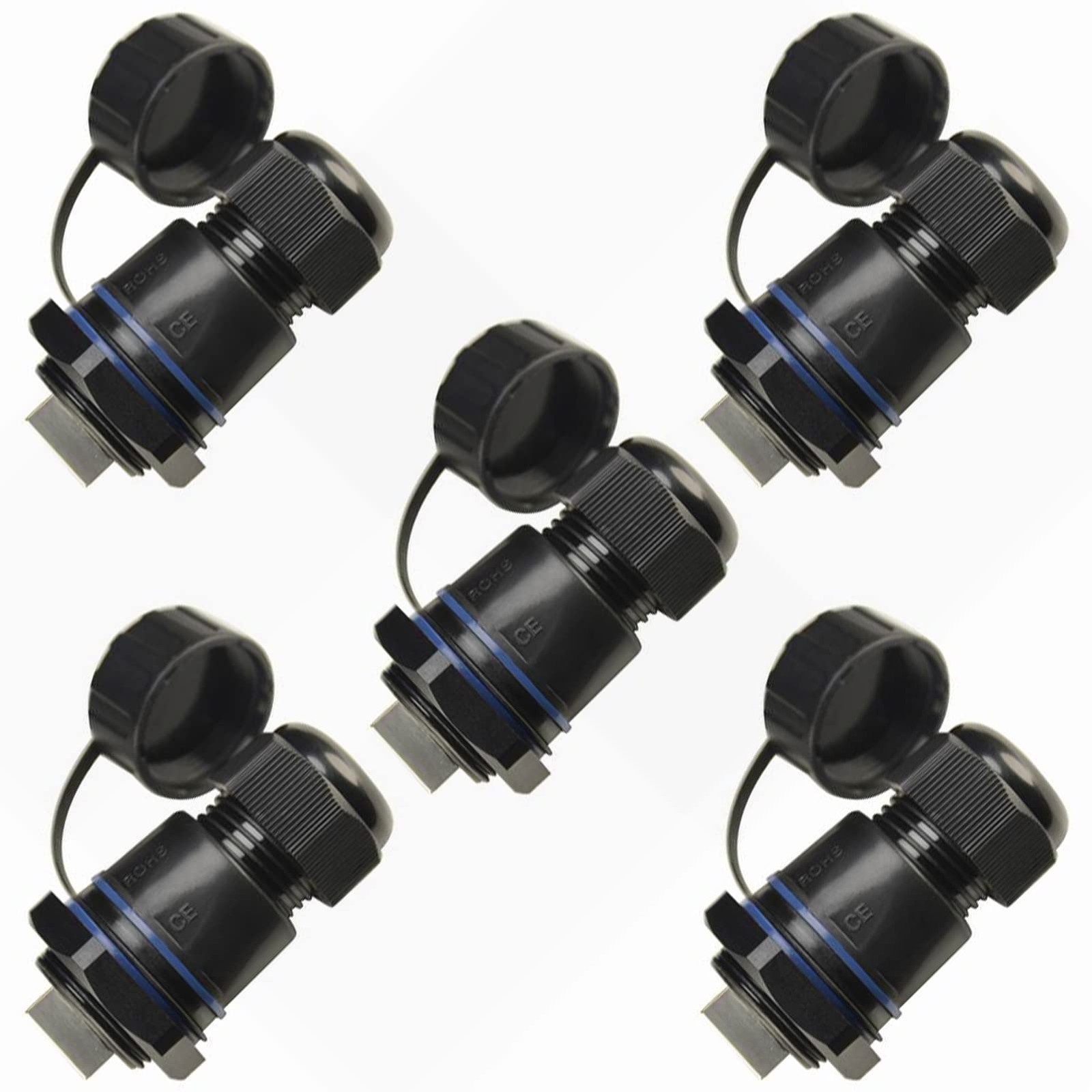

5PCS M25 Panel Mounting CAT6 Shield RJ45 IP68 Waterproof Connector🔍 Product Overview
The female to female RJ45 ethernet lan cable coupler is used to turn the standard CAT5/5e patch cord into the waterproof type for the ethernet connecting in the harsh industrial or outdoor environments. A gasket seal provides optimum protection from moisture and other contaminants with an IP67 rating. Using the standards based RJ45 connection system insures compatibility with existing hardware.
Specifications:
Number of cores: 8 PIN
Waterproof rating: IP67
Connection type: RJ45
Installation size: M25X1.5
Flame retardant rating: UL94V-0
Connection method: plug type + thread pressure lock
Connector wire-in range: OD (3～8) mm
Case wall thickness: Threaded type: >3mm, through-hole type: 0.3~5mm
Connector transmission classification: CAT 6
Transmission speed range: 10BASE-T. 100 BASE-T. 1000 BASE-T and 10000 BASE-T network
Electrical parameters:
Rated current: 1.5A
Rated voltage: 125VAC, 75VDC
Insulation resistance: ＞500MΩ
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
resistance: ＜10MΩ
Material:
Shell: Nylon PA66 (UL94V-0)
Socket pin: 0.5mm diameter phosphor copper wire
pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40～120Celsius
Storage temperature: -25～85Celsius
Atmospheric pressure: 86～106kPa
Relative humidity: ≤90% RH
Package Included:
5x Waterproof RJ45 M25 Connector
5x Waterproof/Dust Cap Cover
⭐ Key Features
- PRODUCT FEATURES: Waterproof at one ends, the panel can be fixed, the two network cables are connected to the connector through the waterproof head, and can be used as a cable extension cable.
- IP67 WATERPROOF: The Waterproof RJ45 Connector are IP 67 Compliant. Prevented from temporary immersion for 30 min in 1 meter depth of water. Prevent the network parts from moisture, dirt and insects for quality connections.
- EASY INSTALLATION: It is miniaturization, and save installation space, RJ45 female to female field installable coupler, no soldering, no installation tools, just plug the standard crystal head directly for quick installation.
- DURABLE: This RJ45 connector is made of PA66 nylon native environmentally friendly injection molding material, flame retardant, UV resistant, and anti-aging.
- Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the product, please feel free to .
