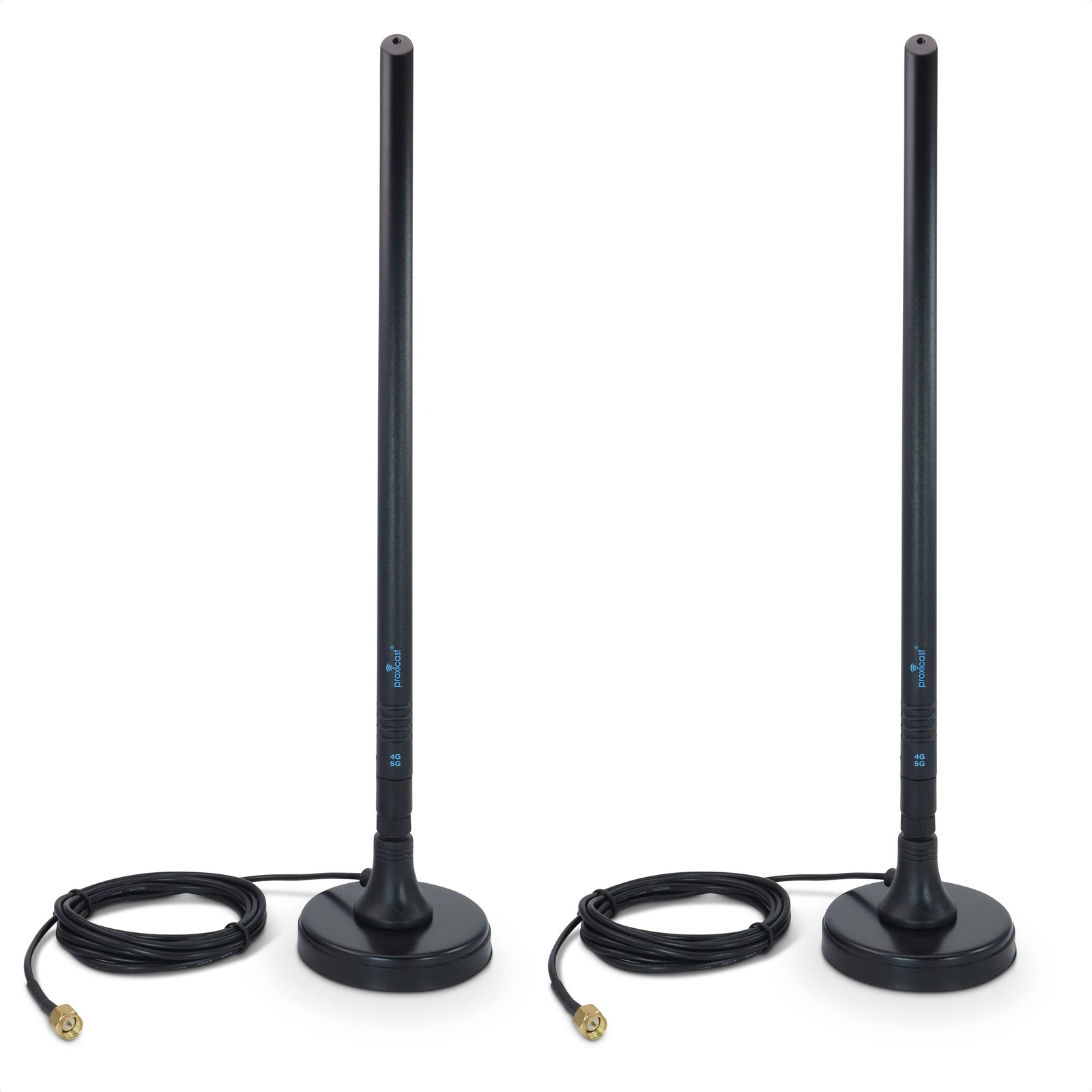

Includes 's 4G / 5G high-gain omni-directional antenna + extra large 3 in. magnetic antenna base with 79 in. (6.6 ft) of low-loss coax cable with an SMA male antenna connector.

The detachable polycarbonate antenna swivels 90 degrees and rotates 360 degrees; the magnetic base and long coax cable allow optimal positioning for maximum signal reception.

This antenna is a smart choice for mobile or stationary applications where extra gain is required.

Electrical Properties
• Frequency Range: 600-6000 MHz
• Impedance: 50 ohms
• Gain: 5-8 dBi
• Radiation: Omni
• VSWR: ADGP < 3.0:1
• Ground Plane: Integrated

Mechanical Properties
• Connector: SMA Male (plug)
• Material: Polycarbonate / Steel / Brass / Rubber - RoHS compliant
• Operation Temp: -30C to +75C
• Coax Cable: 79 inches LMR100 Low Loss
• Overall Height: 13.25 inches
• Diameter Base: 3 inches
• Diameter Antenna: 0.51 inches

Compatible with any 3G/4G/LTE router or modem with external SMA antenna jacks including:
• Cradlepoint COR IBR, AER, ARC, MBR series
• Pepwave Balance, MAX series
• CalAmp CDM, LMU, Fusion, Vanguard series
• Sierra AirLink GX / ES / LS, oMG, Raven series
• Digi TransPort, ConnectPort, ConnectWAN
• Red Lion Sixnet IndustrialPro

NOT for use with Wi-Fi (RP-SMA) devices
BOOSTS 4G & 5G Signal Strength and Upload / Download Data Speeds and Increases Range on AT&T, Verizon, T-Mobile, USCellular, Bell, Telus, Rogers, Telcel, Movistar and most other cellular carriers
COMPATIBLE with Any Brand of Modem, Router, Gateway or Amplifier with an SMA Antenna Jack
ENABLES Antenna to be Positioned for Maximum Signal Reception (more bars)
CONNECTS Directly to Device's External Antenna Port. Use 2 to get MIMO Antenna Diversity / Improved Signal Quality.
SUPPORTS all 4G/LTE Bands and 5G NR FR1 Low-Frequency Bands n71 (T-Mobile), n5 (AT&T, Verizon), n2 (Verizon), n66 (Verizon) and Mid-Frequency C-Bands n41 (T-Mobile) and n77 (AT&T, Verizon). Also Compatible with FirstNet and CBRS Systems.
NOT INTENDED FOR USE ON MOVING VEHICLES
