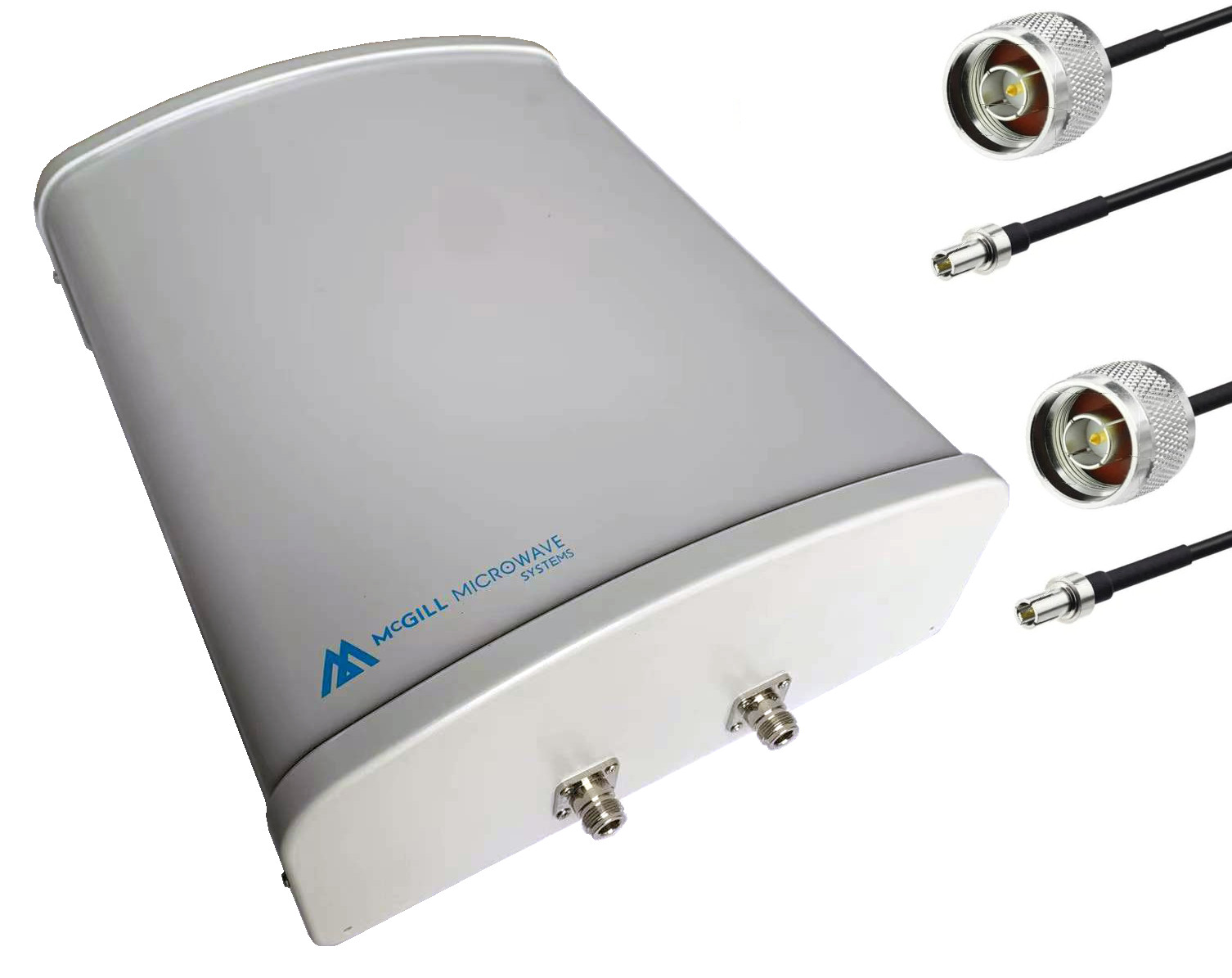

HomeAboutContact4G/3G LTE Broadband Directional AntennaMcGill Microwave Introduce the New, Optimised 4G/3G LTE Broadband Directional Antenna.This antenna provides an innovative and future proof solution for 4G/3G LTE Broadband networks. The polarisation of the antenna is 45 degrees, which is more stable than horizontal and vertical polarisations.The 4G/3G LTE Broadband Directional Antenna has optimised radiation patterns at 65 degrees for both HPBWh & HPBWv.The dBi Gain across all bands are unsurpassed. Competing antennas struggle to achieve more than 2.5dBi gain as a maximum. Our antenna achieves the highest gain on the market at 9dBi gain as a minimum, combined with increased connectivity stability.• 698-960Mhz – 9dBi Gain• 1710-2170Mhz – 9dBi Gain• 2396-2700Mhz – 11dBi GainVSWR ≤1.5 across all frequencies.The 4G/3G LTE Broadband Directional Antenna can be used for both outdoor and indoor use.This antenna comes with Rugged N Female connectors on the base.As standard, this antenna is supplied with a 10m long Ultra Low Loss 195 Series Twin Coaxial Cable Assembly. The Cable assemblies connect to the base of the antenna and have TS9 Male connectors which connects to almost many 4G Routers. If you are unsure which connector your 4G Router has, please contact us.This helps to ensure loss is kept at a minimum. Many competing antennas come with a pre-installed, high loss cable that cannot be removed.Ultra-Strong Aluminium brackets are included to allow the antenna to be mounted to a pole. Window mounting solutions are also available upon request. The antenna can be mounted on a window, wall or pole.SpecificationsItemValueFrequency Range (MHz)680-2700MHzGain10dBiHPBWh (Deg)65 +/-8HPBWv (Deg)65 +/-8Polarisation45Input Impedance50 OhmVSWR<1.5Maximum Power50 WattsAntenna ConnectorN FemaleLightning ProtectionDC GroundAntenna Dimensions360 x 250 x 100mmMaterialGreyRated Wind Speed126 Km/hTemperature Range-40C/ +55CMounting TypePole © McGill Microwave Systems Ltd All rights reserved.This antenna provides an innovative and future proof solution for 4G/3G LTE Broadband networks. The polarisation of the antenna is 45 degrees, which is more stable than horizontal and vertical polarisations. The dBi Gain across all bands are unsurpassed. Competing antennas struggle to achieve more than 2.5dBi gain as a maximum. Our antenna achieves the highest gain on the market at 9dBi gain as a minimum, combined with increased connectivity stability. As standard, this antenna is supplied with a 10m long Ultra Low Loss 195 Series Twin Coaxial Cable Assembly. The Cable assemblies connect to the base of the antenna and have TS9 Male connectors which connects to almost many 4G Routers. If you are unsure which connector your 4G Router has, please contact us. Ultra-Strong Aluminium brackets ar
