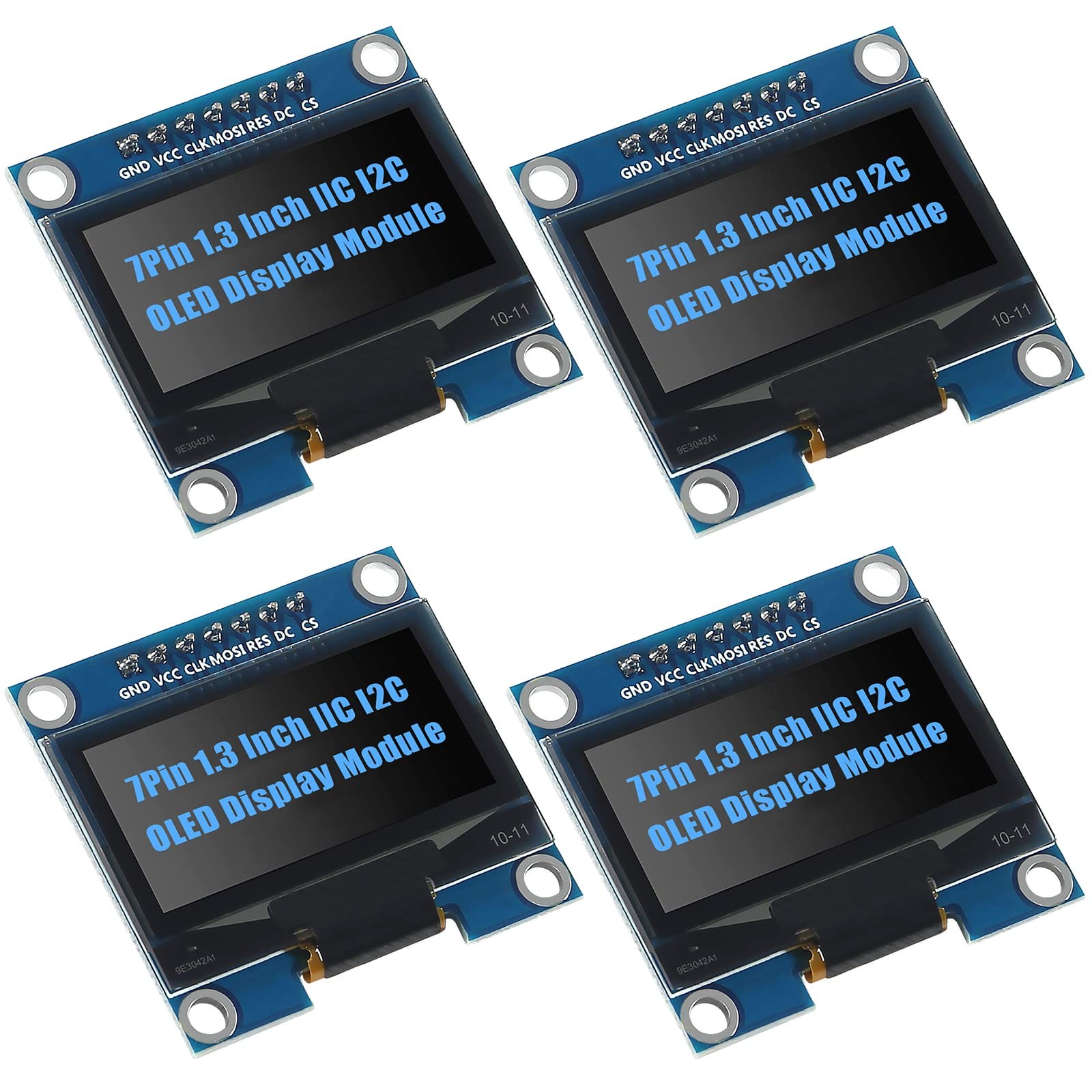

4pcs 1.3" OLED Display Module I2C SPI Serial 128x64 SSH1106 SSD1306 OLED LCD Display LCD Module with Pins for Raspberry Pi/AVR/PIC/STM32 (Blue)About the Product
OLED Display Module Features:
1.Super wide viewing angle: More than 160° (a screen with the largest viewing angle in the monitor)
2.Ultra-low power consumption: Normal display 0.08W (far below the TFT display)
3.Wide voltage supply : DC 3V-5V, 3.3V and 5V level logic compatible, no level shifter IC
4.SPI interface and only requires several IOs to light up easily
5.Working temperature is industrial (-30°C~70°C)
6.Support for multiple operating modes: 3-wire SPI, 4 wire SPI, with chip select CS signal, you can achieve multiple SPI device on the same bus work
7.OLED screen, internal drive chip: SH1106 (Operation and SSD1306 same)
Specifications:
Product Name: 1.3" OLED LCD Display Module SPI Serial
Display Color: Blue/White
Module Size: 33.6x35.6(mm)
Driver Chip: SH1106
Rresolution: 128*64 (Pixel)
Module Interface: SPI Interface
SPI Pin Definition:
GND: Power Ground
VCC: Power + (DC 3.3 ~5v)
SCL: Clock Line
SDA: Data Line
RES: Reset line
DC: Data/commands
CS: Chip select (when not use can be grounded directly)
Package Included:
4* 1.3" SPI Serial 128x64 SSH1106 OLED LCD Display LCD Module with Pins
Key Features
- 1.3 inch oled display module with 128X64 resoluction and SSH1106(SSD1306) chipset
- Ultra-low power consumption: full screen lit 0.08w
- I2C oled lcd display module interface: SPI; 4 fixed bolt holes for easy installation
- Support for multiple operating modes: 3-wire SPI, 4 wire SPI
- Application: These i2c serial 128x64 ssh1106 ssd1306 oled lcd display lcd module can be used for raspberry pi, for 51 series,msp430 series , stm32 etc.
