INCLUDING RACK EARS

EXCLUDING NETWORK CABLES

INCLUDING RX/TX MODULE

See photos for actual item!

Price isfor 1 item

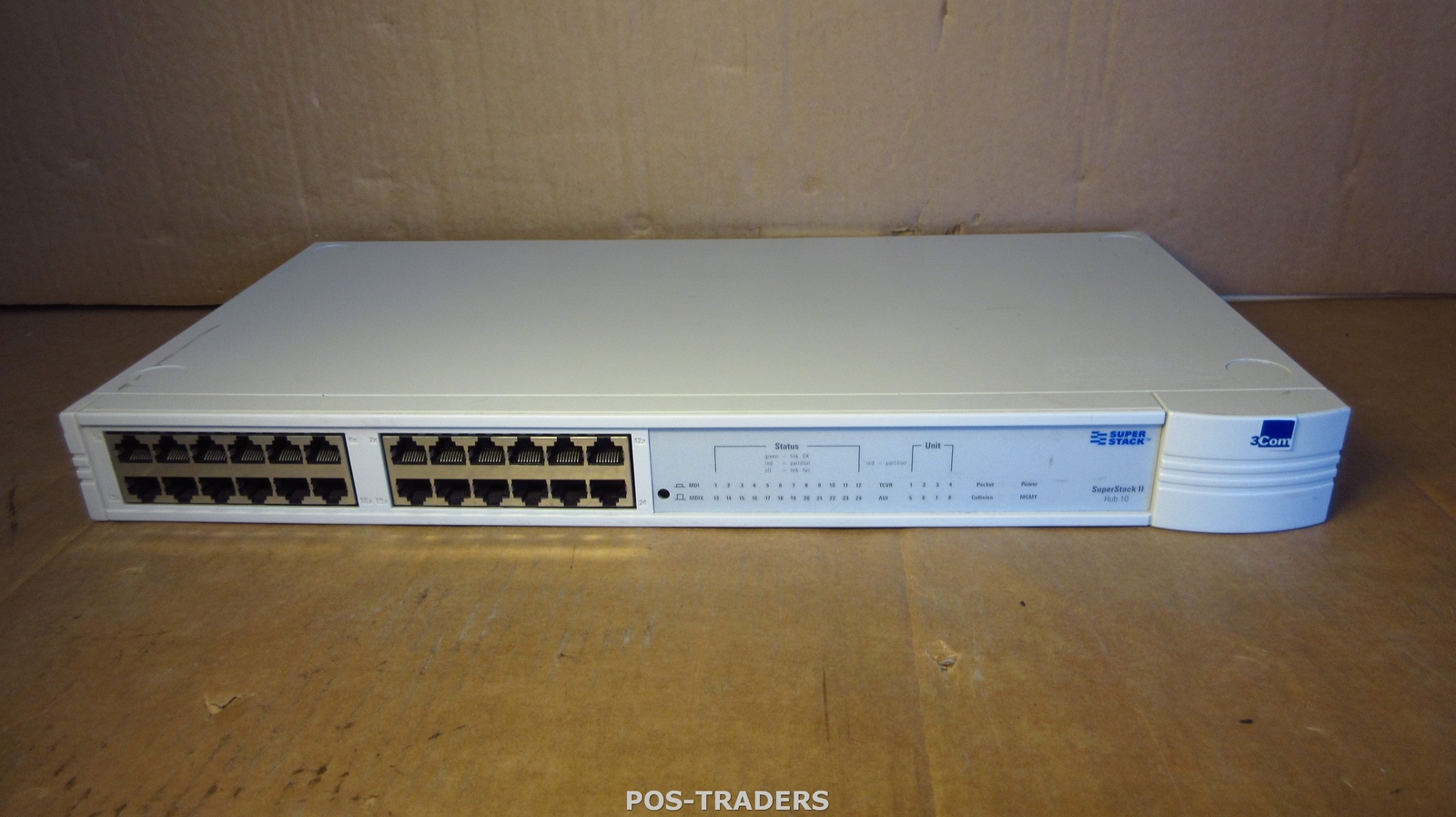

SuperStack II Hub 10 24 Port TP (3C16671A)
The Hub 10 24 Port TP has been designed to conform to the following
Standards:
Physical
- Width
440mm (17.3 ins)
- Depth
224mm (8.8 ins)
- Height
44mm (1.7 ins) or 1U
- Weight
2.7kg (5.9lb)
- Mounting
Free standing,
Or 19" rack or wall mounted using kit supplied

Electrical
Hub 10 24 Port TP & Management Module
- Power Inlet
IEC 320
- Fuse Protection
2 Amps
- Power Consumption
28 VA
- Power Dissipation
96 BTU/hr

Hub 10 24 Port TP & Management Module
- Power Inlet
IEC 320
- Fuse Protection
2 Amps
- Power Consumption
36 VA
- Power Dissipation
123 BTU/hr

- Functional
- ISO 8802/3, IEEE 802.3
Safety
- UL 1950, EN 60950, CSA 22.2 #950
EMC
- EN 55022 Class B, EN 50082-1, FCC Part 15 Class A,
CSA C108.8 Class A
(Screened cables must be used to ensure
compliancewith these standards)

Environmental
- EN 60068 (IEC 68)

SuperStack II Hub 10 12 Port TP (3C16670A))
The Hub 10 12 Port TP has been designed to conform to the following
Standards:
Physical
- Width
440mm (17.3 ins)
- Depth
224mm (8.8 ins)
- Height
44mm (1.7 ins) or 1U
- Weight
2.6kg (5.7lb)

If something is not on the picture it's not included unless stated otherwise.
