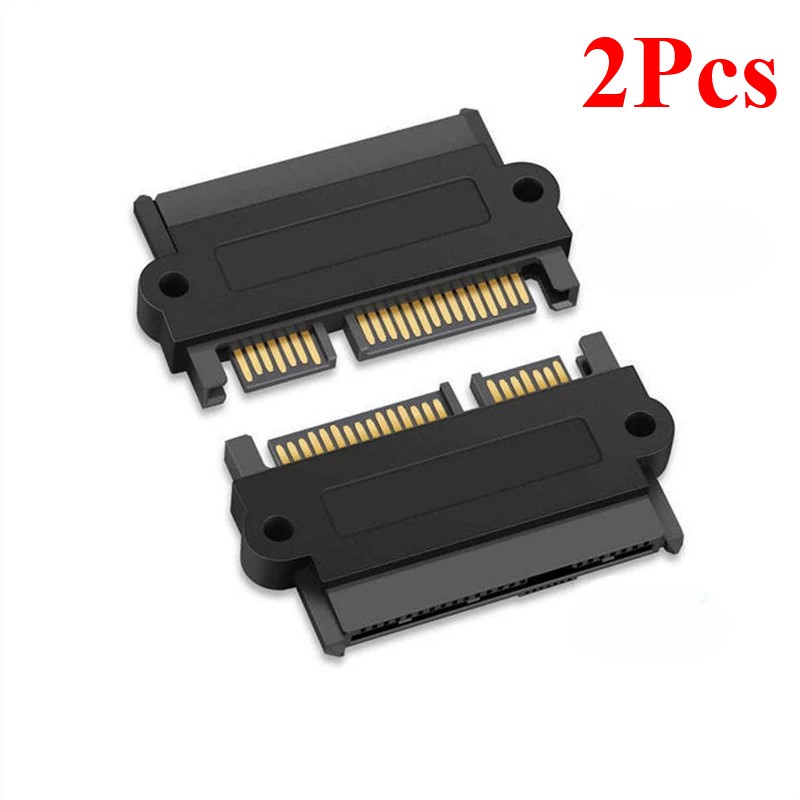

SFF-8482 computer cable / connectors SAS to SATA 22 pin Hard Disk Drive Raid Adapter with 15 Pin Power Port.
This SAS adapter to SATA 22pin, enables to connect a SAS HDD with SFF 8482 port to a SAS compatible SATA controller (hybrid controller)
Conditions: New
Package Dimensions: Weight: 0lb 3oz, Length: 1in, Width: 7in, Height: 4inConnecting a SAS hard drive to a SATA motherboard requires meeting one of the following conditions; otherwise, it cannot be used:
1. The motherboard must support SAS
2. Alternatively, you must use an external SAS card
3. Or your SAS hard drive must support SATA modeThis product generally has two usage methods:
1. Separate the data and power connections from the SATA hard drive interface. Connect the data cable to the motherboard's SATA port and the power cable to the power supply. This allows direct connection. For SATA motherboards, some models require setting the BIOS to AHCI mode before use (select RAID mode if configuring RAID).
2. Separate the data and power connections from the SAS hard drive interface. Connect to the motherboard's SAS interface (SFF-8482) and power cable for direct connection. Friendly reminder: This product cannot be used to connect SAS hard drives to standard motherboard SATA ports, nor is such a cable available. SAS interfaces require dedicated chipset support, which cannot be achieved via cabling alone. Please verify this carefully (unless your SAS hard drive supports SATA mode, or your SATA motherboard incorporates SAS chipset support). SFF-8482 SAS to SATA Cable: SAS Hard Drive to Motherboard SATA Adapter with 15-Pin Power Connector. Converts SAS hard drives for direct connection to motherboard SATA ports. Enables standard motherboards to utilise high-speed SAS drives. Supports up to 6Gbps SATA 3 mode. Before purchasing, verify your hard drive manual confirms SATA mode compatibility – not all SAS drives are suitable.
Note
1. Due to a variety of factors such as monitor brightness and light brightness, the true color of the item may be slightly different from the picture on the website.
2. Please allow slight deviation of manual measurement data.
