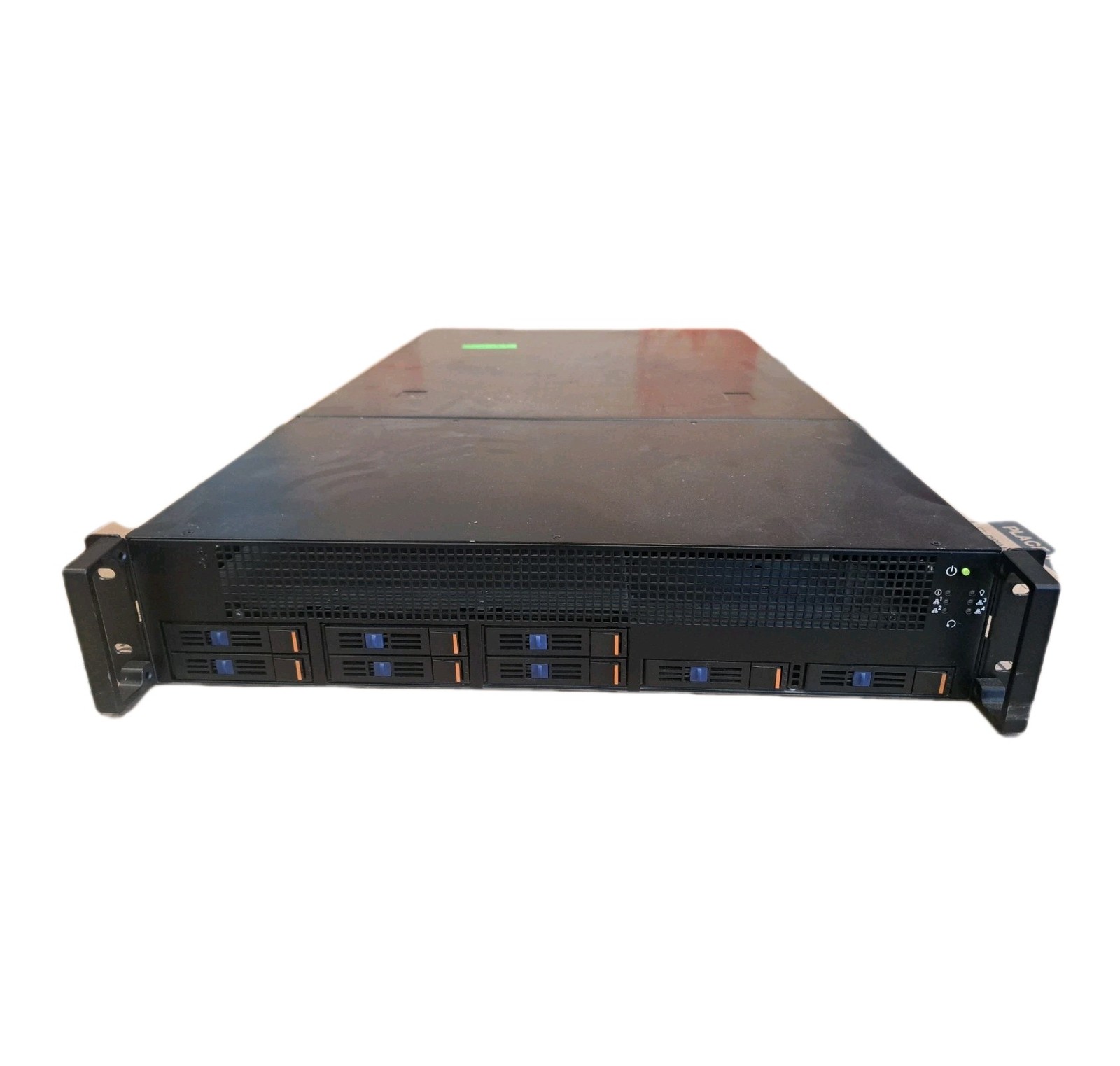

This listing is for 1 Advantech SKY 6200 GPU Server.This server supports 8 Single single slot GPU's or 4 Dual Slot GPUs that are full height with 6 pin power connectors.Server is currently equipped with `1 Xeon4215R Silver 2nd Generation Processor, 2 Delta 80 Plus Platinum 2000W 1 + 1 Redundant PSU's, and your selection of 0, 48, or 96GB of DDR4 PC-2666 ECC RDIMMs (You can choose your memory configuration in the variation menu). Server does not have any Hard drives or GPU'sAll servers are tested and working. These are OEM chassis that were used for offline video rendering, so no heavy AI use.If you would like to order a large quantity, feel free to send me a message and I can freight ship them.Buy with confidence! I stand behind what I sell and offer a return policy.Orders over 750$ will require a signature on delivery.From AdvantechSKY-6200
2U Intel® Xeon® Scalable GPU Server with 4x double-deck or 8x single-deck PCIe cards for AI model training and deep learning.
- Processor: Dual 2nd Gen Intel Xeon Scalable processors
- Memory: 24 x DDR4 2666/2933 MHz ECC RDIMM/LRDIMM / Intel Optane DC Persistent Memory, up to 6TB
- Remote Management: IPMI function support
- Expansion: Supporting 4 x PCIe x16 double-deck card + 1 x PCIe x8 single-deck FH/HL card or 8 x PCIe x8 single-deck FH/10.5" + 1 x PCIe x8 single-deck FH/HL card
- PSU: 2000W 1+1 redundant power supply with 80 PLUS Platinum level certification
Category
Specification
Processor System
Chipset: Intel C622
CPU Type
Dual Socket P LGA-3647 2nd Gen Intel Xeon Scalable processors, TDP up to 140W
BIOS
V2.00 or above required for 2nd Gen Xeon Scalable processors
Memory Type
24 x DDR4 2666/2933 ECC RDIMM/LRDIMM / Intel Optane DC Persistent Memory, up to 6TB
Graphics Controller
Aspeed AST2500
VRAM
64 MB
Expansion Slot - Left Riser Card Cage
Two PCIe x16 slot (Gen3 x16 link) or four PCIe x16 slot (Gen3 x8 link) for FH/10.5" expansion card
Expansion Slot - Middle Riser Card Cage
One PCIe x8 slot (Gen3 x8 link) for FH/HL card
Expansion Slot - Right Riser Card Cage
Two PCIe x16 slot (Gen3 x16 link) or four PCIe x16 slot (Gen3 x8 link) for FH/10.5" expansion card
Drive Bay - 2.5" Hot-swap
8
Drive Bay - 3.5" Front Accessible
Slim ODD 1 optional
Drive Bay - M.2 (2280)
1 optional
Ethernet Interface
2 x 10GbE + 2 x 10/100/1000 Mbps
Gigabit Ethernet Controller
2 x Intel I210AT + Intel X557-AT2 (dual 10GbE port)
Front I/O - USB
2 x USB2.0
Rear I/O - USB
4 x USB3.0
Rear I/O - PS/2
COM 1 cable optional
Rear I/O - Display
1 x VGA
Rear I/O - RJ-45
4 (1 x GbE + 1 x 10G lan are share NIC for IPMI)
Internal Connector
Type-A USB, COM 2, LPC 1
Watchdog Timer Output
System reset
Watchdog Timer Interval
Programmable, 1∼255 sec/min
Power Supply
80 PLUS Platinum 1+1 redundant Power Supply
Power Output Wattage
1000W @ 100∼127V, 1800W @ 200∼219V, 1968W @ 220∼240V
Input Range
AC 100 ~ 240 V
Cooling - Chassis Fan
Two 80 x 38 high speed fans for CPU, Four 80 x 38 high speed fans for UR/UL card cage
Air Filter
Yes
LED Indicators
Power Status, LAN Status, System information LED
Remote Management
Advantech Remote Monitoring Utility
Environment - Operating Temp
0 ~ 35 °C (32 ~ 95 °F)
Environment - Non-Operating Temp
-20 ~ 60 °C (-4 ~ 140 °F)
Environment - Operating Humidity
10 ~ 85% @ 40 °C
Environment - Non-Operating Humidity
10 ~ 95% @ 40 °C
Environment - Vibration (5∼500 Hz)
0.25 Grms operating, 2 G non-operating
Environment - Shock
10G with 11ms duration, half sine wave
Physical - Dimension (W x H x D)
438 x 88 x 760 mm (17.24" x 3.46" x 29.92")
Physical - Package Dimension
625 x 305 x 965 mm (24.6" x 12" x 38")
Physical - Weight
N.W. 24 Kg / G.W. 25.26 Kg
There servers are perfect for multiple uses such as
Application Area
Description
Artificial Intelligence & Machine Learning
Training large AI models, running deep learning algorithms, and processing natural language (NLP)
3D Rendering & Visual Effects
Processing computer-generated imagery (CGI), architectural designs, and real-time visual effects for the entertainment and design industries
High-Performance Computing (HPC)
Executing complex scientific simulations, weather forecasting, and molecular modeling
Video Processing & Streaming
Transcoding, editing, and encoding high-quality video content to ensure low-latency, real-time streaming
Virtual Desktop Infrastructure (VDI)
Accelerating graphics performance for remote workers who use resource-heavy applications like CAD software
