Supply Voltage: 6 - 12V DC, 9V recommended

Output Waveforms: Sine/ Triangle/ Square

PCB Board Size: 4.39*5.09*0.15cm

Function:

NE555 Multi-Waveform Generator, can generate Sine/ Triangle/ Square

triangle wave, sine wave four kinds of waveforms. Through the jump cap to select a waveform output

, amplitude adjustable. Simple circuit, easy to operate, can exercise the welding

production ability, at the same time suitable for electronic enthusiasts to make oscilloscopes and other instruments

with the use of.

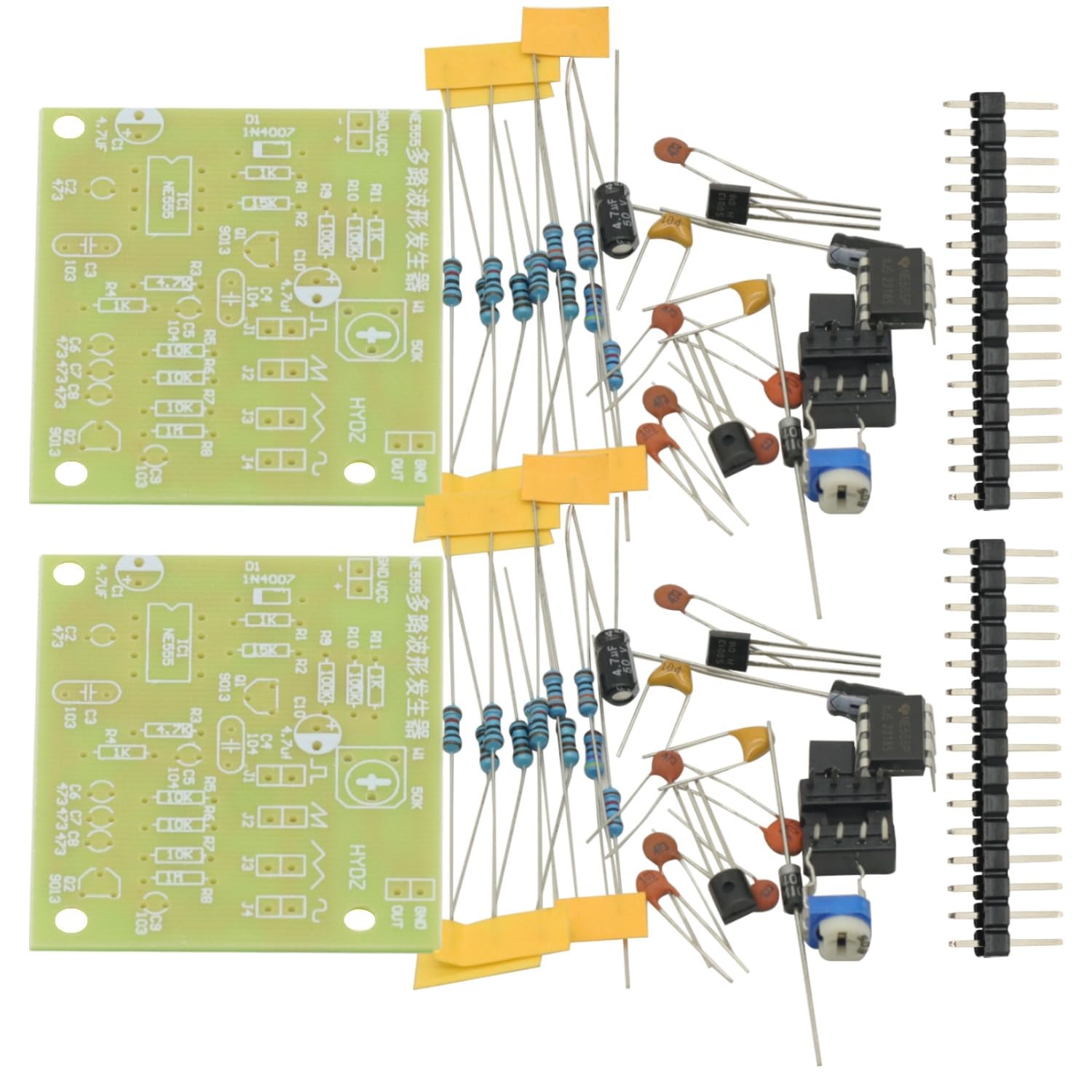

2pcs Sine Triangle Square Wave NE555 Multi-Channel Waveform Generator Module DIY Kits
Output Waveforms: Sine/ Triangle/ Square
PCB Board Size: 4.39*5.09*0.15cm
Supply Voltage: 6 - 12V DC, 9V recommended
