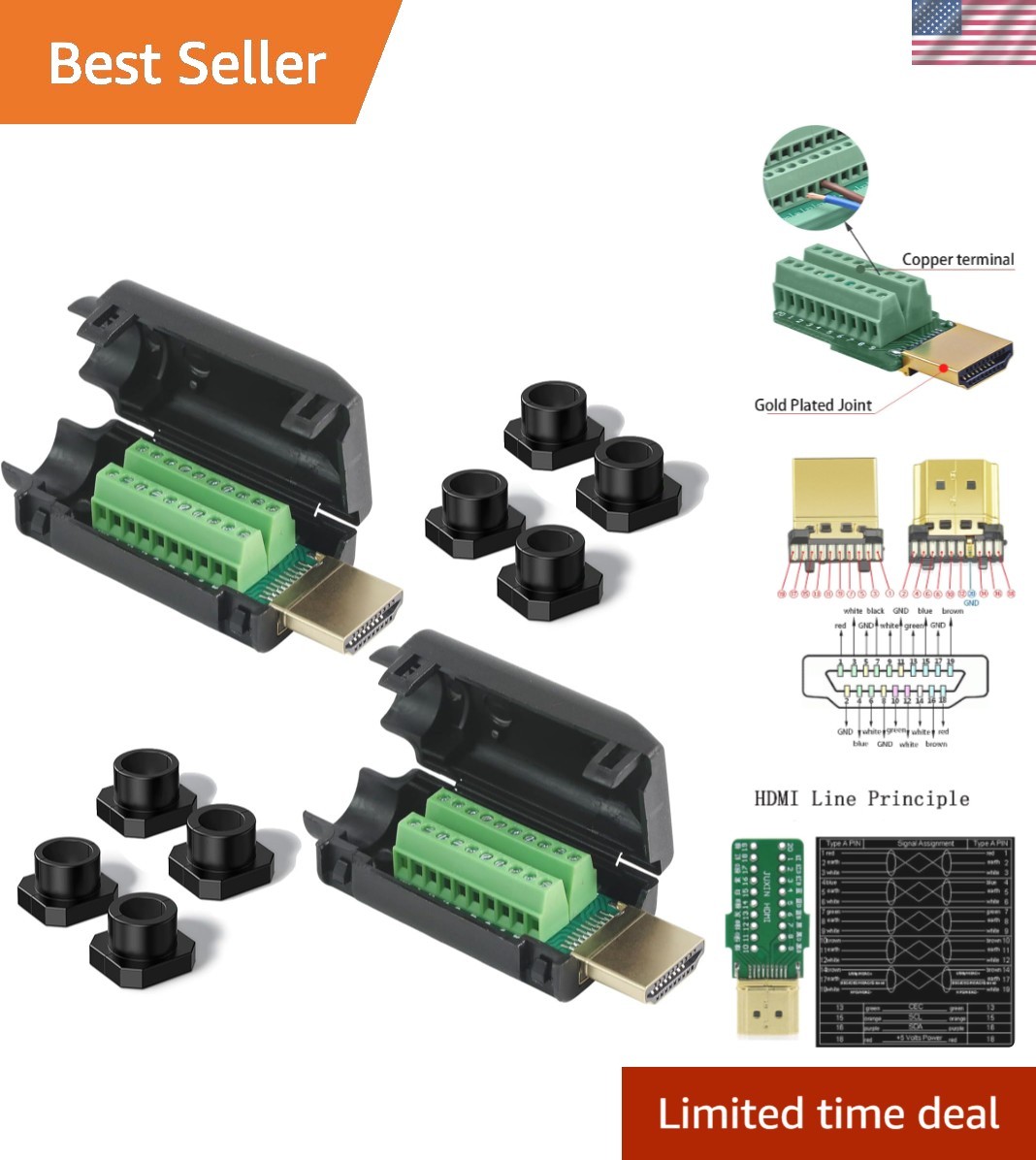

2Pcs HDMI Solderless Male Quick Connector, Port Terminal Solderfree Breakout Connector Board with Case Accessories WIDELY APPLICATIONS:Mainly used in plasma TV, HD player, LCD TV, rear projection TV, projector, DVD recorder/player, D-VHS recording/player and digital audio and video display device for video and audio signal transmission. DURABLE: Copper cored gold-plated joints are used for durability, plugging resistance and good contact, clearer picture quality. It adopts all-copper environmental protection copper terminal, which has good transmission and allows current of 10A. RELIABLE: Each product is equipped with a nail clips, 5mm, 7mm, 9mm, 10mm 4 different sizes of tail pipe. Make sure that the cable is pulled in use without causing dropped wires or poor contact. No Soldering Required. Adopt environmentally friendly insulated terminal block. Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten. All the pins are clearly labeled. NOTE:The wiring diaphragm is for reference ONLY！Hdmi cable has different color coding,multimeter to tone out the wires that you own before purchase or feel free to contact me. Durable Copper cored gold-plated joints are used for durability, plugging resistance and good contact, clearer picture quality. It adopts all-copper terminal, which has good transmission and allows current of 10A. No Soldering Required Copper base terminal block. Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten. HDMI Line Principle All the pins are clearly labeled, which is really nice because we keep forgetting the order. HDMI Wiring Diagram DURABLE No Soldering Required HDMI Line Principle HDMI Wiring Diagram See More  |
|
