Power supply mode:3.3V external power supply, current should be more than 200mA;

Control interface:The TTL level, 3.3V SPI interface;

PCB size:23 x 25 mm;

Mechanical Dimensions:28.5 x 23 x 24;

Function features:

Supports up to 8 Socket

Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocol

Integration of the data link layer, physical layer

Support the wakeup

Support high speed serial peripheral interface (SPI model 0, 3)

Internal 32K bytes receive buffer

The embedded 10BaseT/100BaseTX Ethernet physical layer (PHY)

Support auto negotiation (10/100-Based full duplex or half duplex)

Does not support the IP patch

The working voltage of 3.3V, I/O and 5V voltage signal

LED display (full duplex or half duplex, network connection, network speed,active)

Pin type package ultra small, convenient for embedded applications

Application of C sample project

Package includes:

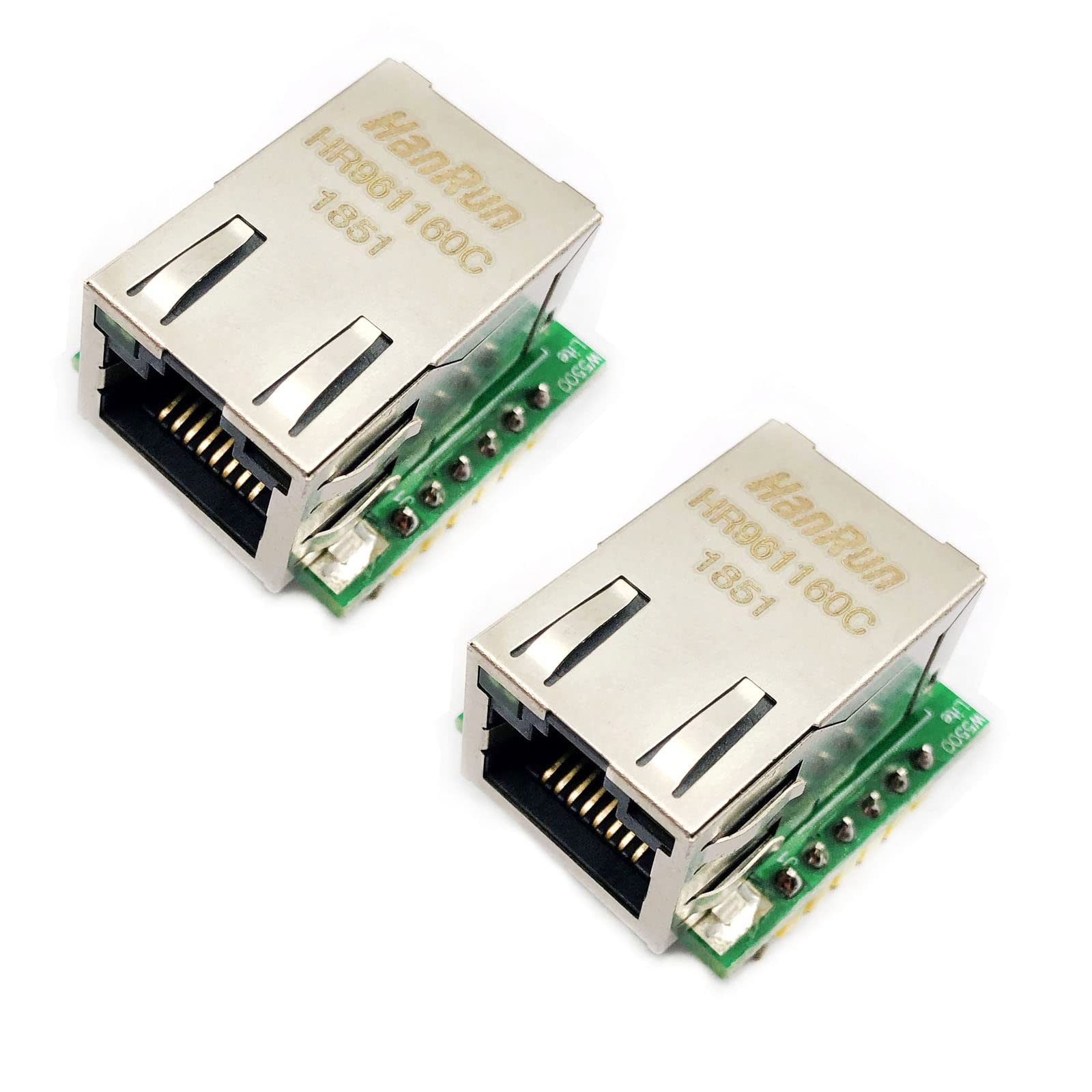

2PCS x USR-ES1 W5500 Chip

High speed SPI interface 80MHz; Supports up to 8 Socket
USR-ES1 is the Ethernet module of a SPI interface, interface is TTL level of 3.3V, power supply voltage of +3.3V, please ensure that the current is not less than 200mA, voltage is continuous and stable +3.3V.
Power supply mode:3.3V external power supply, current should be more than 200mA;
High speed SPI interface 80MHz
Hardware-TCPIP-protocol stack user built in, almost without understanding the complex network
