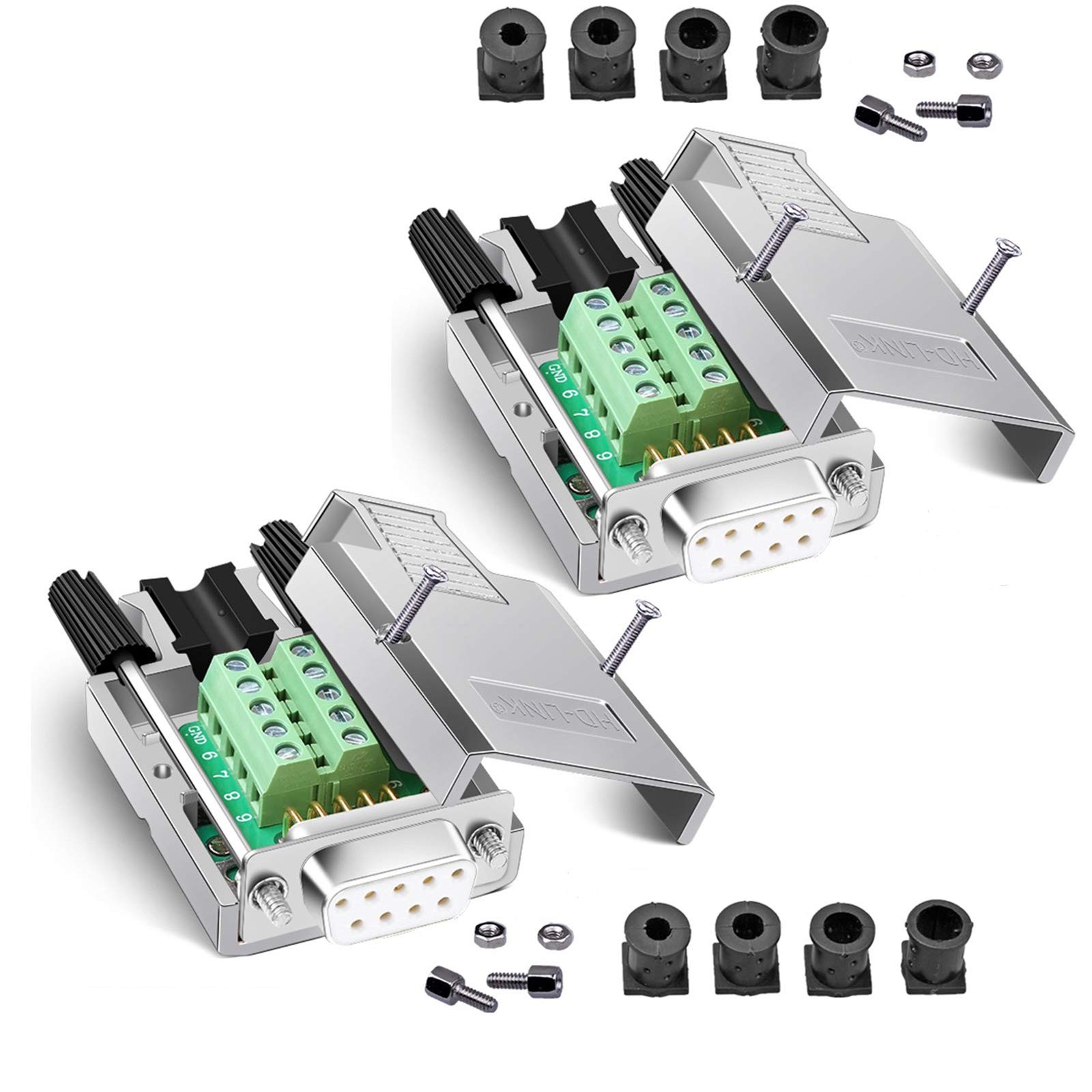

These DB9 Female Solderless Connectors are used to terminate the connection of a cable and facilitate commissioning equipment of project. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life.
Technical Specifications:
Name: Thin DB9 solderless module
Plug : female
: housing, screw, card line buckle
Connector material: pure copper plated joint
Material: Copper
Housing material: alloy metal shell
Shell : Screw lock
Pin Pitch: 3.81mm/0.15in
Cable Specification: 28-16 AWG/0.15-1.5mm2
Torque: 0.2Nm (1.7Lb-In.)
Opening size (cable port): 10.5mm/0.41″
Thickness: 16mm/0.63″
Application: tax control machine, digital , PLC, PDA, MODEM, set-top , barcode machine, industrial instrumentation, etc.
Size: 49 mm×35 mm×16 mm/ 1.93″×1.38″×0.63″
Package includes:
2 x DB9 Solderless Connectors

4x Lock screws
4x Long bolts
2x 5mm tail pipe
2x 6mm tail pipe
2x 7.5mm tail pipe
2x 8.5mm tail pipeDURABLE: Pure copper plated joints, fine solder joints, resistance to plug, and good to ensure high-quality, durability and a long life. Alloy Metal Shell: Anti-pressure; Anti-intreference; Anti-high temperature.
No Soldering Required: Adopt environmentally friendly insulated terminal block. Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.
SCREW LOCK: The shell is locked with screws and nuts, which can avoid the disadvantages of not closing the shell tightly or large gaps.
RELIABLE: Each product is equipped with 5mm, 6mm, 7.5mm, 8.5mm 4 different sizes of tail pipe. Make sure that the cable is pulled in use without causing dropped wires or poor .
WIDELY APPLICATIONS: It can connect all kinds of serial devices. Such as computer and tax control machine, digital , PLC, PDA, MODEM, set-top , barcode machine, industrial instrumentation and other equipment for communication.
