Technical Specifications:

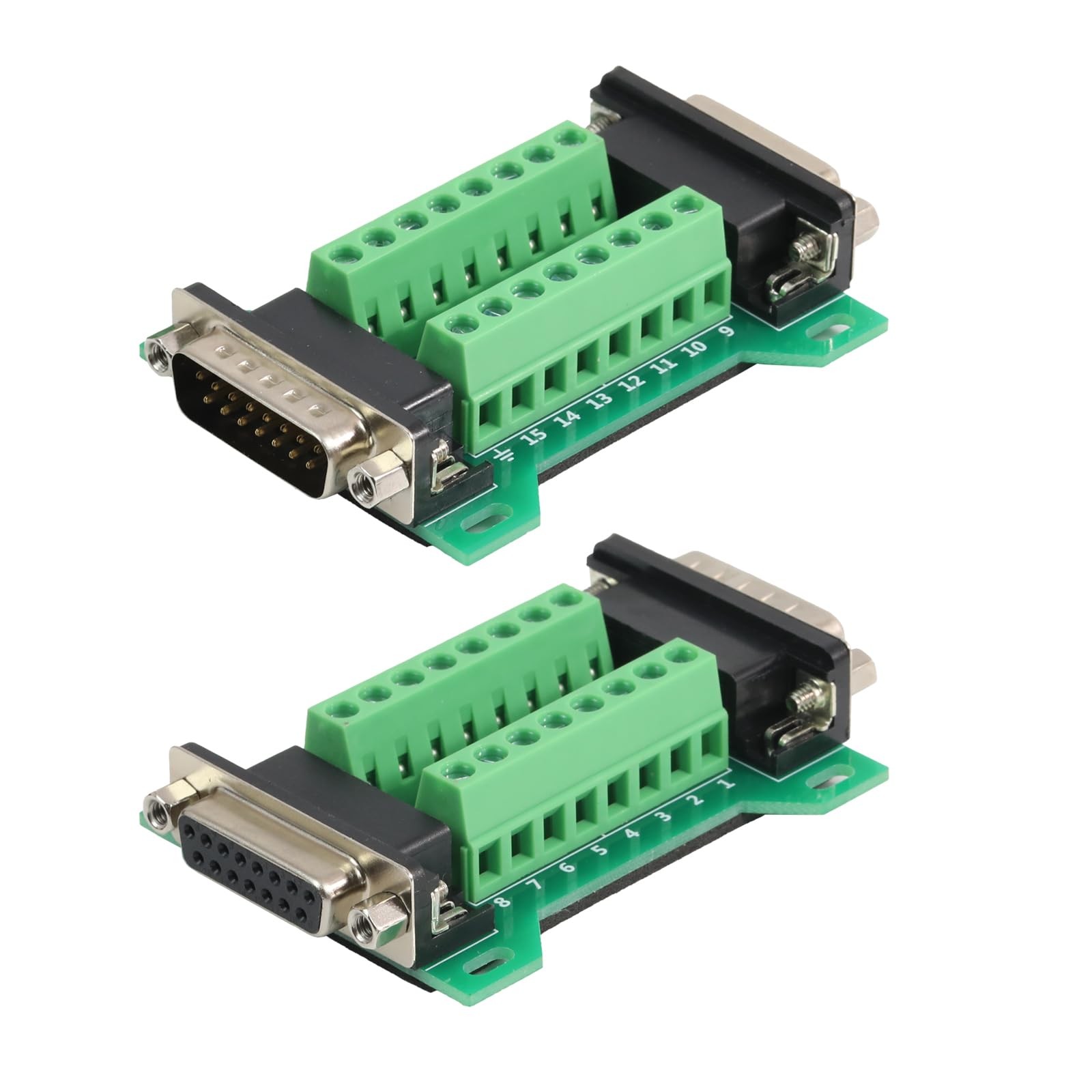

Name: DB15 Male Female solderless module
Plug type: One Male, one Female
Joint material: pure copper plated joint
material: Copper
Screws: Steel, Cr3+ Zn plated
PCB material: FR4
Max current: 0.8A
Withstand voltage: 300V AC/minute
Pin pitch: 5.08mm/0.2in
Strip length:7-8mm
Wire range: 22-12AWG
Torque: 0.4Nm (3.5Lb-In.)
Size: 82mm x Package includes:
2 x DB15 Female and Male Connector in One Breakout Board
【Durable】Pure copper gold plated joints, plugging resistance and good . Adopts copper terminal, which has good transmission and not attenuation signal.
【Hommization】All signal ports are clearly named and labeled on both sides of the board for quick wiring.
【Easy to use】Solderless male and female modules are detachable, no need for soldering iron and cumbersome tools, easy wiring.
【No Soldering Required】Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.
【Widely Application】DB15 solderless Connector can be used for automatic control equipment, industrial control equipment, cash register, tax control machine, computer, etc.
