1.Main Parameters
Product Name

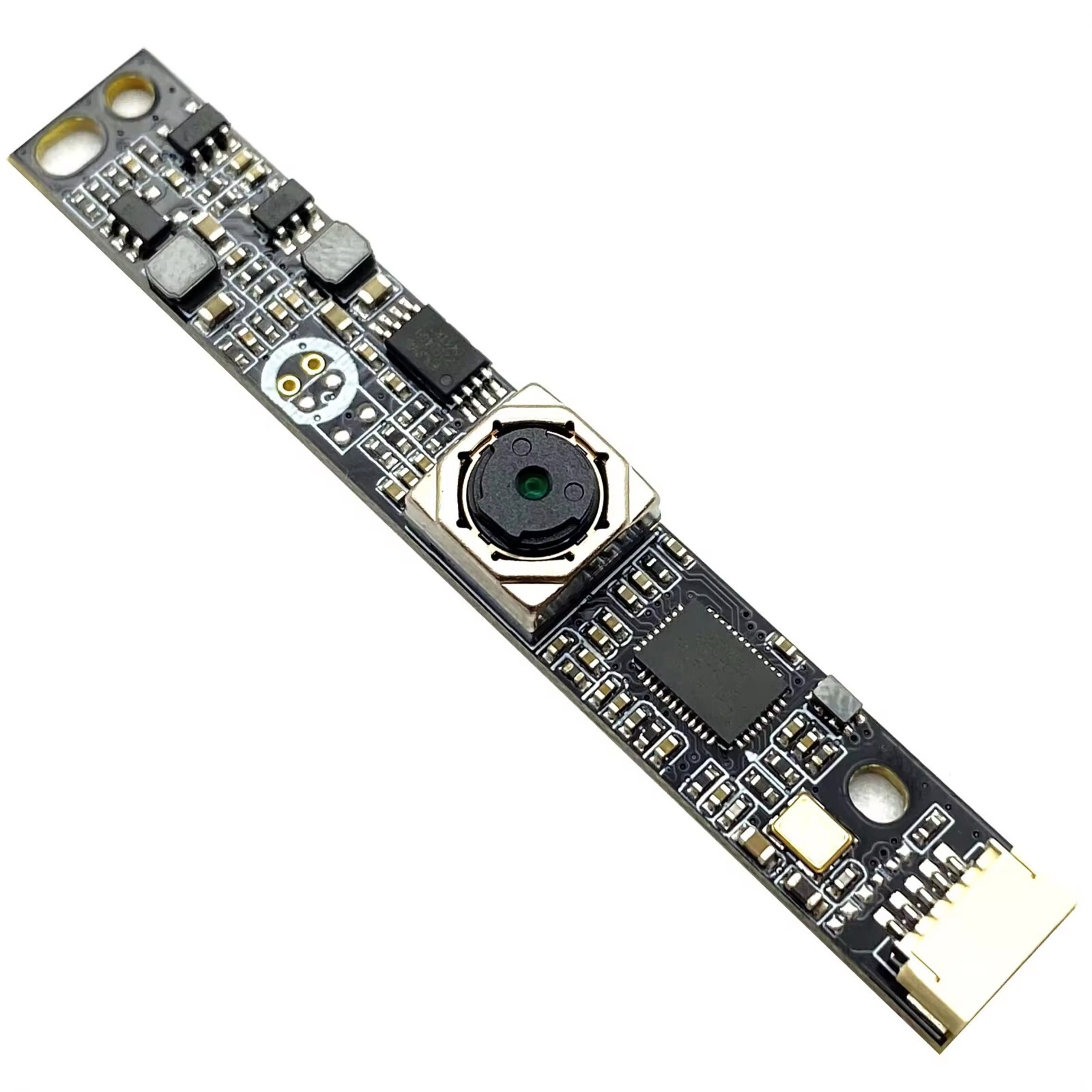

Full HD 1080P USB2.0Camera Module
Product Code
WN-L2204K325L
Module Size
62*9MM
Image Sensor
1/4-inch OV5693 CMOS Sensor
Max. Resolution
1920 H x 1080 V
Pixel Size
1.4*1.4μm
Output Format
MJPEG, YUY2
Field of View
75°
Lens
EFL:2.94mm F/no:2.0 4P
Audio Input
Digital mic
Focus Mode
Autofocus/Fixed focus
Scanning Speed
0.1s
Output & Power Supply
High Speed USB2.0
Interface
5 PIN 1.0MM Socket
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS
UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.
Connection Cable
Default1.0 Meter USB Cable
2.Supported Resolutions and Frame Rates
Formats
Resolutions
Frame Rates
MJPEG
30FPS
1280x720 (720P)
30FPS
640x480 (VGA)
30FPS
YUY2
5FPS
8FPS
640x480(VGA)
30FPS
3.PIN Definitions
Pin No.
Signal Names
Descriptions
1
VCC
5V Power
2
DM
USB2.0Data-
3
DP
USB2.0 Data+
4
GND
GND
5
GND
GND
4.Working Conditions
Working Voltage
USB DC+5VSupply
Working Current
170mA
Working Temperature
-20°C ~ 70°C
Storage Temperature
-20°C ~ 85°C
Humidity
80 ~85%
