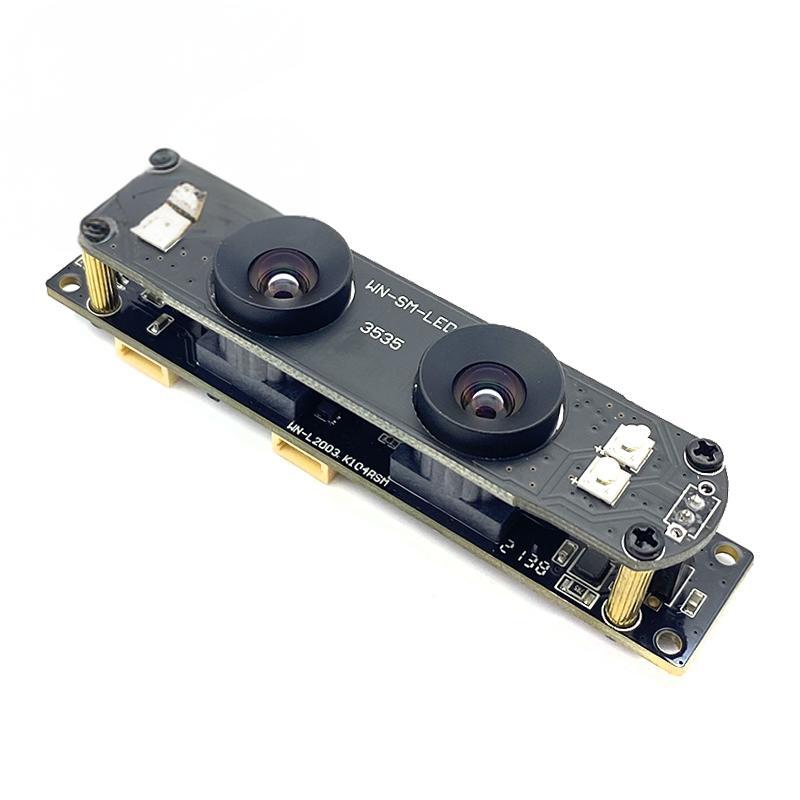

2MP USB2.0 Camera Module
this 2MP USB camera module adopts the 1/2.7-inchCMOS Sensor image sensor with maximum resolution of 1920H*1080Vat 60fps frame rate. Mini size, 75° FOV, high speed USB2.0 interface, default 1.0 meter USB cable, UVC-compliant, plug and play.1.Camera Module Key Parameters
Items
Color Camera
IR B/W Camera
AGC/AEC/Whiter balance
Auto
Auto
Sensor
1/2.7-Inch CMOS , AR0230 HDR
1/2.7-Inch CMOS , AR0230 HDR
Pixel Size
3.0*3.0µm
3.0*3.0µm
Max Resolution
1920 H x 1080 V
1920 H x 1080 V
Shutter Type
Electronic Rolling Shutter
Electronic Rolling Shutter
FOV
75Degreewithout Distortion
75Degreewithout Distortion
IR LED
/
850NM Infrared Band
Output & Power Supply
USB2.0, USB Bus Power Supply
USB2.0, USB Bus Power Supply
Image Color
Color
B/W
Microphone
Digital Microphone
Digital Microphone
Type of Focusing
Manual/ Fixed Focus
Manual/ Fixed Focus
Scanning Speed
0.1S
0.1S
Module Size
80*17mm
Supported System
Windows, Android, Linux, Mac OSX
Digital Mic
Support
Support
Video Stream Format
MJPEG, YUY2
MJPEG, YUY2
2.Supported Resolution and Frame Rate
Format
Resolution
Frame Rate (USB2.0)
MJPEG
1920x1080 (1080P)
30FPS
1280x720 (720P)
30FPS
800x600(WVGA)
30FPS
640x480 (VGA)
30FPS
YUY2
1920x1080 (1080P)
5FPS
1280x720 (720P)
10FPS
800x600(WVGA)
20FPS
640x480 (VGA)
30FPS
3.PIN Definition
Pin No.
Signal Name
Description
1
VCC
5V Power
2
DM
USB2.0 Data-
3
DP
USB2.0 Data+
4
GND
GND
5
GND
GND
4.Working Condition
Operating Voltage
USB DC +5V Supply
Operating Current
RGB: 80mA IR: 270mA
Operating Temperature
-20℃~ 70℃
Storage Temperature
-20℃~ 85℃
Humidity
80 ~85%
