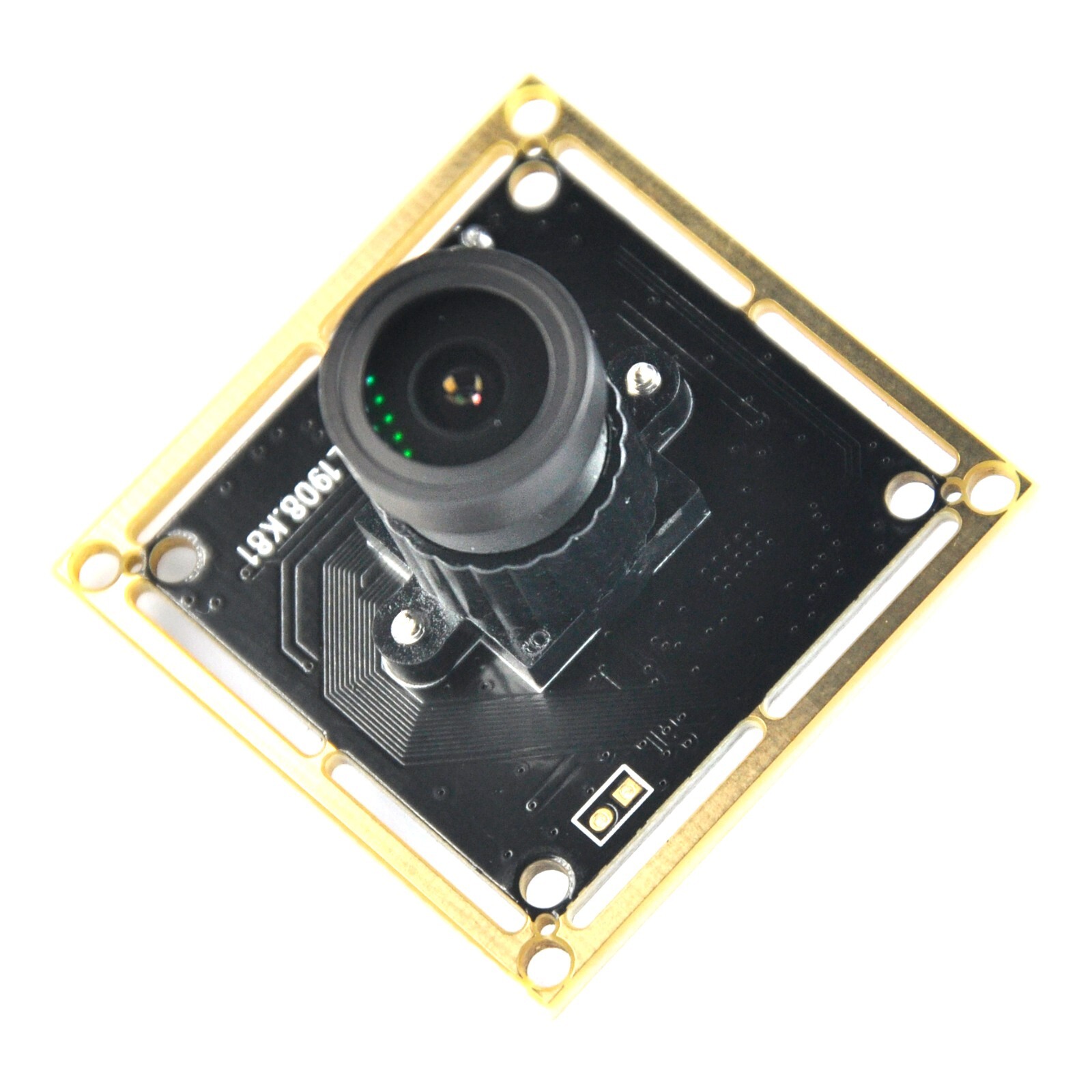

2MP 1080P USB2.0 Camera Module
Weinan Electronics this 2MP USB camera module adopts the 1/2.9-inchGC2053 CMOS image sensor with maximum resolution of 1920×1080at 30fps frame rate. Mini size, 100° FOV, high speed USB2.0 interface, default 1.0 meter USB cable, UVC-compliant, plug and play.Main Parameters
Product Name
2MP 1080P USB2.0 Camera Module
Product Code
WN-L1908.K8
Module Size
38*38mm
Image Sensor
1/2.9-Inch GC2053 CMOS Sensor
Max. Resolution
1920 H x 1080 V
Pixel Size
2.8*2.8μm
Output Format
MJPEG, YUY2
Field of View
100°
Lens
F:2.8mm F/NO:2.4, 2G2P+650IR
Focus Mode
Fixed Focus
Shutter Mode
Electronic Rolling Shutter
Output & Power Supply
High Speed USB2.0
Interface
4PIN 2.0mm Connector
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS
UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.
Connection Cable
Default1.0 Meter USB Cable
Supported Resolutions and Frame Rates
Formats
Resolutions
Frame Rates
MJPEG
1920x1080 (1080P)
30FPS
1280x720 (720P)
30FPS
8000x600 (WVGA)
30FPS
640x480 (VGA)
30FPS
YUY2
1920x1080 (1080P)
5FPS
1280x720 (720P)
10FPS
8000x600 (WVGA)
20FPS
640X480 (VGA)
30FPS
Working Conditions
Working Voltage
DC 5V
Working Current
160mA
Working Temperature
-15°C ~ 60°C
Storage Temperature
-20°C ~ 85°C
Humidity
80 ~85%
