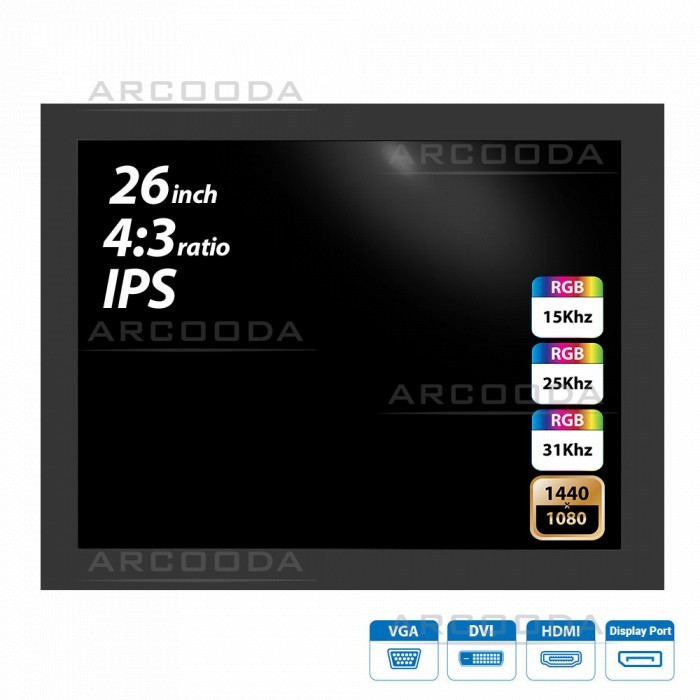

26 inch Arcooda 4:3 Ratio LCD Monitor 15khz 24khz 31khz up to 1440x1080 Description

A professional 26 inch LCD monitor with 4:3 viewing ratio, our Arcooda monitor supports 15khz 24khz 31khz, and high definition up to 1440x1080 resolution. With VGA, DVI, HDMI, Displayport inputs, together with a 1.5ms low monitor lag response time, it has been designed as a direct replacement for CRT tube monitors.

ARCADE MACHINE & GAMING INDUSTRY

supports multiple variations of 15khz, 25kz, 31khz, arcade gaming resolutions.

latest firmware, over 10 years of constant firmware upgrades offering the widest possible support for most arcade game boards on "plug and play basis". From Sega Model 2 and 3 game boards, to Neo Geo, Namco System 256, Sega Triforce and your standard JAMMA arcade game boards.

auto picture function that works, tuned with real arcade game boards. Just press the auto button for perfect centering of your arcade picture.

multiple mounting options including angle brackets (included) rear mounting connection, and VESA mount. This offers the widest mounting options.

breakoutOSD monitor control board. Mount the monitor adjustment board where it matters, in front of you.

RGB adapter PCB for plug and play with almost any CRT tube monitor wiring. This board also offers fine tuning of color via red, blue, green color potentiometers

full angle viewing is perfect for all arcade machines.

multiple screen adjustments including picture rotate function.

This is ourrecommended 26inch monitor for arcade machinerestoration/building as color reproduction has been tuned to our highly regarded 32inch 16:9 ratio arcade monitor.


HOME RETRO & PC GAMING

1.3ms display lag

over 160 pre-programmed PC input modes including 240p, 480p, 720p, up to 1440x1080

Freesync, Ultra HDR, DDCCI, UltraVivid, plus other monitor display settings

offering full display angle viewing with 16.7M color reproduction, 1200:1 contrast ratio

VESA mounting for easy desktop mounting

connect Steam or other gaming libraries via Displayport, for HD gaming

connect breakout speakers via the 3.5mm audio jack

remote control function

PLEASE NOTE: this monitor has a wider bezel. Please refer to photos.

The Arcooda arcade monitor firmware has been refined over many years.

Detailed Specifications

• Manufacturer Acooda
• Manufacturer Part No 20218
• Monitor Size : 26 inches
• Display Lag : 1.3ms
• Resolutions : 160+ pre-programmed settings including 15Khz/24khz/31Khz, 240p, VGA 640x480 to 1440x1080
• Backlight: WLED
• Display Mode : IPS
• Inputs : VGA, DVI, HDMI, DisplayPort
• Colour Depth : 8bit, 16,7 M colours
• Pixel Format : 1440 horizontal x 1080 vertical Pixel
• Luminance : 400 cd/m² (Typ.)
• Contrast Ratio : 1200 : 1 (Typ.) (TM)
• Refresh Rate : 60Hz
• Viewing Angles : 89°/89°/89°/89°
• Viewing-area Dimensions (cm's) : 52.5 x 39.4
• Physical Dimensions (cm's) : 59.5 x 46.4 x 8
• Power : +12vDC 3.5A (100-240vAC)
• Operating Temperature : TOP 0~50 °C 1
• Storage Temperature : TST -20~60 °C 1
• Operating Ambient Humidity : HOP 10~90 %RH 1
• Storage Humidity : HST 10~90 %RH 1

Includes:

• 1 x 26 inch 4x3 Arcade LCD Monitor with powder coated steel frame
• 4 x Angle Bracket
• 1 x VGA Cable
• 1 x HDMI Cable
• 1 x 12 volt Power Supply for US outlets

• 1 x Remote Control with Monitor Infrared Sensor Set

• 1x LCD OSD Monitor Adjustment Board
• 1x Monitor Adjustment Board 1.6m Extension Cable

• 1x RGB to VGA Adapter Board for Jamma
