【Product Description】

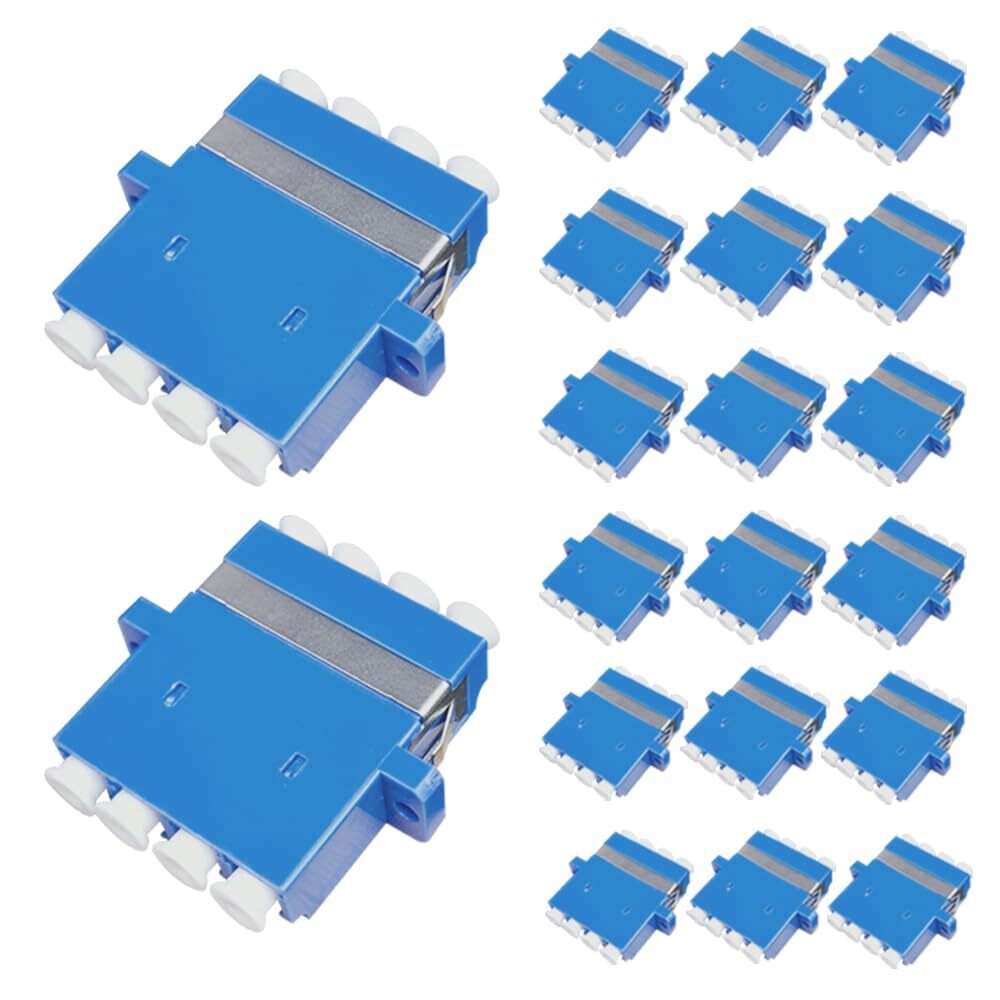

-The LC to LC Coupler is a small device designed to mount in standard rectangular cut out style panels, and It can be used to link Optical Fiber cables or fiber connectors between two Optical Fiber Lines.
-The LC to LC Coupler features a dust cap to protect the fiber installation from debris and other contaminants that can ensure the optimal functionality.
【Coupler Specifications】
Product Type: 4 channels LC-LC with screw mounting wing
Fiber Type: Single mode UPC
Coupler Type: Female to Female
Insertion Loss: ≤0.2dB
High Interchangeability: ≤0.25db
High Repeatability: ≤0.15db
Operating Temperature: -20~70℃
【Main Parameter】Coupler interface: 4 channels LC-LC with screw mounting wing, End-face type: single-mode UPC, Operating temperature: -20~70℃.
【Effective Isolation】The Coupler can effectively isolate the signal field from the main control end, prevent accidental damage of the main control system, and effectively inhibit the noise of the ground circuit.
【High Reliability】The Coupler internal adopt high-precision zirconium ceramiccore (low insertion loss ≤0.2db, high echo loss≥25db), to ensure maximum connection between the optical fiber jumpers.
【High Interchangeability】The Coupler has good interchangeability (≤0.25db) and repeatability (≤0.15db), which can be plugged more than 1000 times.
【Wide Application】The Coupler can widely used in server rack, patch panel, optical distribution frame (ODF), CATV, optical fiber broadband access network, etc.
