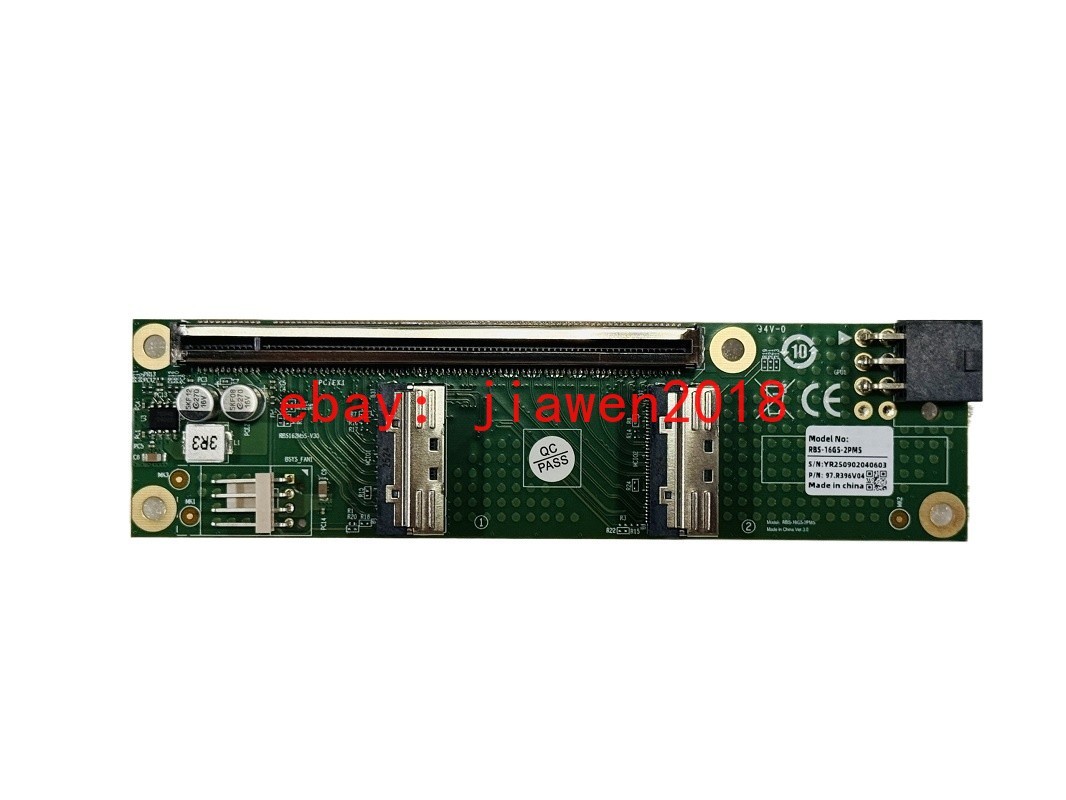

Key Features

■ two 56G PCIe5.0 MCIO 8i input

■one PCIe x16 electrical/mechanical output

■PCIe gen5 - high quality Amphenol SMT slot,

■ 85OhmUltra Low Loss PCB

■ can work in x8 mode with one cable (input near the power plug)

■ can work in x16 mode with both inputs connected (must be the same CPU host port and lane ordering must be 0-7->8-15, NOT 8-15->0-7, switching the cables will help!)

■GPU Power connector to supply 12V. DO NOT connect the wrong power connector, it will destroy the Adapter and your GPU!!!

■6A 12V->3.3V buck voltage regulator

Product Type

Power Connector

ATX 2*3 GPU Mini fit 5569

DeviceCount

1 PCIe AIC

Host Connectors

2 MCIO 74Pin

Physical Dimensions

138.5mm*38mm

weight

250g

Operating Voltage

+12V +/-8%;

Environmental

Operating: 0°C to 70°C

Storage: -40°C to 70°C

5 to 90% non-condensing

Option

MCIO 8i to MCIO 8i Cable L=800mm

MCIO 8i to SFF-8654 8i Cable L=1000mm

•
