SpecificationELECTRICAL SPECIFICATIONS
Frequency Impedance50ΩHorizontal 3dB Beam Width

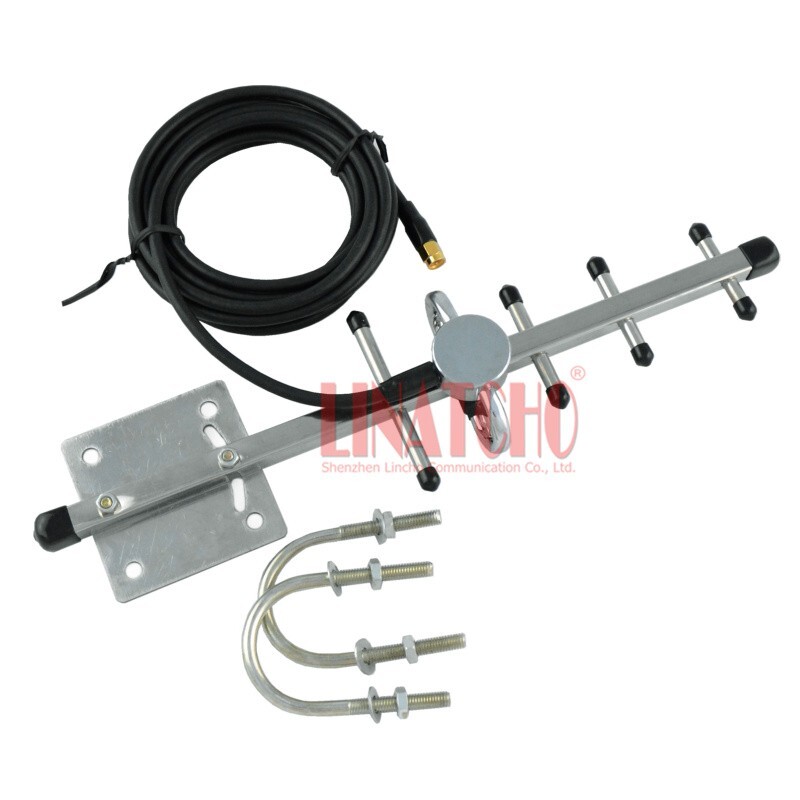

36°Vertical 3dB Beam Width23°Maximum Power ProtectionDirect GroundMaximum wind speed200m/sMECHANICAL SPECIFICATIONSConnector TypeSMA maleNet Weight0.58kgCable Type3M RG58U cableRadiating Element MaterialStainless SteelElement5 UnitsSize33*9*5cmHold Pole Diameterφ40-φ60(mm )Products DescriptionYagi Antenna series designed primarily for directional applications, Point to point systems. The wide band antenna ideally suited for 2.4GHz Cellular band, Wireless WLAN systems, Point to multipoint applicationsThe Yagi directional Series antenna system offered by LINCHO Communications is constructed of Stainless steel for outstanding service life. Individual elements are riveted with stainless steel rivets to the main boom for permanent attachment. These antennas have high gain and good front to back performance to minimize external interference. They can be mounted in vertical or horizontal polarization. Provides the user with anodized aluminum boom, solid elements, Heavy duty mounting hardware, featuring a Waterproof Design for all-weather operation.
