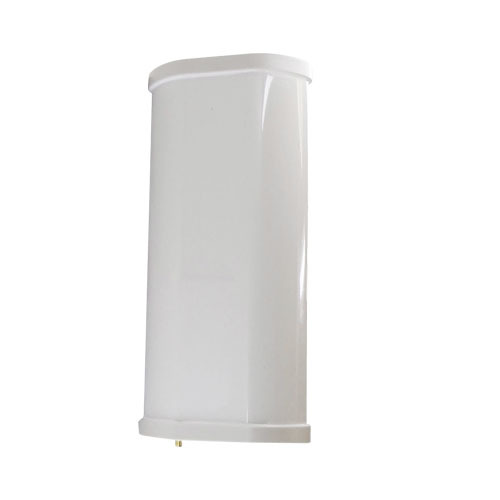

2.4GHz 802.11bgn 12dBi Vertical Polarized Sector Antenna RP-SMA Female
Part#: ANT-S2412-90
Overview:
This very high performance 2.4GHz directional WiFi sector antenna provides broad coverage and 12dBi gain. It is ideally suited for 2.4GHz IEEE 802.11b, 802.11g and 802.11n wireless LANs, Bluetooth , public wireless hotspot applications and other outdoor applications where wide coverage is desired.
Features and Specs:
Frequency Range 2400~2483MHz Gain 12dBi VSWR 1.5:1 Max Impedance 50 Ohm Polarization Vertical HPBW/Horizontal 90 HPBW/Vertical 10 Power handling 50W RF Connector RP-SMA Female Temperature -40 C~+80 C Waterproof Yes Antenna Weight 1.25lbs Dimensions (LxWxD) 278 x 128 x 54mm (10.9" x 5" x 2.1")
SMA Connectors
Male central Pin
Female central Receptacle
Inside Thread
(outer nut/shell) SMA Plug / SMA Male Reverse SMA Plug / Reverse SMA Male / RP-SMA Male Outside Thread Reverse SMA Socket / Reverse SMA Female / RP-SMA Female SMA Socket / SMA Female
Package Content:
Warranty: 1 year
Return Policy: All returns due to the wrong purchasing, mistake or change of mind are subject to a 30% deduction of the original purchase price (shipping fee is not refundable), the fee is to cover the 2 way shipping fees for shipping to you and getting back. Please read the description thoroughly to ensure it is the right product for you. Please feel free to ask if you have any question prior placing the order. Thanks!
