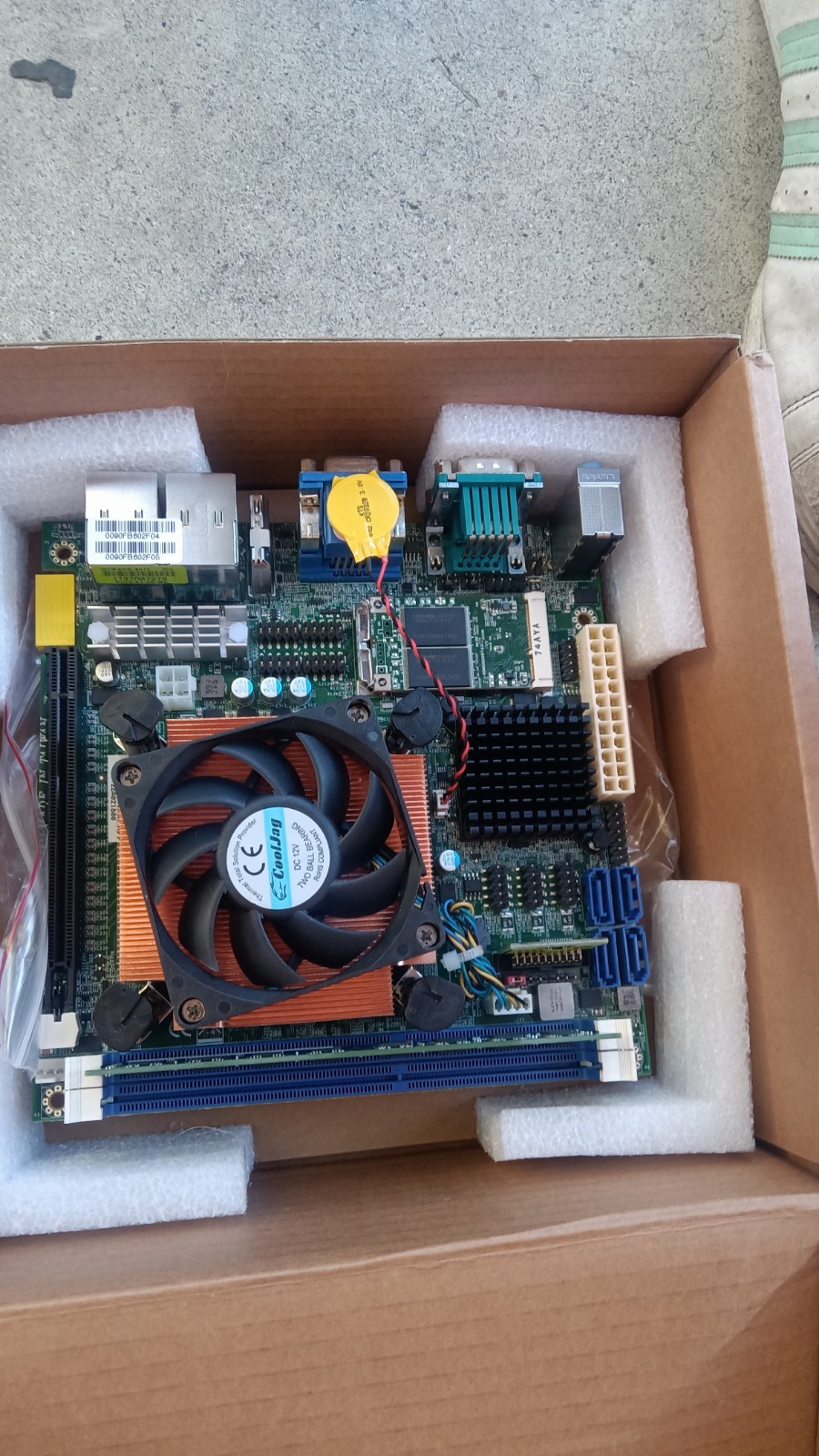

The Portwell WADE‑8015 is an industrial-grade Mini-ITX motherboard designed around Intel's 4th Gen (Haswell) architecture. It's a well-rounded platform for embedded systems, kiosks, automation, medical equipment, defense applications, and more.
CPU Socket: Intel LGA‑1150 supporting 4th Gen Core i5/i7 CPUs
Chipset: Intel Q87 PCH
Memory: 2x 240‑pin DDR3 slots, up to 16 GB at 1333/1600 MT/s
PCIe Slots: 1x PCIe 3.0 x16 for GPUs or other cards; 1x Mini‑PCIe (mSATA support); additional PCIe x1 via gold finger
SATA: 4x SATA III ports (6 Gb/s), supporting
Triple‑Display Outputs: VGA, DisplayPort, HDMI
Networking: Dual Intel GbE (I217LM + I210AT)
USB Ports: 4× USB 3.0 (rear), 6× USB 2.0 (onboard)
Serial Ports: 6× COM (2 on rear panel, 4 via internal headers)
Audio: Realtek ALC886-GR, 5.1‑channel via HD Audio + line-in/out/mic jacks
PS/2 for keyboard/mouse, plus 8‑bit programmable GPIO
System Management & Reliability
Phoenix UEFI BIOS, hardware watchdog (0.5–254s configurable), system temperature/fan/power monitoring, and alerts for fan failure or voltage/thermal events
Certified CE/FCC Class A; MTBF rated over 120,000 hrs at 40 °C
Physical & Power
Form Factor: Standard Mini‑ITX, 170×170 mm
Power Input: ATX 24‑pin
Operating Temp: 0–60 °C; Storage: –20–80 °C; Humidity: 5–90% non-condensing
This board excels in industrial and embedded environments, especially when you need:
High-performance Intel CPUs
Multiple expansion options (GPU, storage, wireless cards via Mini‑PCIe)
Legacy COM ports
Triple-display support
Rugged I/O and onboard environmental monitir
Processor & RAM not included—you'll need compatible LGA‑1150 i5/i7 CPUs and DDR3 modules.
Industrial orientated: bulkier features like COM ports and robust monitoring add complexity compared to consumer boards
Likely expensive or hard to source new but we have it .The Portwell WADE‑8015 is a robust Mini-ITX embedded motherboard ideal for demanding industrial applications requiring modularity, legacy I/O, and environmental resilience. If you’re building a rugged system or need Intel Haswell compute with expansion flexibility, this board fits perfectly.
Let me know if you'd like guidance on sourcing CPUs, memory, or accessories compatible last one these are selling for trip on the same platform..
