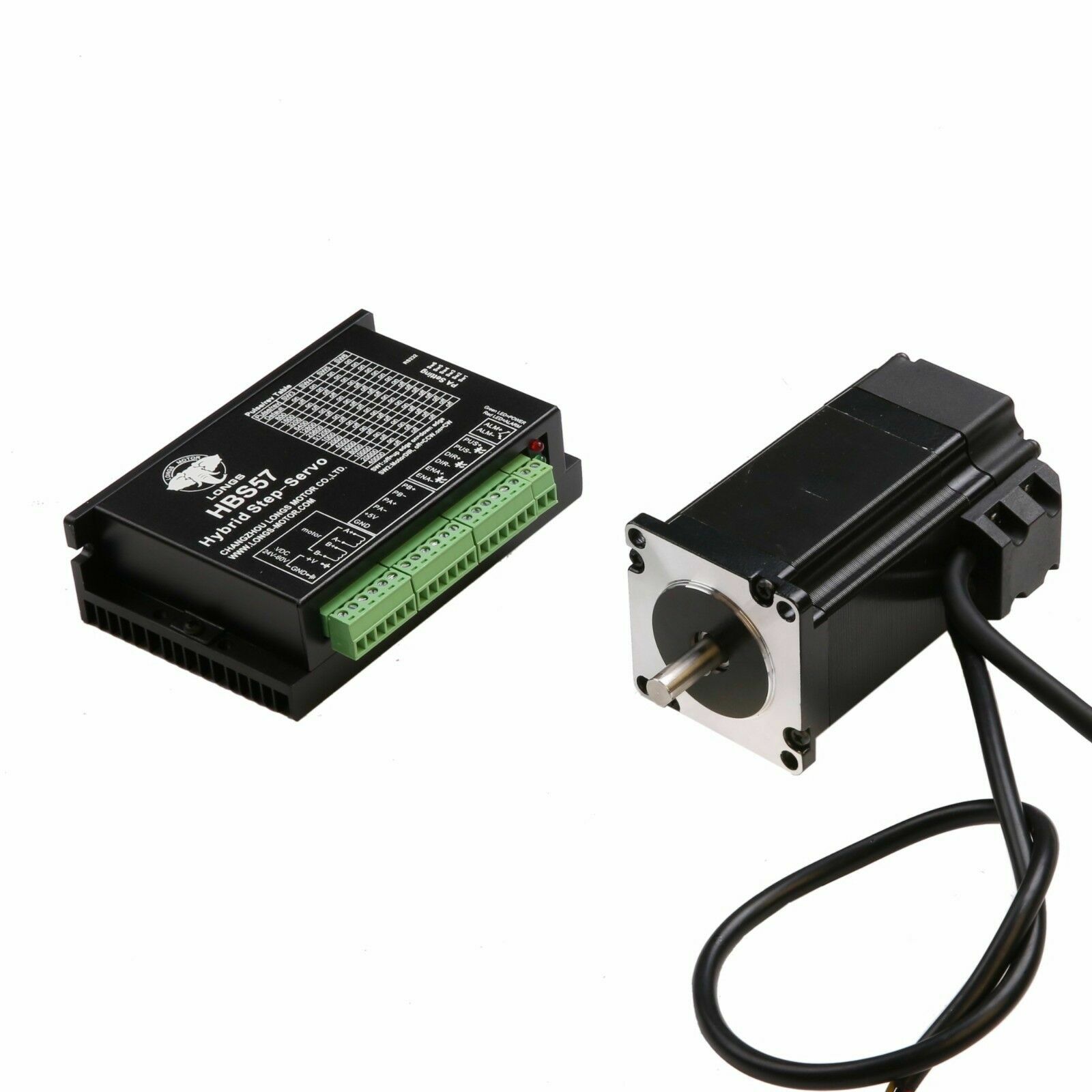

This item includes:

1PC NEMA23Closed-Loop Stepper motor 2.2N.M Shaft Diameter 8mm 23SSM8440-EC1000

1PC NEMA 23 Closed-LoopStepper motor Drive HBS57

Description

1、NEMA23Closed-Loop Stepper motor23SSM8440-EC1000

2.NEMA 23 Closed-Loop Stepper motor driver HBS57

Description
1.HBS series provides the requirements for high performance and reliability, when the servo is the only alternative to the selected application while it is still cost-effective.

2.The system includes a two-phase stepper motor all-digital, high-performance drive, which is used to close the real-time position, velocity and current loop servo system as internal encoder combined. It combines servo and stepper motor technology, and both offer unique capabilities and enhancements, but at a fraction of the cost of a servo system.

3.Its quick response and great features make it ideal for hunting does not apply, such as bonding and visual systems, including a short distance fast motion is required, hunting will be a problem. It is an ideal application by belt or other mechanism has a low rigidity and you do not want it to vibrate when parking.

Applications

The HBS series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. Its great feature of fast response and no hunting make it ideal for applications such as bonding and vision systems in which rapid motions with a short distance are required and hunting would be a problem. And it is ideal for applications where the equipment uses a belt-drive mechanism or otherwise has low rigidity and you don't want it to vibrate when stopping.

Typical applications

CNC machine ,cutting machine ,engraving machine

3、Wiring Diagram:
