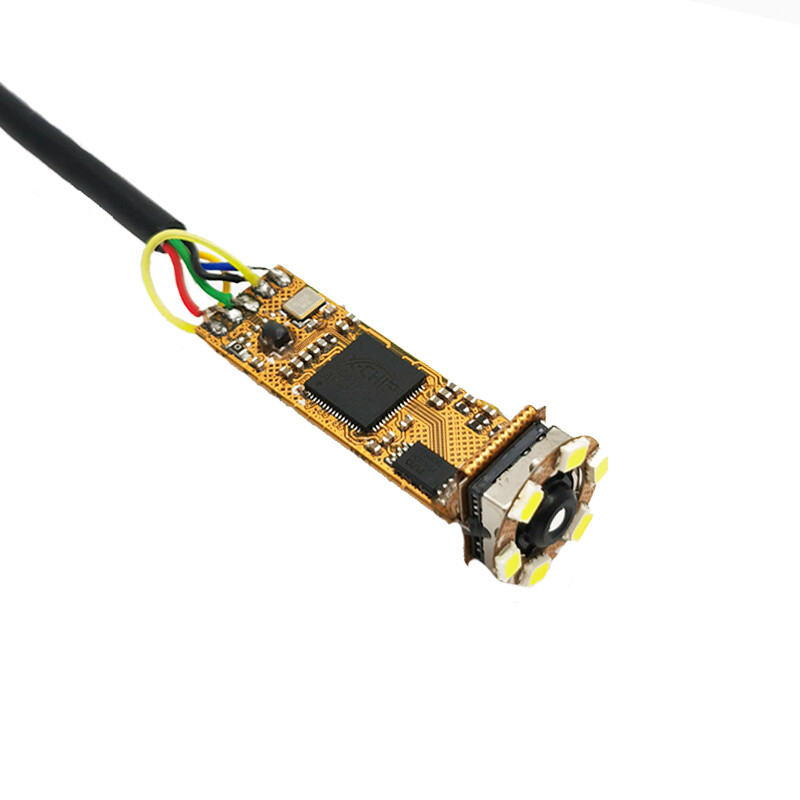

Product Parameters:·Module Size:35.6mm*13mm(Diameter:13mm) ·Pixel Size: 1.12*1.12μm·Image Sensor:1/2.8-inch CMOS Sensor·Lens:EFL: 3.95mm, F/No: 1.8, 6P+IR 650nm·LED Quantity:6PCS·Max. Resolutions: 4264H*3468V·Frame Rate: 30fps·Output Format: MJPEG,YUY2·Field of View: 78.4°·Focus Mode: Autofocus/ Fixed Focus·Output & Power Supply:High Speed USB2.0·Interface:Welding Wire·Shutter Mode: Electronic Rolling Plug and Play for Windows, Android, Linux, Mac OS, etc.·Cable Length: 1.8 Meter·Controllable Parameters:Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure·Supported OS:UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.Resolutionsand Frame Rates:FormatResolutionsFrame Definitions:

Pin No.

Signal Names

Descriptions

1

VCC

DC 5V

2

DM

USB2.0 Data-

3

DP

USB2.0 Data+

4

GND

Ground

5

KEY

Snapshot

6

LED

LED 5V

Working Conditions:

WorkingVoltage

DC5V

WorkingCurrent

270mA

Working Temperature

-20°C ~ 60°C

Storage Temperature

-20°C~ 85°C

Humidity

80 ~85%

Package Include:1x USB Camera Module
