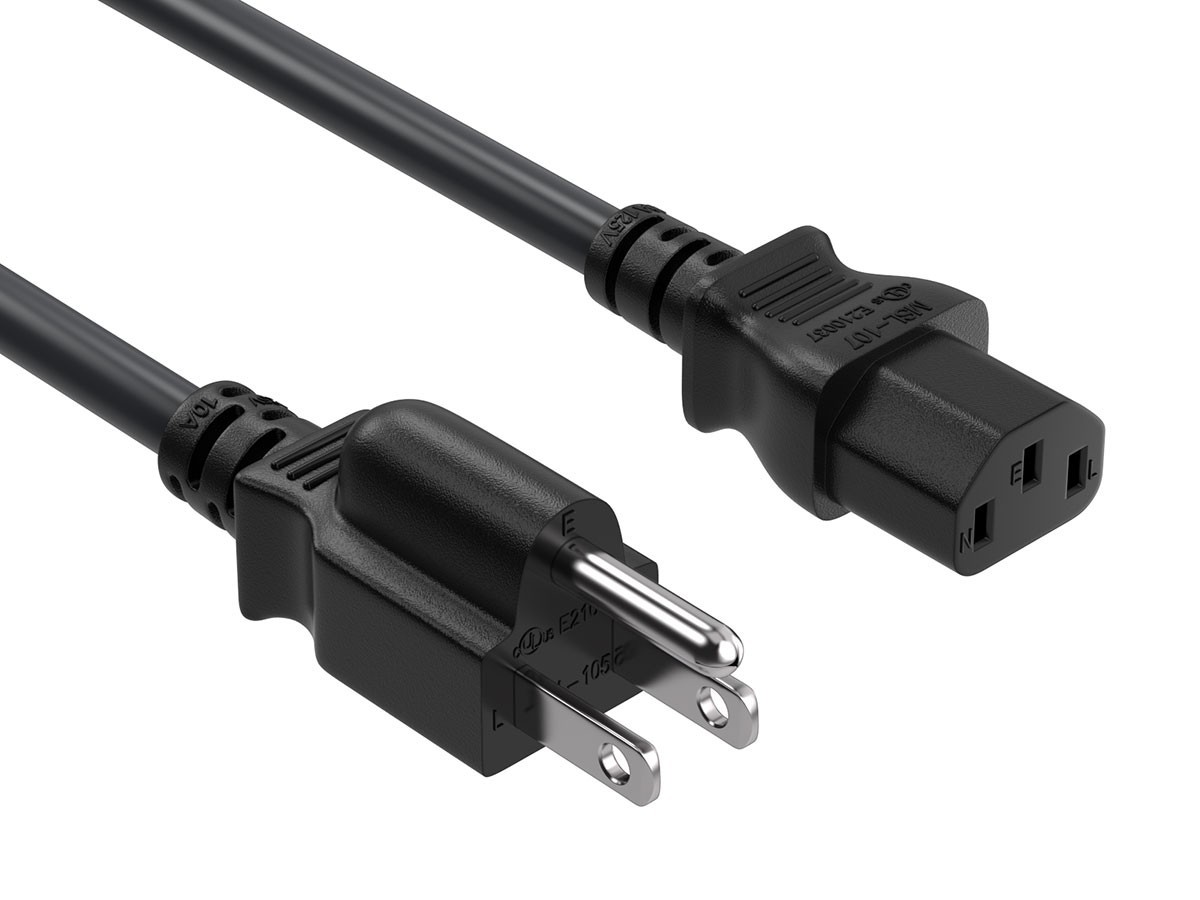

12ft NEMA 5-15P to C13 Computer Power Cord, 18 AWG SVT, 10A/125V, UL cUL Listed, Black
The CableLeader PW101-12XX is a standard NEMA 5-15P to IEC 60320 C13 computer power cord that connects desktops, monitors, servers, printers, and other IEC-inlet equipment to a standard 120V US wall outlet. One end carries a NEMA 5-15P three-prong plug; the opposite end terminates in a C13 connector that mates with the C14 inlet found on the rear of most computer and AV hardware. Between the two runs 18 AWG SVT flexible cord wired line-to-line, neutral-to-neutral, and ground-to-ground for a direct one-to-one passthrough across the entire power delivery path.
The NEMA 5-15P plug is the standard North American three-prong connector that seats into any grounded 120V wall receptacle. Its two flat blades carry line and neutral while the round pin maintains protective earth, satisfying the dedicated grounding path that data and AV equipment require. Rated 15A at 125V at the receptacle level, the plug pairs with the 18 AWG conductor's 10A working limit to match the C13 end. The molded plug body resists bending fatigue at the strain-relief neck through repeated insertion.
The IEC 60320 C13 is the female coupler that seats onto the C14 inlet integrated into computer power supplies, monitors, servers, and managed switches. Rated 10A and 70°C, the C13 is the most widely deployed equipment coupler in IT hardware, which is why this cord is commonly listed as a computer, PC, or monitor power cord. The keyed, polarized housing seats only one way, preserving correct line, neutral, and ground orientation through to the equipment.
Safety approvals cover both the cordage and the molded ends. The assembly is UL Listed and cUL recognized for the United States and Canada, and the SVT conductor carries a VW-1 flame rating at 300V. RoHS 3 compliance keeps the assembly free of restricted levels of lead, mercury, cadmium, hexavalent chromium, and regulated phthalates. A continuous ground path runs from the NEMA earth pin through the green conductor to the C13 ground terminal, preserving protective earth for all downstream equipment.
Construction favors durability over cost. The 18 AWG SVT jacket at 6.3 mm outer diameter stays flexible for tight routing behind desks, inside AV credenzas, and within server cabinets, while the molded overmolds lock the crimps and jacket into a single strain-relief body. The 10A/125V rating yields a 1,250-watt ceiling that suits the great majority of single-device loads — a desktop and monitor, a workgroup printer, a small server, or a network switch. The cord also serves as a direct replacement for lost or damaged OEM power cords on the same equipment.
Compatibility & Ordering Information — PW101-12XX is compatible with any device that uses a standard IEC 60320 C14 inlet, including desktop PCs and power supplies from Dell, HP, Lenovo, and ASUS, LCD/LED monitors from Dell, HP, Samsung, LG, Acer, and ASUS, plus servers, managed switches, and laser printers across major brands. The NEMA 5-15P plug draws from any standard 120V wall outlet or NEMA 5-15R receptacle on a power strip or UPS output. The cord is available in multiple lengths to fit desktop, under-desk, and in-rack runs; select the length that matches the distance from outlet to equipment. Custom lengths, bulk packaging, and OEM kitting are available on request — contact CableLeader for quotations, imprinted labels, or kitting programs.
Product Comparison: NEMA 5-15P to C13 vs NEMA 5-15P to C15
Both cords share the same NEMA 5-15P wall plug, so buyers often mix up the C13 and C15 device ends. They look nearly identical, but the connector at the equipment end determines compatibility. The table below summarizes the decision:
Attribute NEMA 5-15P to C13 (this product) NEMA 5-15P to C15 Wall-End Connector NEMA 5-15P 3-prong plug (120V) NEMA 5-15P 3-prong plug (120V) Device-End Connector IEC 60320 C13 (standard equipment coupler) IEC 60320 C15 (high-temperature coupler) Connector Temp Rating 70°C 120°C Keying / Notch Standard housing, no ridge Notch (keyway ridge) opposite the ground pin Mating Inlet Fits C14 inlets only Fits both C14 and high-temp C16 inlets Typical Equipment Desktops, monitors, servers, switches, printers High-temperature gear: heated appliances, equipment in hot cabinets, devices with a C16 inlet Current / Voltage 10A / 125V 10A / 125V Conductor 18 AWG SVT, 3-conductor, VW-1 18 AWG high-temperature jacket, 3-conductor
Choose NEMA 5-15P to C13 for standard computers, monitors, servers, switches, and printers — any device with a C14 inlet.
Choose NEMA 5-15P to C15 only when the equipment has a C16 high-temperature inlet that a C13 connector will not seat into.
FAQ
Q1. What is the difference between a C13 and a C15 power cord?
A C13 connector is rated 70°C for standard computer and AV equipment, while a C15 connector is rated 120°C for high-temperature equipment and has a notch (keyway ridge) opposite the ground that a C13 lacks. A C15 connector plugs into both C14 and high-temperature C16 inlets, but a C13 fits only C14 inlets. Use C13 for desktops, monitors, servers, and printers; choose C15 only when the device has a C16 high-temperature inlet.
Q2. Is this cord compatible with my desktop, monitor, or server?
Yes, as long as the device has a standard IEC 60320 C14 inlet. The C13 end mates with the C14 inlet built into most desktop PCs, power supplies, LCD/LED monitors, servers, managed switches, and laser printers, and the NEMA 5-15P plug fits any standard 120V US outlet. Check the rear of your equipment for the three-pin C14 inlet to confirm the match.
Q3. What gauge and rating do I need for a computer or monitor?
18 AWG at 10A/125V is the standard rating for desktops, monitors, printers, and most single-device loads, supporting up to 1,250 watts. Step up to a 14 AWG cord only for higher-draw equipment or long runs where voltage drop matters. For a typical PC-and-monitor setup or a workgroup printer, 18 AWG SVT is the correct choice.
Q4. How do I connect this power cord?
Plug the NEMA 5-15P three-prong end into a standard 120V wall outlet or power strip, then push the C13 connector onto the C14 inlet on the back of your device until it seats fully. Both connectors are keyed and polarized, so each end fits only one way, and no tools are required for installation.
Q5. Which length should I choose?
Match the length to the distance from the outlet to your equipment. Short lengths suit in-rack drops and devices close to an outlet or PDU, minimizing clutter and preserving airflow. Mid lengths handle desktop and under-desk runs; longer lengths reach wall outlets across a room. Leave a small service loop so equipment can be relocated without unplugging.
