12-Disk 3.5-inch hard drive cage, supports SATA SAS SSD.
The hard disk cage comes from the server chassis.
We use advanced large-scale laser cutting machine to cut down the hard disk position and fan position.
As we all know, server chassis are of high quality workmanship, and we cut out the useful parts for easy expansion of the hard disk.
24 drive, hard disk cage
12Gb SFF-8643 rate
backplane
12Gb bandwidth backplane SFF-8643 interface
One line can support 24 disks
Other mouth support, tandem, another cage
About 44 * 30 * 17.6CM
power supply Power supply from port D is required. Remarks
Large laser equipment, manual cutting, belongs to high temperature cutting, and it is inevitable that there will be burrs and cutting marks.
There needs to be some DIY acceptance.Perfectionists don't shoot.
Built-in 4 8cm cooling fans, the deceleration line is added by default for delivery, and the speed is controlled.
Reduce noise, save power and save energy. Fan speed temperature control, sudden rotation and sudden stop, is normal, non-fault.
One line data cable is connected to the card, and one D port cable is powered, and it can be used.

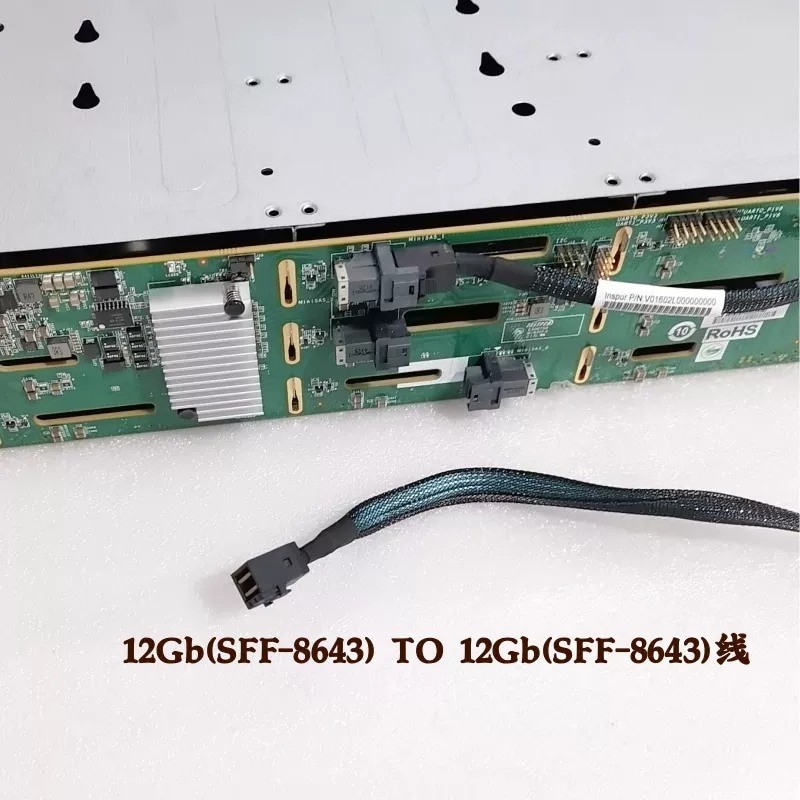

By default, an 8643 line will be sent for delivery, which is used to connect the 12Gb 8643 array card.
If you need to connect a 6Gb card, place an order and contact customer service, with 12Gb to 6Gb cable.
Support for in-line, backplane integration with 3 SFF-8643 interfaces 12Gb bandwidth
6Gb hard disk cage
backplane
6Gb bandwidth backplane SFF-8087 interface
One line can support 12 discs
Other mouth support, tandem, another cage
size
43*17*8.5CM
power supply 4 D ports for power supply, connect 2 D ports, and that's it. Remarks
Shipping will send an 8087 line by default.
Support series, backplane integration 2 SFF-8087 interfaces 6Gb bandwidth
If you need array cards, hard disks, cables, etc., you can contact customer service.
12Gb hard disk cage
backplane
12Gb bandwidth backplane SFF-8643 interface
One line can support 12 discs
Other mouth support, tandem, another cage
size
43*17*8CM
Remarks
By default, a D port supply wire will be sent for delivery. As shown in the picture above, you can connect 2 D ports.
Support for in-line, backplane integration with 3 SFF-8643 interfaces12Gb bandwidth
Our store is new, more than 3,000 12Gb cages are sold at a discount~ cost-effective!
If you need array cards, hard disks, cables, etc., you can contact customer service.
