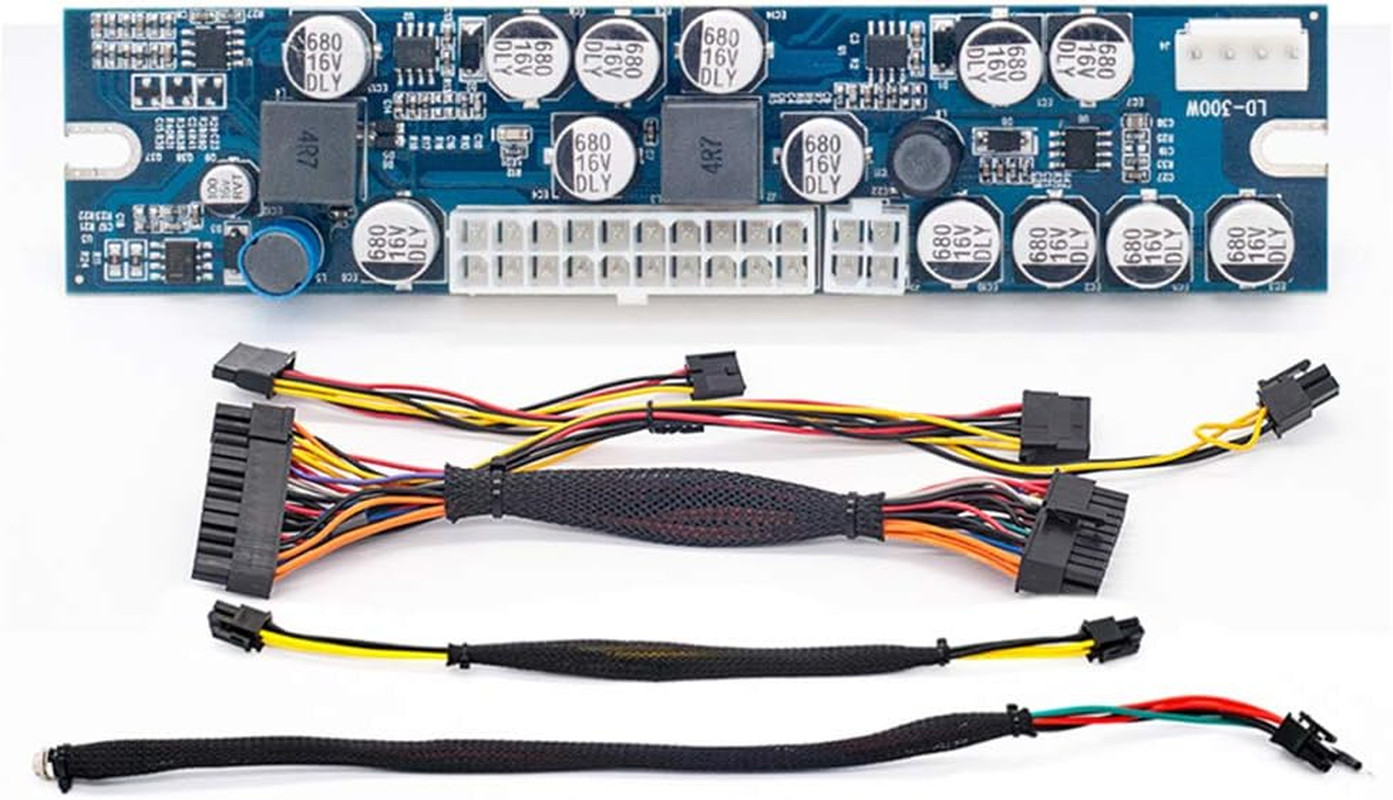

1106 DC to DC ATX PSU 12V 300W Pico ATX Switch PSU 24Pin MINI ITX PC Power Supply for ComputerProduct Details

• Input voltage range: 11.2 to 12.6V DC, DC input connector: 2.5mm inner diameters, 5.5mm outer diameter
• output shutdown when output current reaches the peak point
• Short-circuit protection: output shut down when short-circuit
• Defensive function (for +3.3V, +12V, +5.00V and +5.00V SB power output）

Product description

Description:

Before you buy this board, please make sure your input Voltage INPUT VOLTAGE RANGE: 11.4VDC—12.6VDC

Rating Power: 300W

The 20+4pin cable and the dc cable are included.

INPUT REQUIRED:

INPUT VOLTAGE RANGE: 11.4VDC—12.8VDC

INCOMING CURRENT RANGE : 20.0A Max - 11.4VDC

INPUT SURGING CURRENT: 25.0Vmax - 12VDC

WORK EFFICIENCY: ≥85%

Environment description:

Working temperature/humidity： 15 degree to 35 degree / 45%-75%

Reposition temperature//humidity： -40 degree to +70 degree/ 10%-90%

Atmospheric pressure： 86Kpa—106Kp

Other parameters:

Working frequency: Icbuilt-in oscillator ( 250-350 )

kHz@Vcc=12V

Item model number LR1106-250W12VDC Package Dimensions 6.5 x 3.4 x 1.7 inches Is Discontinued By Manufacturer No Number of Connectors 2 Compatible Devices Personal Computer Connector Type ATX Item Weight 0.18 Kilograms Cooling Method Air Output Wattage 300 Watts Form Factor ATX Wattage 250 watts Maximum Input Voltage 12.6 Volts (DC)

3.4 inches x 6.5 inches x 1.7 inches. Weight: 0.18 kg
