The Xtreme Dual V Wheel Kit is part of the heavy duty Xtreme line of parts, designed with strength in mind.Many of these wheels could be added to a gantry to allow an even distribution of the load across them.SpecificationSKU: VW04-RS-KA / VW04-RS-KB / VW04-ZZ-KA / VW04-ZZ-KBProduct name: Xtreme Dual V Wheel KitMaterial: Polycarbonate (also called PC)Bearings: 625-2RS or 625ZZID of Bearing: 5x16x5mmRockwell Hardness: M80Compression Strength: 63MPAColor: ClearSize: 24.39 OD x 15.95 ± 0.05 ID x 10.23 thickness (units:mm)Each Wheel Kit Includes1x Xtreme Dual V Wheel2x 625-2RS Bearings or 625ZZ Bearings2x Precision Shims 5mm1x Nylon Lock Nut M51x Low profile screw M5x25mm1x 6mm Aluminum Spacer or 6mm Eccentric SpacerXtreme Dual V Wheel Kit -UnassembledThe Xtreme Dual V Wheel Kit is part of the heavy duty Xtreme line of parts, designed with strength in mind.Many of these wheels could be added to a gantry to allow an even distribution of the load across them.These wheels are individually milled for consistent high precision and tolerance.
These Xtreme Dual V Wheels are made from very hard polycarbonate (clear) material.Due to its strong nature, it will resist compression and wear. In turn, it also leads to better over all precision and strength for your builds.
Specification
-SKU: VW04-RS-KA / VW04-RS-KB / VW04-ZZ-KA / VW04-ZZ-KB
-Product Name: Xtreme Dual V Wheel Kit
-Material: Polycarbonate (also called PC)
-Bearings: 625-2RS or 625ZZ
-ID of Bearing: 5x16x5mm
-Rockwell Hardness: M80
-Compression Strength: 63MPA
-Color: Clear
-Size: 24.39 OD x 15.95 ± 0.05 ID x 10.23 thickness (units:mm)

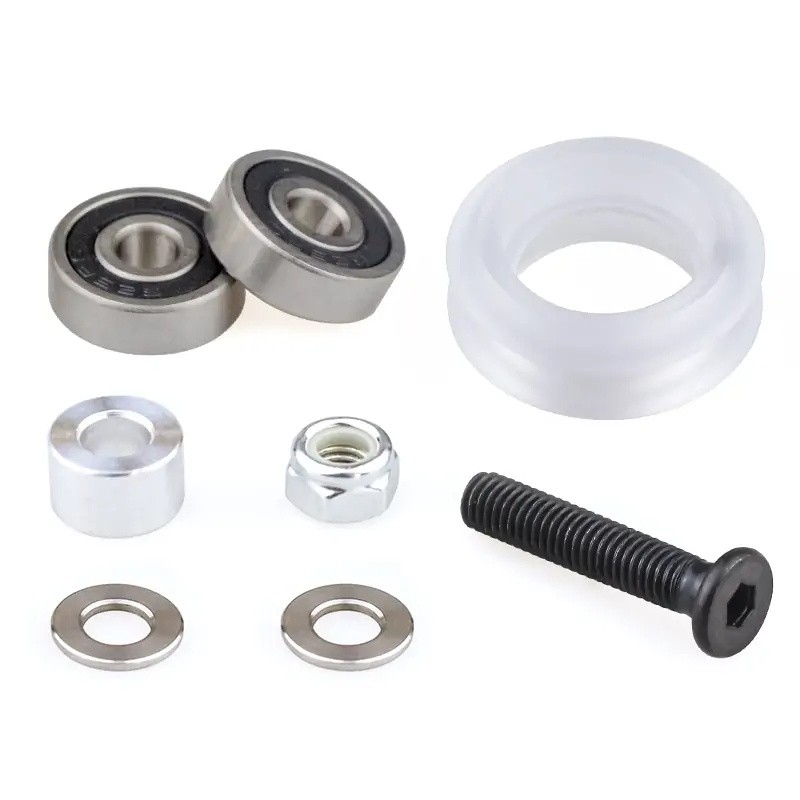

Each Wheel Kit Includes:
1x Xtreme Dual V Wheel
2x 625-2RS Bearings or 625ZZ Bearings
2x Precision Shims 5mm
1x Nylon Lock Nut M5
1x Low profile screw M5x25mm
1x 6mm Aluminum Spacer or 6mm Eccentric Spacer
Tips:
The standard kit include 6mm aluminum spacer or 6mm eccentric spacer.If you need change 6.35mm (1/4″) aluminum spacer or 6.35mm (1/4″) eccentric spacer,Please give us a note when placing your order.
This Xtreme Solid V Wheel kit is unassembled.
Product Application:
