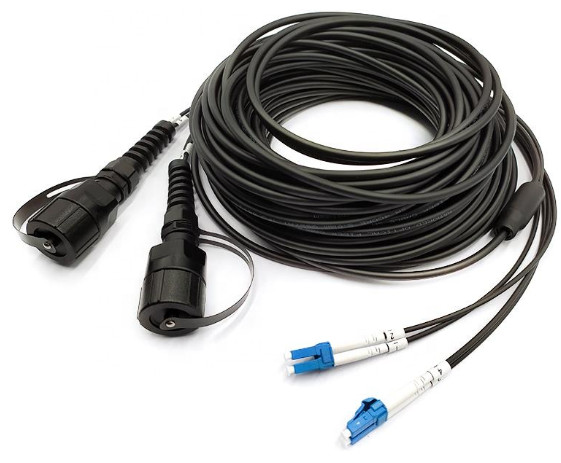

Fiber Optic Patch Cable 4 Fibers
Armored tactical cable features strong tensile strength, strong pressure resistance and good flexibility characteristics. Besides, it is bending resistant, oil resistant, wear resistant and flame retardant. Therefore, armored tactical cable is ideal for both indoor and outdoor applications, such as rapid wiring/repeated retrieval in military field or connecting the networks of two buildings through the use of an underground conduit or direct buried.Product SpecificationConnector TypeLCPolish TypeUPC to UPCFiber ModeOS2 9/125μmWavelength1310/1550nmFiber Count2 FibersFiber GradeG.657.A1Min. Dynamic Bend Radius20D (mm)Min. Static Bend Radius10D (mm)Insertion Loss (dB)LC/SC/ST/FC≤0.3, MTP®≤0.35, ODC/YZC≤1.0, IP67 LC/SC≤0.5, IP67 MTP®≤0.35Return Loss (dB)UPC≥50, APC≥60Attenuation at 1310nm0.36 dB/kmAttenuation at 1300nm1.0 dB/kmCrushResistance (N/100mm)1000 (Long Term)/3000 (Short Term)ImpactResistance200 ImpactsFlex Resistance2000 CyclesTensile Load (N)200 (Long Term)/600 (Short Term)Breakout Diameter3.0mm (1~4 Fibers)
2.5mm (6~24 Fibers)Trunk Diameter3.0mm-7.0mmCable JacketTPU (Thermoplastic Polyurethane)Jacket ColorBlackOperating Temperature-40~85°CStorage Temperature-40~85°C
