Highest Quality Pre Shrunk Fiber fusion splice protection sleeve

We offer the competitive prices on for HighQuality Fiber splice protector+ Free Shipping with Tracking number.

Five Years Warranty, Buy with confidence!

Don't choose low cost, generic, lowquality, not quality fiber fusion splice protectorsleeves,Choose optimal, choose us.

Product specifications

1. Whole length: 60mm/45mm optional
2. Outer diameter after recovery: OD2.5 mm +/- 0,1mm (2.4mm optional)
3. Hole diameter before recovery: OD1,3mm
4. Stainless steel needles diameter: OD 1.2mm (1.0mm optional)
5. Minimum installation(shrinking) temperature: 110°C
6. Max installation time: 60 seconds
7. Standard color: Clear
8. Low Temperature property: No crackle at -55°C lasting 4 hours
9. RoHS compliant
10. Packing: 100 pcs per bag (Others for special order)

Features

1. Clear sleeve make it easy to detect splice before shrinkage
2. Airproof structure keeping the splice point's good resistance of humidity and temperature
3. Strength member is made from "Full hard" stainless steel of 304 grade and is ground at the edges before polishing to make it completely burr free to avoid rupturing during shrinking. 304 grade gives better corrosion resistance, even in coastal environment. Resistant to heat shocks, no cracking dripping or flowing
4. Easily use and avoid any damages to the optical fiber during installation
5. Single holed(preshrunk)ends eliminates improper fiber threading
6. Smooth,deburred stainless steel reinforcing member ends decrease the risk of fiber damage during installation
7. Extended liner length prevents contact between the fiber and ther backbone

Construction:

Our fiber optic fusion splice protector sleeves are manufactured pre-shrunk in a heat-bonded assembly that consists of three components:

1. An outer of heat-shrinkable tubing
2. A reinforcing strength member
3. An inner tube of hot-meltable adhesive

The hot-melt adhesive inner tube bonds to both the fiber and the heat shrinkable outer tube to encapsulate the fusion splice joint and provides vibration damping and an environmental seal, protecting the fiber from damage and contaminants.

The outer high quality irradiation cross-linked polyolefin heat shrinkable tubing provides an instant shrink-force and drives the adhesive liner into all areas of the splice and excludes all the air.

Product specification

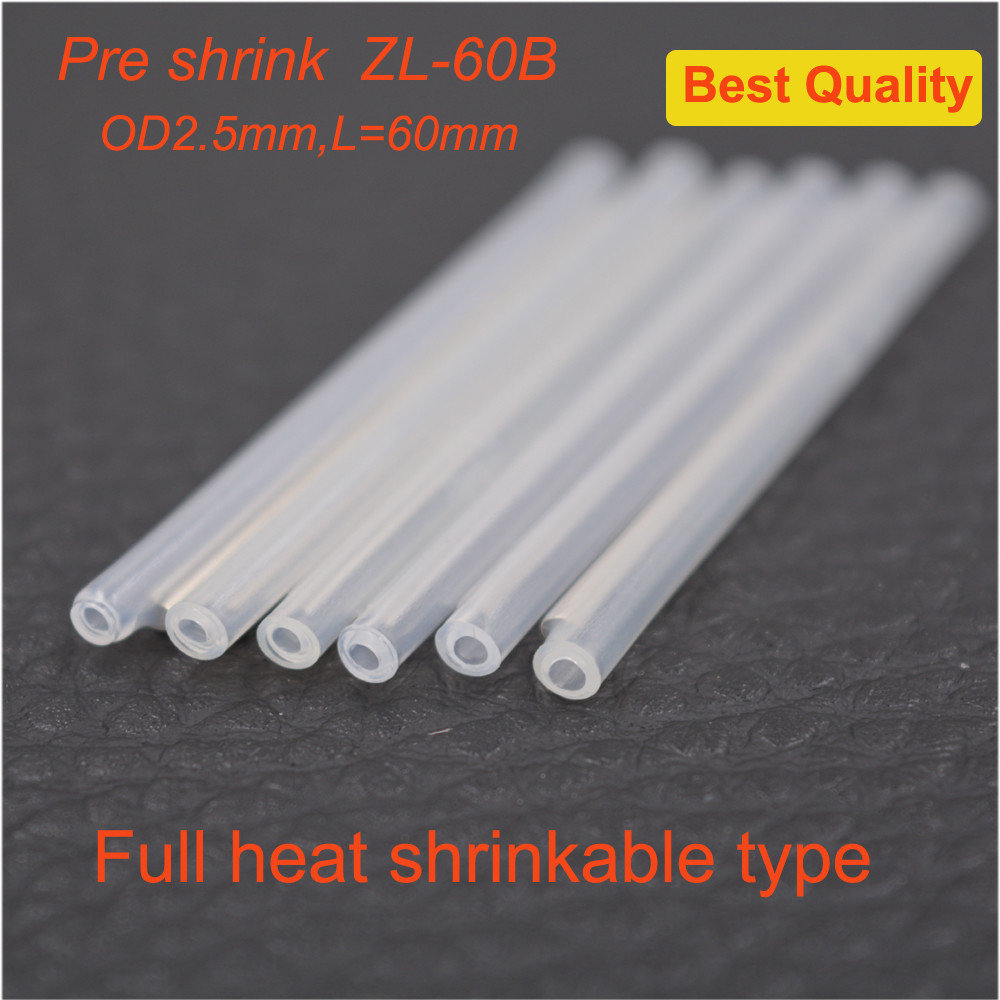

ZL-60B:

1.Outer diameter after recovery: ø2.5 mm +/- 0,1mm

2.Hole diameter before recovery: ø1,3 mm

3.Pin diameter: ø 1.2 mm

4.Whole length: 61mm

ZL-45B:

1.Outer diameter after recovery: ø2.5 mm +/- 0,1mm

2.Hole diameter before recovery: ø1,3 mm

3.Pin diameter: ø 1.2 mm

4.Whole length: 45mm

ZL-60C:

1.Outer diameter after recovery: ø2.4 mm +/- 0,1mm

2.Hole diameter before recovery: ø1,4 mm

3.Pin diameter: ø 1.0 mm

4.Whole length: 60mm

ZL-45C:

1.Outer diameter after recovery: ø2.4 mm +/- 0,1mm

2.Hole diameter before recovery: ø1,4 mm

3.Pin diameter: ø 1.0 mm

4.Whole length: 45mm

Packing Contents

• 1000pcs x Full heat shrinkprotective sleeve (4 sizes optional)
