V06 Version is without DDM Function
XPON=XPON 1.25G/2.5G ,It can use for Epon and Gpon at the same time
Connector:SC/APC / SC/UPC OptionalAlternatives to Optical modem devices:
With our modules, any switch and soft router can be turned intothe Optical modemyou want, whether it is GPON or EPON. Theoptical port of the soft router is plugged with our module,and the Optical modem configured by the operator can becompletely removed.
Please note:This product needs to be plugged into a soft routerand cannot be directly connected to the network card.
Description
V06 Version is without DDM function
XPON=XPON 1.25G/2.5G ,It can use for Epon and Gpon at the same time
Connector:SC/APC

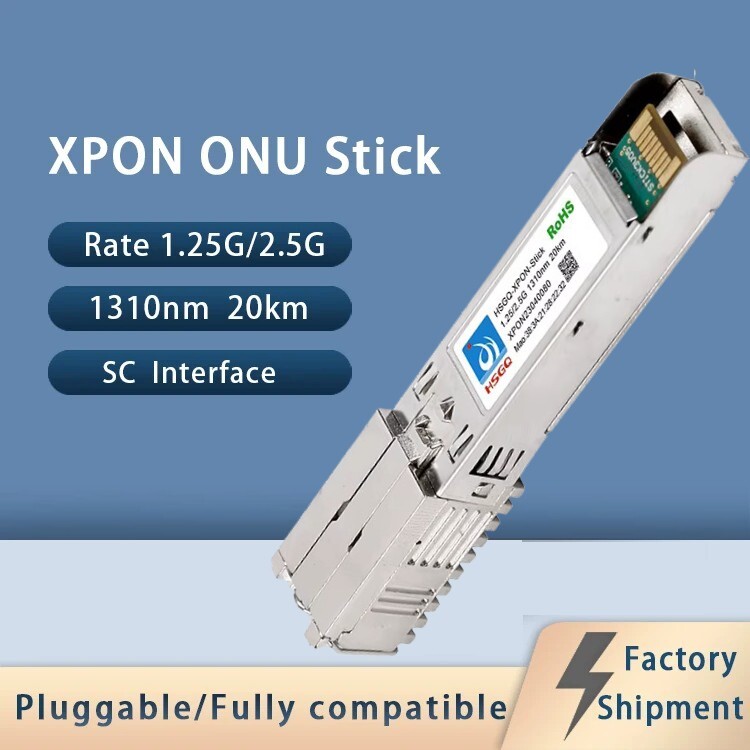

Product Overview HSGQ-XPON-STICK is a miniature XPON SFP ONU device that can be plugged into the SFP optical port of a switch or routing device to provide XPON network access to the device. In principle, the HSGQ-XPON-STICK is an optical module, but it has a built-in CPU, flash memory, and a system, so it can be used as an optical cat.
Advantage
Small Form-Factor Pluggable (SFP)
Easy to install
Low power consumption Technical Parameter
Item
HSGQ-XPON-STICK
Interface
1*PON
PON
Physical Interface: PON Port
type: SC/UPC ( if you need SC/APC ,Please leave message )
Size
8.2mm x 6.8mm x 75mm
weight
＜19g
Environment
Operating temperature:-40°C~85°C （I Temp）
Operating temperature:0°C~70°C （C Temp）
Storage humidity:5%~95% (non-condensing)
Power Supply
3.3V
Power Consumption
＜2.5W
PON Function
GPON/EPON adaptive
Mode
SFU
Optionally support some functions of HGU(DCHP/PPPoE/NAT)
Configure MAC address
Support
Configure SN
Support
Configure Vendor ID
Support
Configure PVID
Support
DDMI
Support
Management
Http/telent/SSH/TR069
SFP MSA Standard
Support
VLAN
VLAN transport transmission
VLAN swtich function
Application The product is an MSA-compliant SFP that incorporates not just the optics for an ONU, but all of theelectronics need as well.
1GE ONT software version is SFU default,You dont need to do any configuration via ont web.Support port mode of VLAN configuration and u could configure port vlan of ont via olt.After reset ont,there is no wan conne
