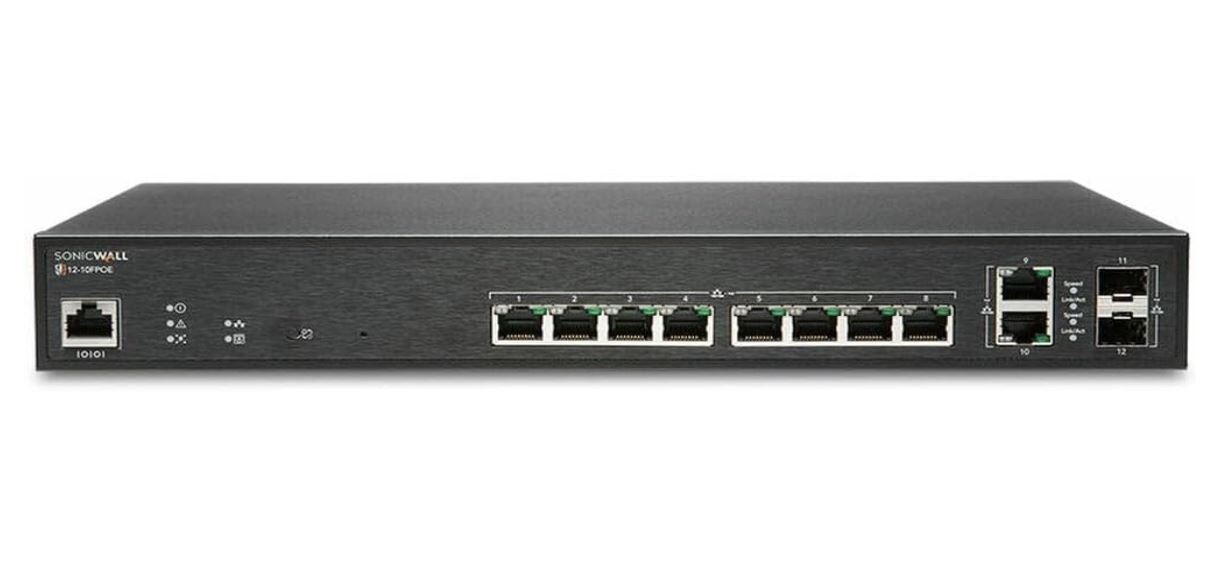

Main SpecificationsProduct DescriptionSonicWall Switch SWS12-10FPOE - switch - 12 ports - managedDevice TypeSwitch - 12 ports - managedSubtypeGigabit EthernetPorts10 x 10/100/1000 (PoE+) + 2 x Gigabit SFPPower Over Ethernet (PoE)PoE+PoE Budget130 WPerformanceSwitching capacity: 24 GbpsCapacityVirtual interfaces (VLANs): 4096MAC Address Table Size8K entriesRouting ProtocolStatic IP routingRemote Management ProtocolSNMP 1, SNMP 3, SNMP 2c, HTTPS, SSH, CLIFeaturesFlow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, RADIUS support, Jumbo Frames support, STP Root Guard, DHCP relay, LACP, DHCP client, 512KB packet buffer, Storm Control, Back Pressure Support, LLDP-MED, STP BPDU Guard, EEE, VLAN Tagging, daisy-chaining support, LAG, DSCP based QoS, zero-touch configurationCompliant StandardsIEEE 802.1p, IEEE 802.3af, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3atPowerAC 120/230 V (50/60 Hz)Dimensions (WxDxH)13 in x 9.1 in x 1.7 inWeight5.51 lbsGeneralDevice TypeSwitch - 12 ports - managedEnclosure TypeDesktopSubtypeGigabit EthernetPorts10 x 10/100/1000 (PoE+) + 2 x Gigabit SFPPower Over Ethernet (PoE)PoE+PoE Budget130 WPerformanceSwitching capacity: 24 GbpsCapacityVirtual interfaces (VLANs): 4096MAC Address Table Size8K entriesRouting ProtocolStatic IP routingRemote Management ProtocolSNMP 1, SNMP 3, SNMP 2c, HTTPS, SSH, CLIAuthentication MethodRADIUSFeaturesFlow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, RADIUS support, Jumbo Frames support, STP Root Guard, DHCP relay, LACP, DHCP client, 512KB packet buffer, Storm Control, Back Pressure Support, LLDP-MED, STP BPDU Guard, EEE, VLAN Tagging, daisy-chaining support, LAG, DSCP based QoS, zero-touch configurationCompliant StandardsIEEE 802.1p, IEEE 802.3af, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3atRAM256 MBFlash Memory32 MBStatus IndicatorsPower, PoE, faultExpansion / ConnectivityInterfaces10 x 1000Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP ¦ 1 x console RJ-45MiscellaneousMTBF180,837 hoursCompliant StandardsFCC Class A certified, UL, TUV GS, C-Tick, BSMI, cUL, CB, RoHS, KCC, WEEE, ANATEL, REACH, ICES Class A, LVD, EMC Class A, VCCI Class A, MSIPPowerPower DeviceInternal power supplyPower Provided180 WattVoltage RequiredAC 120/230 V (50/60 Hz)Power Consumption Operational152.8 WattEnvironmental ParametersMin Operating Temperature32 °FMax Operating Temperature104 °FHumidity Range Operating10 - 95%Min Storage Temperature-40 °FMax Storage Temperature158 °FDimensions & WeightWidth13 inDepth9.1 inHeight1.7 inWeight5.51 lbs
