Integrated Board Super X11SSV-M4F
Key Features
• Virtual Hosted Desktop (VHD)
• Digital Recording System
• Media/Content Streaming Server
• Fast Transcoding for Web Streaming
• Support Intel Quick Sync Video
• Intel Iris Pro Graphics P580
• Up to 18 AVC streams or 8 HEVC
streams at 1080p 30FPS
1. Single socket FCBGA 1440 supports
Intel® Xeon® processor E3-1585 v5,
4-Core, 8 Threads, 65W 2. Intel® C236 chipset 3. 2x 3.5" or 4x 2.5" HDD 4. Up to 32GB Unbuffered ECC SO-DIMM
DDR4 2133MHz; 2 DIMM slots 5. 1 PCI-E 3.0 x16, 1 Mini-PCIe with
mSATA, 1 M.2 (M Key, 2242/2280) 6. 4 GbE w/ Intel i219LM, I210AT, I350AM2;
shared IPMI 2.0 LAN (Intel I210AT) 7. 1 VGA, 1 COM, 4 USB 3.0 (rear) 8. 200W Low noise AC-DC Power Supply
with PFC


Drivers & Utilities BIOS IPMI Tested Memory
Tested M.2 List Manuals OS Certification Matrix Drive Options

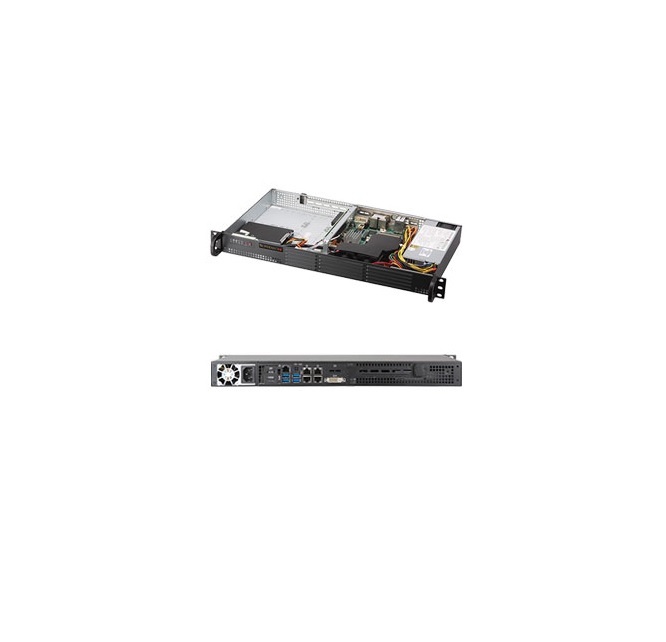

Product SKUs SYS-5019S-TN4

• SuperServer 5019S-TN4 (Black)

Motherboard
Super X11SSV-M4F Processor/Cache CPU

• Single Socket FCBGA 1440 supports:
• Intel® Xeon® processor E3-1585 v5, 4-Core, 8 Threads, 65W

System Memory Memory Capacity

• 2x DDR4 SO-DIMM slots
• Up to 32GB Unbuffered ECC SO-DIMM, DDR4-2133MHz, in 2 DIMM slots

Memory Type

• 2133/1866/1600MHz ECC DDR4 SODIMMs

DIMM Sizes

• 16GB, 8GB, 4GB

Memory Voltage

• 1.2 V

On-Board Devices Chipset

• Intel® C236 chipset

SATA

• SATA3 (6Gbps) via C236 controller
• RAID 0, 1, 5, 10 support

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network Controllers

• Single GbE LAN with Intel® I219LM controller
• Single GbE LAN with Intel® I210-AT; IPMI shared LAN with I210-AT
• Dual GbE LAN with Intel® I350-AM2
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Video

• ASPEED AST2400 BMC

Input / Output SATA

• 4 SATA3 (6Gbps) ports

LAN

• 4 RJ45 Gigabit Ethernet LAN ports
• 1 RJ45 Shared IPMI LAN port

USB

• 4 USB 3.0 ports (rear)

Video

• 1 VGA port (DVI-A)

Serial Port / Header

• 1 COM port in RJ45 socket

TPM

• 1 TPM Header

PC Health Monitoring Voltage

• Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.

FAN

• Total of 3 fan headers supporting up to 3 fans
• 3 fans with tachometer status monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support
• I2C temperature sensing logic
• Thermal Monitor 2 (TM2) support
• PECI

LED

• CPU / System Overheat LED
• Suspend static indicator LED
• UID/Remote UID

Other Features

• Chassis intrusion detection
• Chassis intrusion header
• Chipkill support
• RoHS, Halogen Free

Chassis Form Factor

• 1U Rackmount

Model

• CSE-504-203B

Dimensions and Weight Height

• 1.7" (43mm)

Width

• 17.2" (432mm)

Depth

• 9.8" (249mm)

Package

• 8.5" (H) x 24" (W) x 29.5" (D)

Weight

• Net Weight: 8 lbs (3.62 kg)
• Gross Weight: 12 lbs (5.44 kg)

Available Colors

• Black

Front Panel Buttons

• Power On/Off button
• System Reset button

LEDs

• Power LED
• Hard drive activity LED
• 4 Network activity LEDs
• System Overheat LED

Expansion Slots PCI-Express

• 1 PCI-E 3.0 x16 slot
• 1 Mini PCI-E with mSATA support
• M.2 Interface: PCIe 3.0 x4 and SATA
  M.2 Form Factor: 2242, 2280

Drive Bays Internal

• 2x 3.5" or 4x 2.5" drive bays

System Cooling Fans

• 3x 40x28mm 4-pin PWM Cooling Fans

Power Supply 200W Low Noise AC-DC power supply with PFC AC Voltage

• 100 - 240V, 50-60Hz, 2.6 Amp Max

+5V

• 8.0 Amp (max.)

+5V standby

• 2.0 Amp (max.)

+12V

• 16 Amp (max.)

-12V

• 0.5 Amp (max.)

+3.3V

• 8.0 Amp (max.)

Certification
Gold Certified
System BIOS BIOS Type

• 8MB SPI Flash EEPROM with AMI BIOS

BIOS Features

• DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3

Operating Environment / Compliance RoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  10°C to 35°C (50°F to 95°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

See Parts List Parts List - (Items Included)
Part Number
Qty
Description
Motherboard / Chassis MBD-X11SSV-M4F
CSE-504-203B 1
1 Super X11SSV-M4F Motherboard
1U Chassis Cable 1 CBL-0082L 1 Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG Cable 2 CBL-SAST-0538 2 29cm 30AWG SATA S-RA cable,HF,RoHS/REACH,PBF FAN 1 FAN-0154L4 3 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH Parts MCP-120-00063-0N 1 Riser card bracket for slot-7 in SC504 Drive Tray(s) MCP-220-00051-0N 2 Single 2.5\" fixed HDD bracket for SC502, 503, 510, 512, 515U Parts MCP-260-00066-0B 1 1U I/O shield for X9SPV-M4 use in SC510, SC505, SC504 with EMI Gasket,RoHS/REACH,PBF Fan Holder MCP-320-81302-0B 3 Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only) Riser Card RSC-RR1U-E16 1 RSC-RR1U-E16 with PCI-E x16 output
