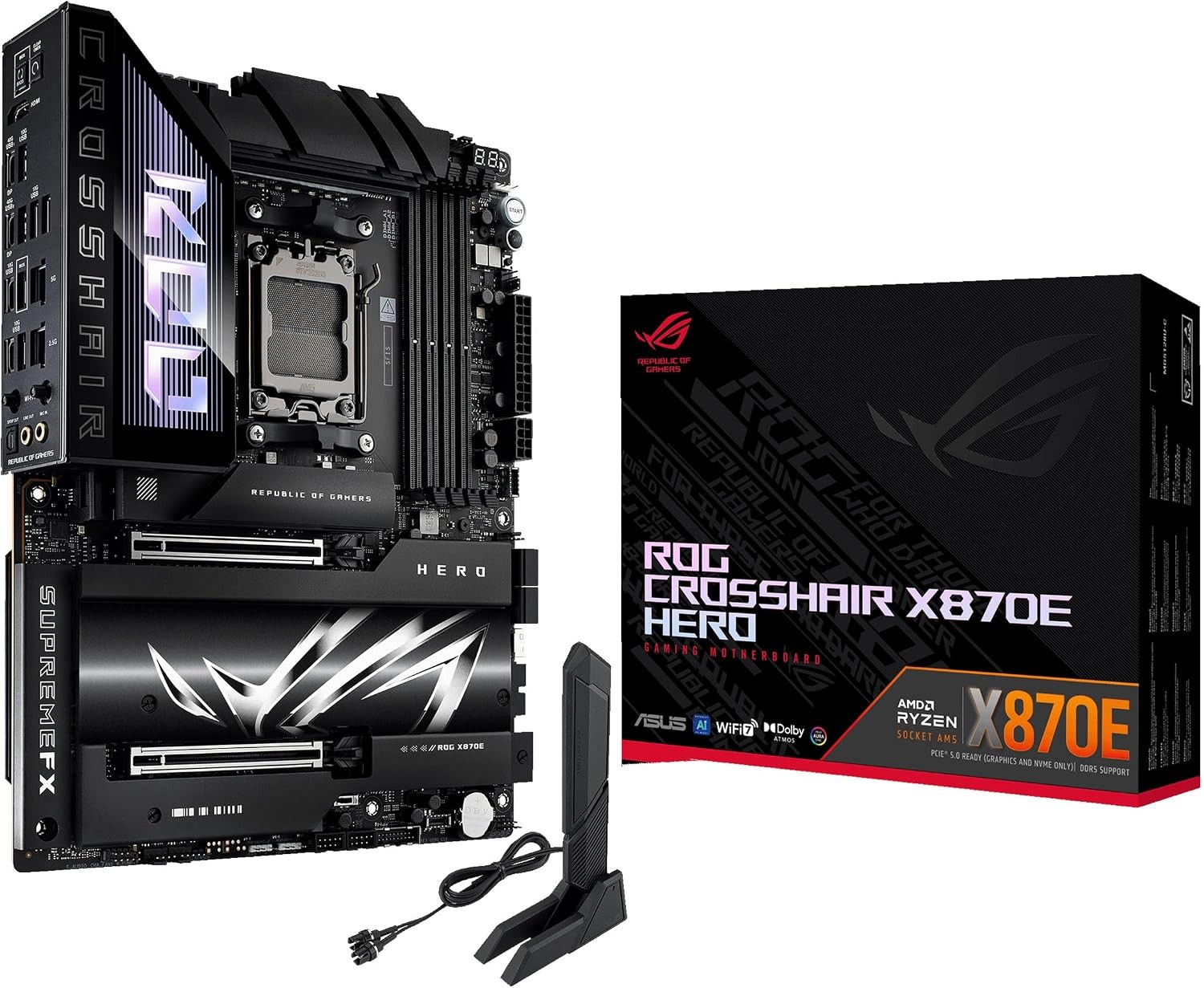

ASUS manufacturer refurbished unit, comes with SATA cable, I/O shield, and Wi-Fi antenna only, repacked with brown/white color ASUS service box.
ModelBrandASUSModelROG CROSSHAIR X870E HEROPart Number90MB1IE0-M0AAY0Supported CPUCPU Socket Type AM5CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 SeriesChipsetsChipset AMD X870EMemoryNumber of Memory Slots4x288pin (DDR5)Memory StandardDDR5 4400 / DDR5 4800Maximum Memory Supported256GBChannel Supported Dual ChannelMemory Performance ProfileAMD EXPOECC SupportedYesBuffer SupportedUn-bufferedMemory FeatureSupports up to
8200+MT/s(OC) with Ryzen 9000 Series Processors,
8600+MT/s(OC) with Ryzen 8000 Series Processors,
8000+MT/s(OC) with Ryzen 7000 Series Processors,
ECC and Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
NitroX Slot
ASUS Enhanced Memory Profile (AEMP)* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Expansion SlotsPCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8** or x8/x4/x4 modes***)
** When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will run x8.
***When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4.AMD Ryzen 8700/8600 Series Desktop Processors*
2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled)AMD Ryzen 8500/8300 Series Desktop Processors*
2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supportedStorage DevicesSerial ATA (SATA) 4 x SATA 6Gb/sM.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)AMD X870E Chipset
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)SlimSAS slot supports PCIe 4.0 x4 mode.
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU.
** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled.
***When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4, M.2_2 will be disabled.Onboard AudioAudio Chipset ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- ESS® ES9219 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.Audio Channels 7.1 ChannelsOnboard LANMax LAN Speed5Gbps + 2.5GbpsWireless LANWi-Fi 802.11 beBluetoothBluetooth 5.4Rear Panel PortsBack I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C)
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS buttonInternal I/O ConnectorsOnboard USB2 x USB 20Gbps connectors (support USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 portsOther ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ headerMiscellaneous
3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x LN2 Mode jumperPhysical SpecForm FactorATXDimensions (W x L)12.0" x 9.6"Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connectorSoftware FeatureBIOS Feature256Mb Flash ROM, UEFI AMI BIOSWindows 11SupportedFeaturesFeaturesExtreme OC Kit
- FlexKey button
- LN2 Mode
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black metallic capacitors
- MicroFine alloy choke
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
- Metal backplate
ASUS EZ DIY
- Backplate
- BIOS FlashBack button
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 header(s)
Front Panel USB 20Gbps with Quick Charge 4+ Support
- Support: up to 60W fast charging and USB Wattage Watcher*
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- Compatible with PD3.0 and PPS
* To support 60W, please install the power cable to the 6-pin PCIe power connector or else only 27W will be supported.
