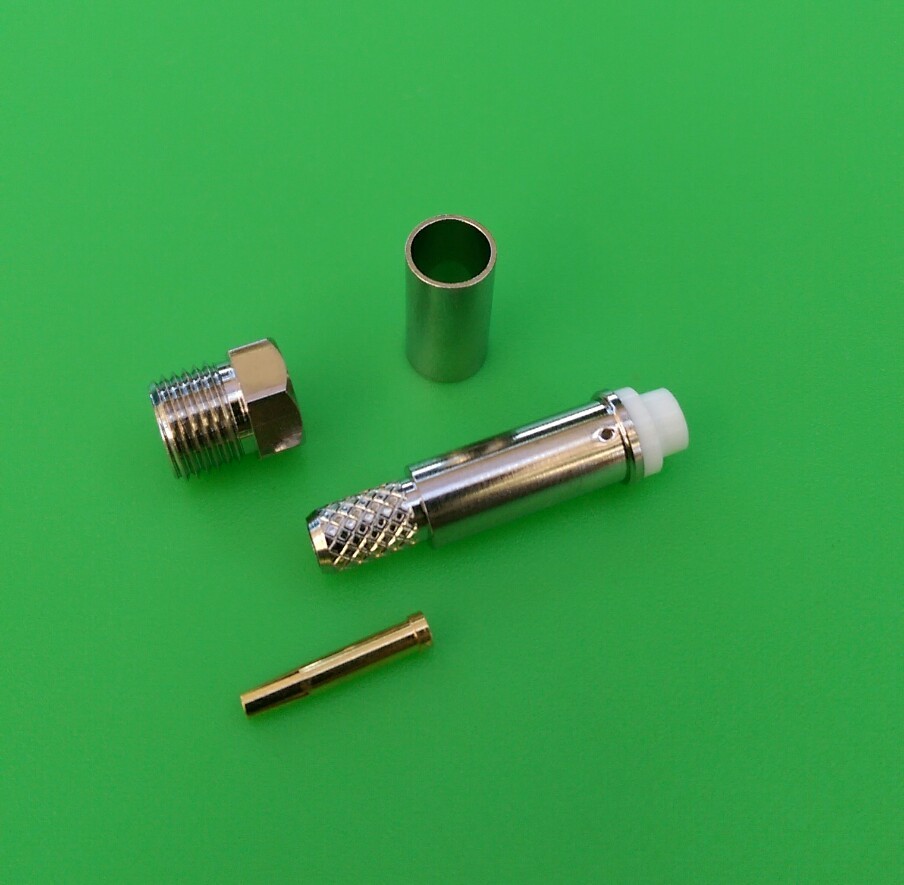

FME Female Crimp for RG58/RG142/LMR195 Cable (FE-001-1DGN-A)- 10 PACKS per order
- Made in Taiwan
- Quality Guarantee

SPECIFICATIONS:

--------------- ELECTRICAL ----------------

- Impedance: 50 OHM

- Frequency Range: DC-3GHz

- Working: 500 VRMS max.

- Dielectric Withstanding Voltage: 1000 VRMS min.

- VSWR

Straight: 1.3 max

Right Angle: 1/5 max

- Contact Resistance:

Center Contact: 10 Milliohms max.

Outer Contact: 5 Milliohms max.

- Insulator Resistance: 5000 Megaohms min.

--------------- MATERIAL ---------------

Parts Name Material Finish

- Body, Metal Parts Brass per QQ-B-626 Nickel 70 micro-inches

- Center Contacts Male: Brass per QQ-B-626 Gold Plated

Female: Brass per QQ-B-626

Phosphor Bronze per QQ-B-750

- Insulators POM, PTFE None

- Crimp Ferrules Annealed Brass Nickel 70 micro-inches
